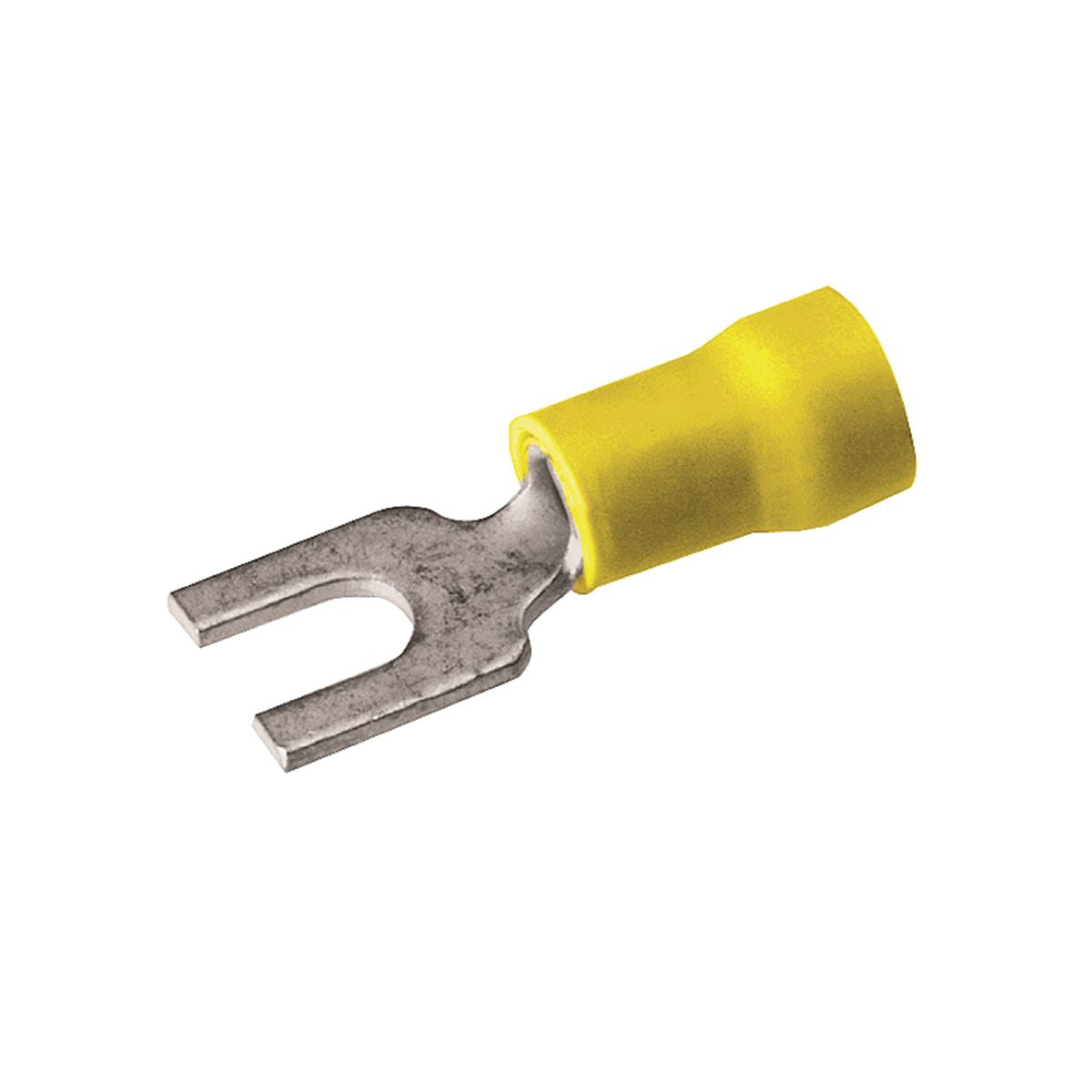

Burndy TP106F Copper Terminal Fork Tongue 12-10 AWG

Product Description

The BURNDY TP106F is a copper terminal with a fork tongue design, accommodating 12-10 AWG wires. It is vinyl insulated and tin plated for corrosion resistance. Designed for commercial and light duty industrial control and power circuit applications. The fork tongue allows for faster installation, only requiring the screw to be loosened for termination.

• Constructed of pure electrolytic copper for maximum conductivity.
• Features a long brazed seam barrel with deep V groove inner serrations for optimum conductivity and holding power.
• Electro-tin plating provides durable, long lasting corrosion resistance.

Product Highlights

The TP106F copper terminal ensures reliable connections with its fork tongue design, ideal for various industrial and commercial applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: TP106F
• Country of Origin: USA

Technical Specifications

• Applications: For Commercial And Light Duty Industrial Control And Power Circuit Applications
• Cable Size: 12 - 10 AWG
• Color Coding: Yellow
• Conductor Type: CU C Str-Size
• Connection Type: Fork Terminal
• Insulation Type: Vinyl
• Material: Copper
• Max Voltage: 600 V
• Plated?: Yes
• Plating Type: Tin
• Stud Size: 0.112-0.138 in
• Type: TP-F
• Voltage: 600 Volt
• Brand: Hubbell Incorporated
• Sub Brand: Burndy
• Height: 0.26 Inch
• Hole Size: 0.15 in
• Length: 0.95 Inch
• Overall Length: 0.95 in
• Width: 0.28 in
• Buy American Compliant: Y
• CSA: Yes
