Burndy T1012 Term Conn 12-10 AWG (Pack 100)

Product Description

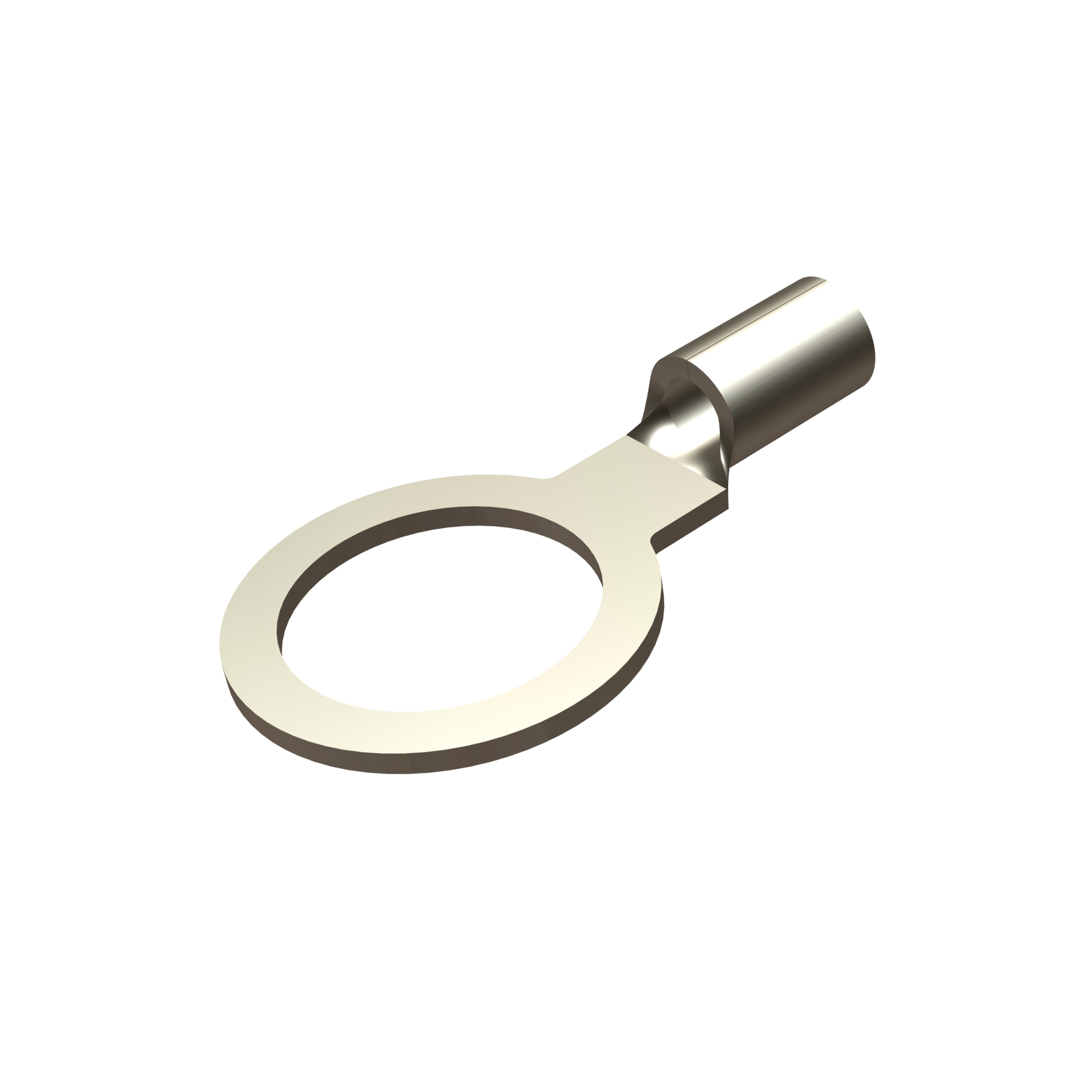

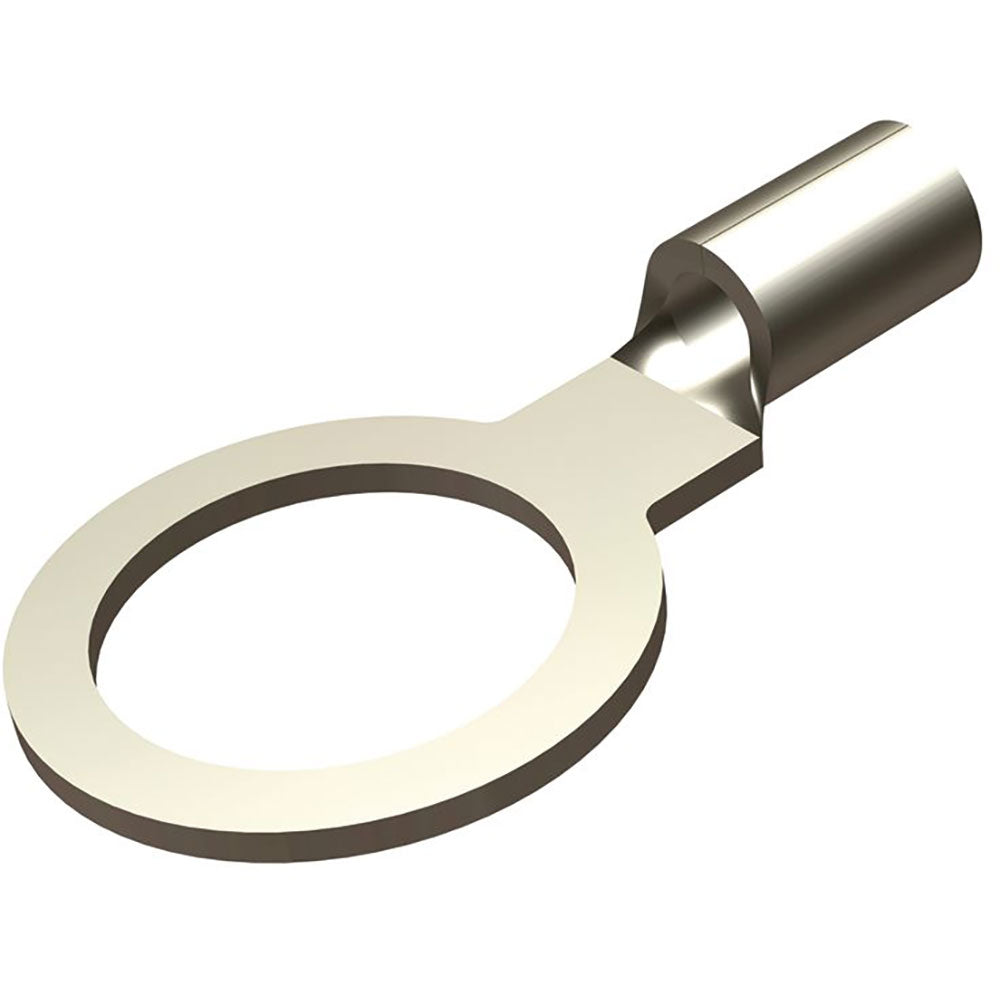

The Burndy T1012 is an uninsulated compression ring terminal for 12 to 10 AWG stranded conductors. It is constructed of electrolytic tin-plated copper with a long brazed seam barrel and deep V-groove inner serrations to secure crimped connections. The terminal measures 1.21 inch overall length with a 0.69 inch tongue width and 11/32 inch wire strip length, fits a 1/2 inch stud, and is UL 467 listed and RoHS compliant; rated 600 VAC, 105 deg C.

• Fits 12–10 AWG stranded conductors; stud size 1/2 inch
• Electrolytic tin-plated copper construction with long brazed seam barrel and deep V-groove serrations
• Overall length 1.21 in, tongue width 0.69 in, wire strip length 11/32 in; UL 467 and RoHS compliant

Product Highlights

Uninsulated compression ring terminal for 12–10 AWG, long brazed barrel, deep V-groove, 1/2 in stud, UL 467, RoHS

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: T1012
• Country of Origin: USA

Technical Specifications

• Brand: Burndy
• Manufacturer Part Number: T1012
• Connector Type: Ring terminal
• Type: Compression ring terminal (uninsulated)
• Conductor Size: 12 - 10 AWG
• Conductor Type: Stranded copper
• Material: Electrolytic tin-plated copper
• Finish: Tin plated
• Barrel Type: Long brazed seam barrel
• Inner Serrations: Deep V groove
• Tongue Type: Ring
• Stud Size: 1/2 inch
• Overall Length: 1.21 inch
• Tongue Width: 0.69 inch
• Wire Strip Length: 11/32 inch
• Insulation Type: Non-insulated
• Voltage Rating: 600 VAC
• Temperature Rating: 105 deg C
• Approvals: UL 467
• RoHS Compliant: Yes
• Application: Control wiring and other standard duty applications
• Country Of Origin: USA
• Standard Package: 100
• UPC: 781810525630
• Standards and Compliance: ARRA Compliant; BAA Compliant
