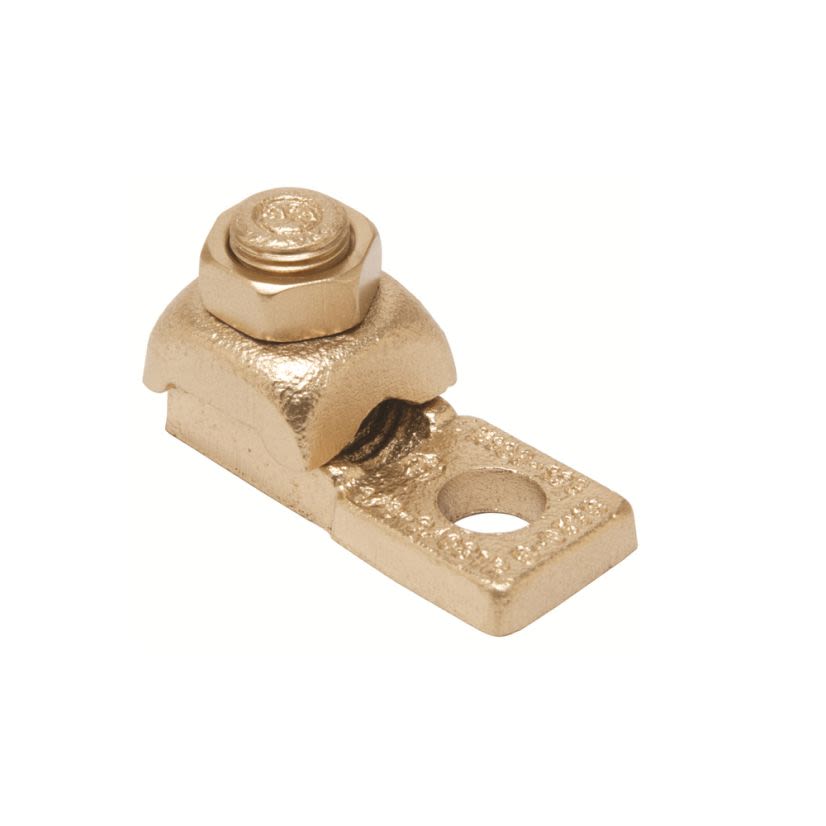

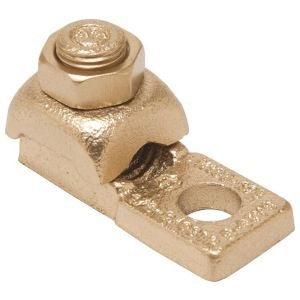

Burndy QA28B Qa28b, 1-hole, heavy duty copper terminal

Product Description

The BURNDY QA28B is a heavy-duty copper lug with a single hole and a 3/8" stud. This QIKLUG™ terminal features a compact size and is made from a high copper alloy, designed for joining cables to equipment pads or bars. It accommodates a wide range of cable sizes and allows for one-wrench installation.

• QIKLUG™ Terminals feature compact size
• High copper alloy terminal for joining cables to equipment pads or bars
• Each element accommodates a wide range of cable

Product Highlights

The BURNDY QA28B copper lug is ideal for creating reliable connections in electrical applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: QA28B
• Country of Origin: MX - Mexico

Technical Specifications

• Application: For Joining A Wide Range Of Cable To Equipment Pads Or Bar
• Catalog Number: QA28B
• Connector Type: Single Clamp
• EU RoHS Indicator: Yes
• Installation Torque Recommended in-lb: 250 LBS/in
• Material: Copper
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Number of Screws: 1
• Physical Attribute - Screw Type: Hexagonal Bolt
• Plated: N
• Plating Type: Unplated
• Sub Brand: QIKLUG
• Temperature Rating: 194 deg F
• Trade Name: QIKLUG
• Type: Bolted Lugs & Terminals
• UPC: 781810314760
• UPC 14 Digit GTIN: 00781810314760
• Dimension - Bolt Size fraction: 3/8
• Dimension - D inch: 1.06 in
• Dimension - Height fraction: 1-5/16
• Dimension - Height inch: 1.31 in
• Dimension - Height mm: 33.3 mm
• Dimension - Hole Size fraction: 13/32
• Dimension - Hole Size inch: 0.41 in
• Dimension - Hole Size mm: 10 mm
• Dimension - L Length Overall mm: 57 mm
• Dimension - Length Overall inch: 2.25 in
• Dimension - N inch: 0.53 in
• Dimension - Pad Width inch: 1.00 in
• Dimension - Stud Size inch: 3/8
• Rating - Minimum Voltage: 600
• Conductor - Copper Str Navy Size: 150 (61) Navy;200 (61) Navy
• Conductor - Copper Str Navy Size Range: 150 (61) Navy-200 (61) Navy
• Conductor - Copper Str Size: 3/0 AWG;4/0 AWG
• Conductor - Copper Str Size Range: 3/0 AWG-4/0 AWG
• Conductor Size: 3/0-4/0 AWG
• Conductor Type: CU C Str-Size CU C Str Navy-Size
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• UL Listed: Yes
• ECCN: EAR99
• Standard: UL 486A-486B
• Use With: Bars, Cable Equipment, Pads
• Torque: 250 in.-lb.
• Lug Wire Size: 150-200 kcmil
• Width: 1 in.
• Brand: BURNDY
• MPN: QA28B
• Country of Origin: United States
• Finish: Unplated
• Number of Bolt Holes: 1
• Series: QA Series
• Tongue Size: 1 in W x 1/4 in THK
• Tongue Type: Straight
• Type / Style: 1-Stage Heavy Duty Mechanical
