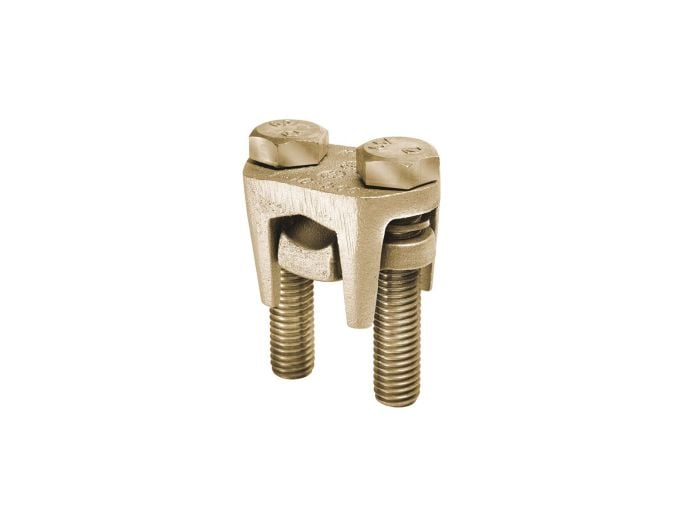

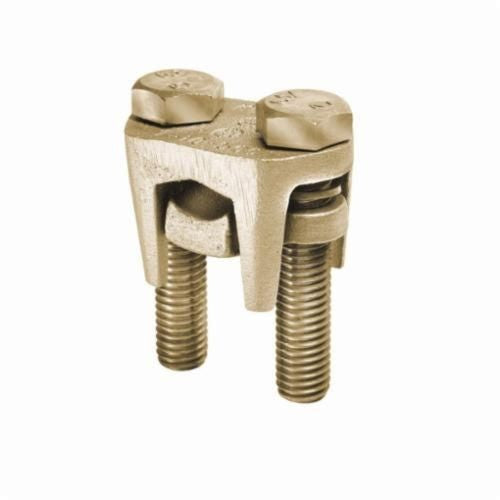

Burndy KVS34 Oklip 2-piece Service Connector

Product Description

The BURNDY KVS34 OKLIP is a compact, two-piece, high-strength, high-copper alloy connector recommended for heavy-duty connections. Neoprene rings hold DURIUM bolts in place during installation, and it installs with an ordinary wrench. It is UL467 Listed for direct burial applications in earth or concrete.

• Compact, Two-Piece, High Strength, High Copper Alloy BURNDY OKLIP Recommended For Heavy Duty Connections
• Neoprene Rings Hold DURIUM Bolts In Place During Installation
• Installed With Ordinary Wrench

Product Highlights

The BURNDY KVS34 OKLIP is ideal for copper and copperweld wires, ensuring top performance in extreme conditions.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KVS34

Technical Specifications

• Application: For Copper, Copperweld
• Catalog Number: KVS34
• EU RoHS Indicator: Yes
• Installation Torque Recommended in-lb: 375 LBS/in
• Material: Copper
• Plated: N
• Plating Type: Unplated
• Sub Brand: OKLIP
• Trade Name: OKLIP
• Type: KVS, Compact
• UPC: 781810063200
• UPC 14 Digit GTIN: 00781810063200
• Dimension - Height inch: 2.65 in
• Dimension - Stud Size inch: 1/2 in
• Dimension - Width inch: 2.20 in
• Conductor - Copper Str Run Range: 400 kcmil - 500 kcmil
• Conductor - Copper Str Tap Range: 10 str. - 500 kcmil
• Conductor Type: CU C Str-Run CU C Str-Tap CU Weld C Solid-Run CU Weld C Solid-Tap
• Industry Standard(s): UL486C
• Standards - Industry Standards Met: UL486C
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Conductor Size: 6/19 AWG to 500 kcmil
• Installation: Ordinary Wrench
• Series: KVS
• Manufacturer Part Number: KVS34
• Manufacturer: Burndy
• Product Series: KVS
• Family Series: Burndy Connectors, KVS Series
• Description: 500R-500T CU 2BLT CONN
• Style: Dual Bolt
• Composition: Copper
• Cond. AWG Main: 400-500 kcmil
• Cond. AWG Tap: 10 AWG-500 kcmil
• Approvals: CSA, UL
• Net Weight: 0.72 lbs
• Gross Weight: 0.72 lbs
