Burndy KS44 Copper Split Bolt, Cu: 300-1000 kcmil (Run & Tap)

Product Description

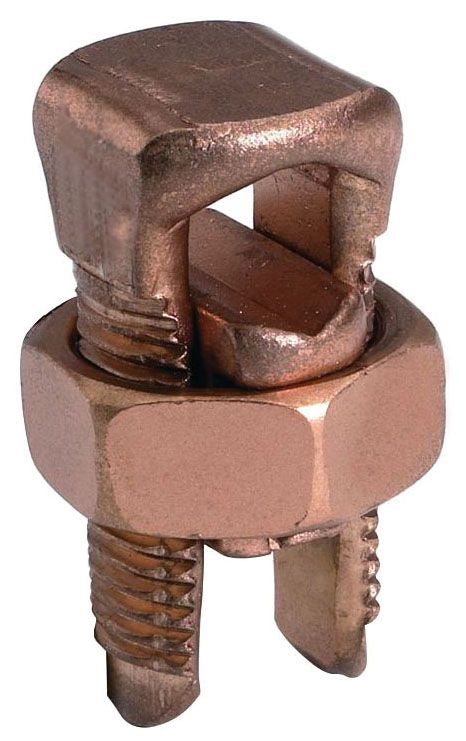

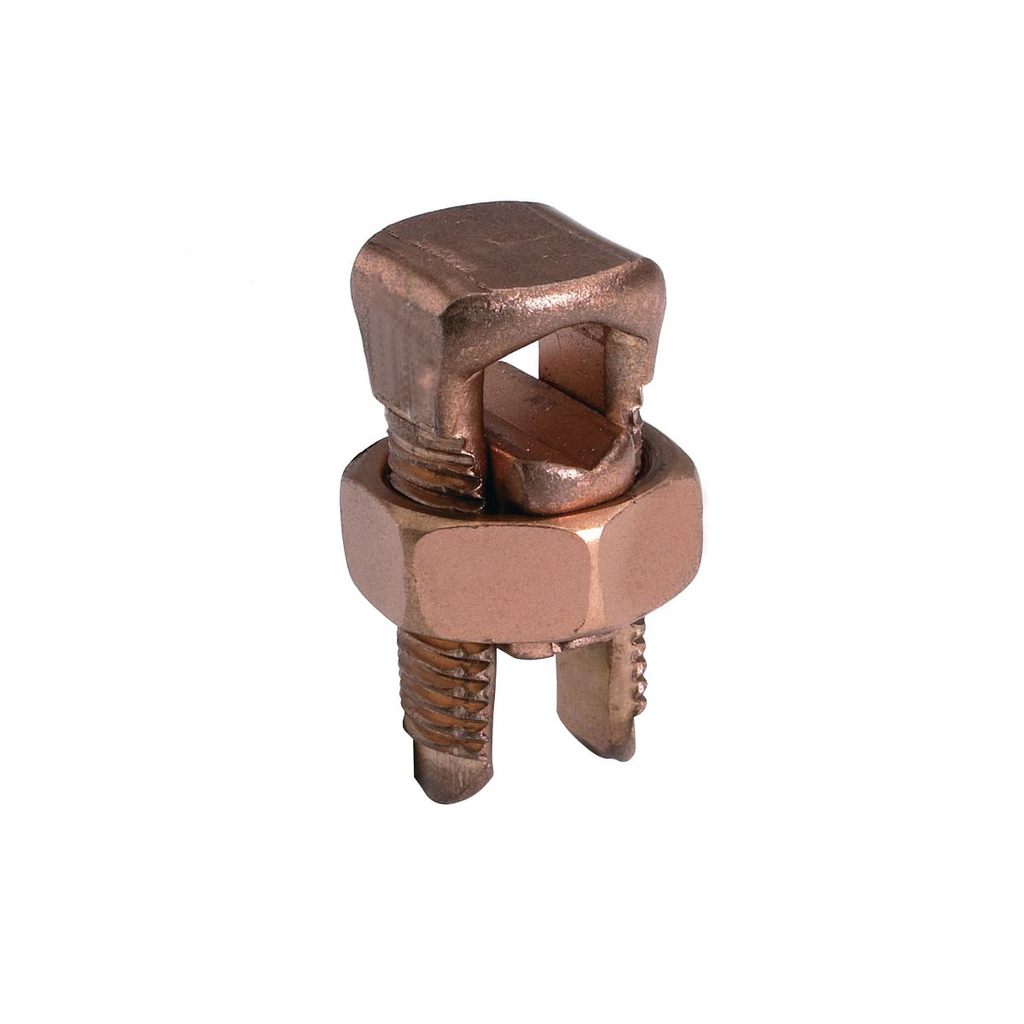

The BURNDY KS44 is a copper split bolt designed for copper conductors ranging from 300-1000 kcmil for both run and tap connections. This split bolt connector is constructed from copper alloy and suitable for installation purposes. It is UL and CSA approved and RoHS compatible.

• Conductor Material: Copper
• Minimum Run Conductor Size: 300 KCMIL Stranded (Copper)
• Maximum Run Conductor Size: 1000 KCMIL Stranded (Copper)

Product Highlights

The KS44 split bolt ensures secure connections for a range of copper conductor sizes. Its robust construction and compliance with industry standards make it a reliable choice for electrical applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KS44
• Country of Origin: USA

Technical Specifications

• Minimum Run Conductor Size: 300 KCMIL Stranded (Copper)
• Maximum Run Conductor Size: 1000 KCMIL Stranded (Copper)
• Minimum Tap Conductor Size: 4/0 AWG Stranded (Copper)
• Maximum Tap Conductor Size: 1000 KCMIL (Copper)
• Material: Copper Alloy
• Approval: UL, CSA
• RoHS Compatible: Yes
• Installation Torque: 1100 Lb
• Country Of Origin: USA
