Burndy KLU25 Copper Terminal Offset Tongue 1-Hole

Product Description

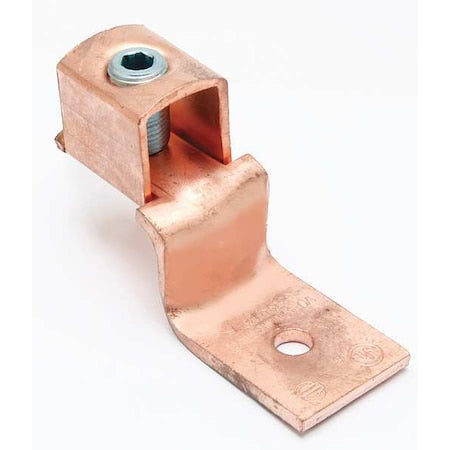

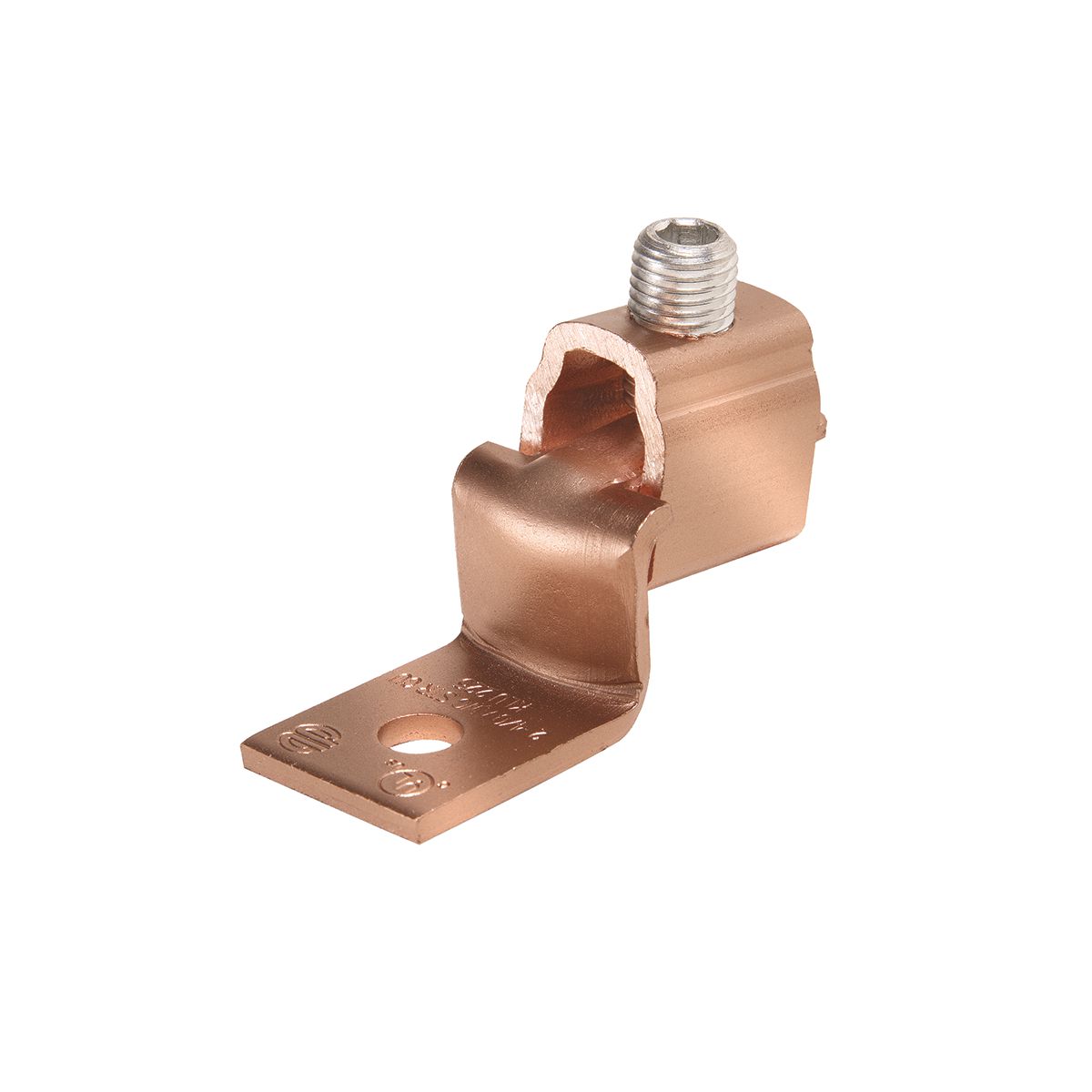

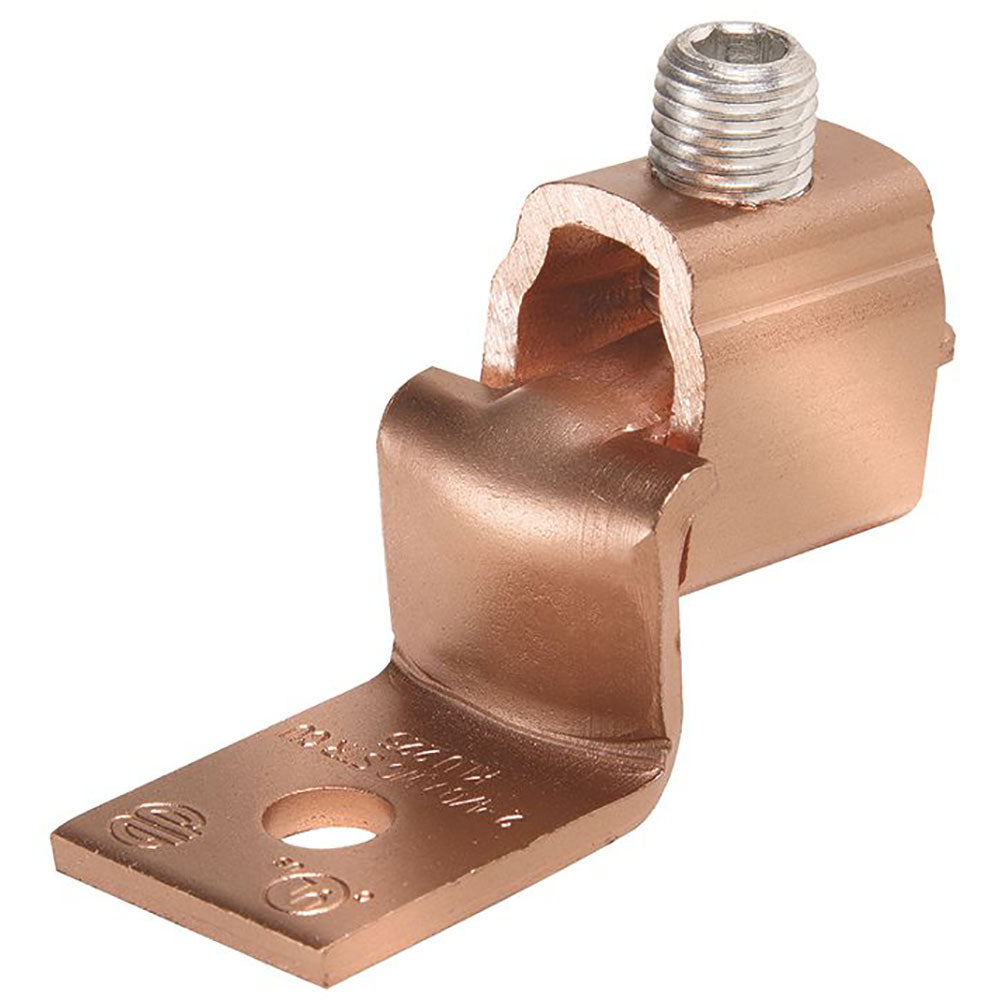

Burndy KLU25 is a copper offset-tongue terminal (Scrulug) for terminating 14-10 AWG solid copper conductors to equipment pads or bars. It features a pressure-bar connection, unplated high-conductivity copper alloy construction, and a single mounting hole for a #6 stud. The lug measures approximately 1.02 in overall length with a 0.31 in pad width and recommended installation torque of 20 in-lb.

• Accepts 14-10 AWG solid copper conductors; single-conductor, single-hole termination for #6 stud
• Copper alloy, unplated construction with pressure-bar connection and slotted screw compatibility
• Overall length 1.02 in, pad width 0.31 in, pad thickness 0.07 in, strip length 7/16 in, installation torque 20 in-lb

Product Highlights

Offset tongue copper terminal, single-hole for #6 stud, 14-10 AWG solid conductors, 1.02 in overall length, 20 in-lb torque

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KLU25
• Country of Origin: India

Technical Specifications

• Brand: Burndy
• Manufacturer Part Number: KLU25
• Product Name: Copper terminal, offset tongue, 1-hole
• Series / Sub Brand: Scrulug
• Material: Copper alloy
• Finish: Unplated (copper)
• Connection Type: Pressure bar
• Screw Type: Slotted (Robertson compatible)
• Number of Holes: 1
• Number of Conductors: 1
• Conductor Size: 14-10 AWG (solid)
• Conductor Type: Copper (solid)
• Stud Size: #6
• Bolt / Screw Size: 8-32 (No. 8)
• Hole Diameter: 0.14 in
• Overall Length: 1.02 in
• Pad Width: 0.31 in
• Pad Thickness: 0.07 in
• Tongue Width: 0.31 in
• Tongue Thickness: 0.07 in
• Strip Length: 7/16 in
• Installation Torque: 20 in-lb
• Certifications / Standards: cULus listed; UL 467
• RoHS Compliance: Compatible
• Maximum Voltage: 600 V
• Maximum Operating Temperature: 194 F
• Country of Origin: India
• UPC / GTIN: 781810351369
