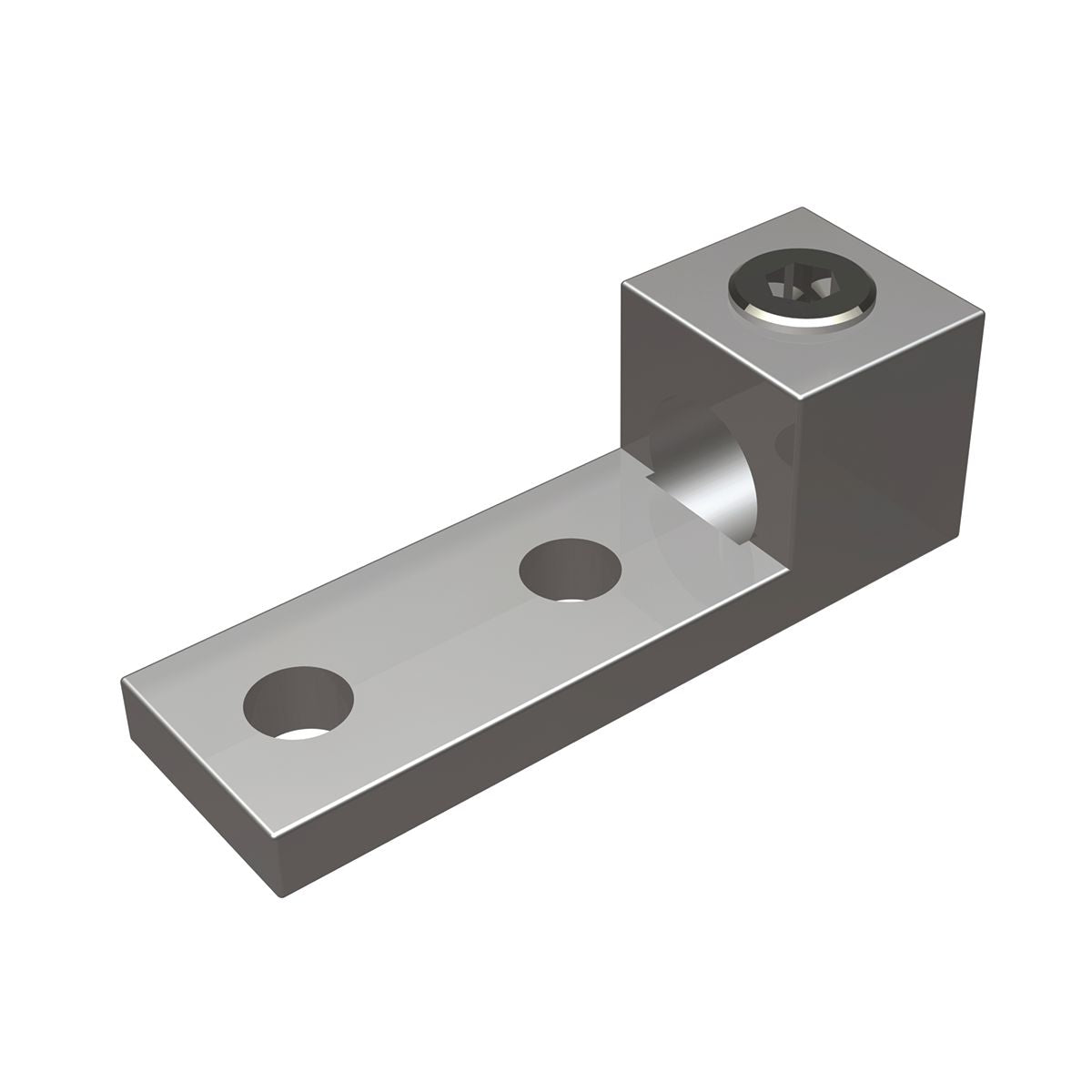

Burndy KA44U2N universal terminal 500-1000 kcmil

Product Description

The BURNDY KA44U2N is an aluminum universal terminal with 2 holes, designed for conductors ranging from 500 to 1000 kcmil. Constructed from high-strength extruded aluminum alloy and electro tin-plated for low contact resistance. It is dual-rated for use with both aluminum and copper conductors and is rated to 35kV.

• For Aluminum and Copper Conductors
• High strength extruded aluminum alloy
• Electro tin-plated for low contact resistance

Product Highlights

This universal terminal is suitable for a variety of applications requiring a reliable and durable connection for large conductors.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: KA44U2N
• Country of Origin: US

Technical Specifications

• Application: For Aluminum and Copper Conductors
• Catalog Number: KA44U2N
• Connector Type: Terminal
• EU RoHS Indicator: Yes
• Installation Torque Recommended in-lb: 550 LBS/in
• Material: Aluminum
• Material - Hardware: Aluminum
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Number of Screws: 1
• Physical Attribute - Screw Type: Allen
• Plated: Y
• Plating Type: Tin
• Sub Brand: UNIVERSAL TERM
• Type: Bolted Lugs & Terminals
• UPC: 781810370506
• UPC 14 Digit GTIN: 00781810370506
• Dimension - Bolt Hole Size inch: 0.50 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - D inch: 3.03 in
• Dimension - Height inch: 1.95 in
• Dimension - Height mm: 49.5 mm
• Dimension - Hole Size inch: 0.56 in
• Dimension - Hole Size mm: 14 mm
• Dimension - L Length Overall mm: 121 mm
• Dimension - Length Overall inch: 4.75 in
• Dimension - N inch: 0.63 in
• Dimension - Pad Width inch: 1.77 in
• Dimension - Stud Size inch: 1/2
• Dimension - Width inch: 1.75 in
• Dimension - Width mm: 44 mm
• Conductor - AL Str Size: 500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil;954 kcmil;1000 kcmil
• Conductor - AL Str Size Range: 500 kcmil-1000 kcmil
• Conductor - Copper Str Size: 500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil
• Conductor - Copper Str Size Range: 500 kcmil-1000 kcmil
• Conductor Size: 500 to 1000 kcmil
• Conductor Type: CU C Str-Size AL C Str-Size
• Number of Conductors: 1
• Buy America(n) Qualified: BABA Compliant (All status valid till December 2026)
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Listed Direct Burial: No
• Certification - UL Recognized: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• UL Listed: Yes
• Mounting: 2-Hole
• Standards: California Proposition 65
• Allowable Gauge Range: 600 - 1000
• Stud Size: 1/2 in
• ARRA Compliant: C
• Buy American Compliant: C
• Country of Origin: US
• Number Of Conductors|Ports [Main|Primary]: 1
• Series: KA-U
• Standard: UL 486A-486B
• Tongue Size: 1.77 in W x 0.5 in THK
• Tongue Type: Straight
• UNSPSC: 39121408
• UPC 11: 78181037050
• UPC 12: 781810370506
• Number of Bolt Holes: 2
• Bolt Hole Size: 0.50 in
• Connection Type: Terminal
• Direct Burial?: No
• Plated?: Yes
