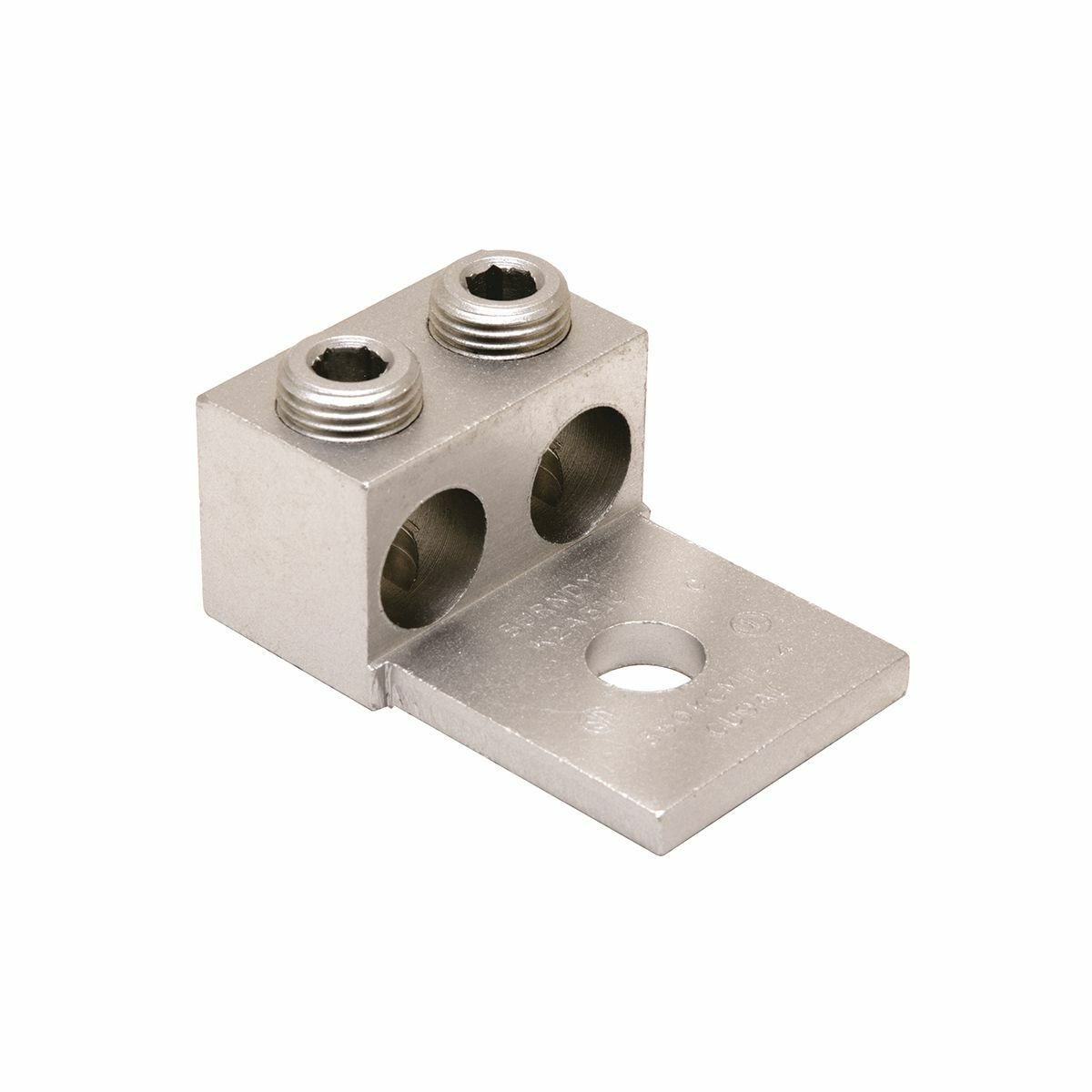

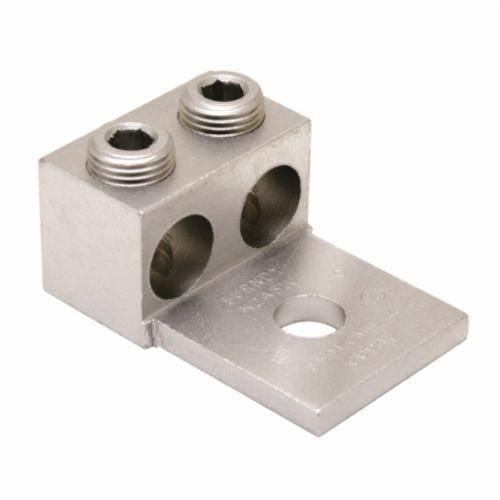

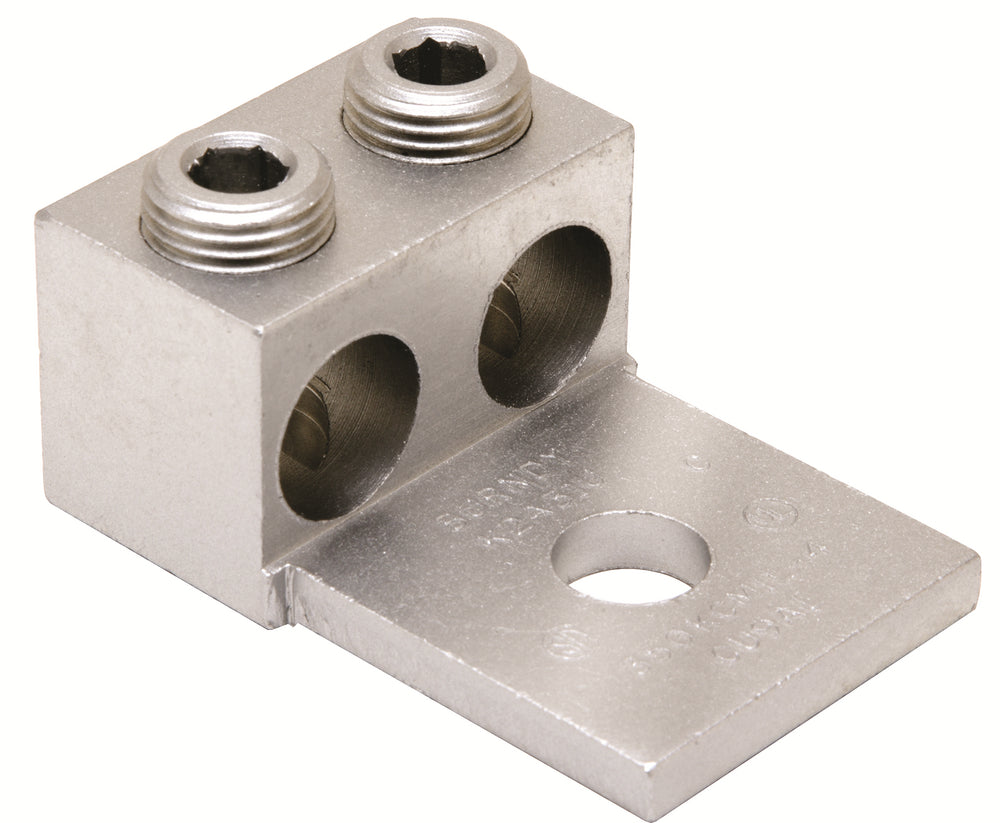

Burndy K2A40U Aluminum Universal Terminal 300-800 kcmil

Product Description

The BURNDY K2A40U is an aluminum universal terminal designed for connecting aluminum and copper conductors. This terminal accommodates 300-800 kcmil conductors and features a 5/8" stud. It is electro tin-plated to provide low contact resistance and is suitable for central office and wireless communication markets.

• Constructed from high-strength extruded aluminum alloy.
• Electro tin-plated for low contact resistance.
• Suitable for aluminum and copper conductors.

Product Highlights

This universal terminal is ideal for various applications requiring reliable connections for aluminum and copper conductors.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: K2A40U
• Country of Origin: USA

Technical Specifications

• Catalog Number: K2A40U
• Type: K2A-U, Universal, Dual-Rated
• Brand: Burndy
• Width: 3.2 in
• Finish: Electro-Tin Plated
• Height: 1.95 Inch
• Length: 3.38 Inch
• Material: Aluminum
• Bolt Size: 5/8 in
• Hole Size: 0.66 in
• Pad Width: 3.20 in
• Sub Brand: Burndy
• Product UPC: 78181060025
• 12-Digit UPC: 781810600252
• Applications: For Aluminum And Copper Conductors
• Plating Type: Tinned
• Bolt Hole Size: 0.63 in
• Conductor Size: 300-800 kcmil
• Conductor Type: Aluminum and Copper
• Direct Burial?: No
• Overall Length: 3.38 in
• Connection Type: Parallel Set-Screw
• Number of Holes: 1 Hole
• Temperature Rating: 194
• Number of Conductors: 2
• Standard: UL 486A-486B
• GTIN: 00781810600252
• Item Type: Bolted Lugs & Terminals
• ECCN: EAR99
• UNSPSC: 39121408
• Lug Wire Size: 300-800 kcmil
• No. of Wires: 2-Wire
• Stud Size: 5/8 in.
• Minimum Conductor Size: 300 KCMIL Stranded
• Maximum Conductor Size: 800 KCMIL Stranded
• Conductor Material: Aluminum/Copper
• RoHS Compliant: True
• Installation Torque: 500 lb-Inch
• Rating: Al/Cu Rated
• Plating: Tin Plated
• Dimension - Width mm: 81 mm
• Dimension - Height mm: 49.5 mm
• Dimension - Hole Size mm: 17 mm
• Dimension - Pad Width inch: 3.20 in
• Dimension - Screw Size inch: 3/8
• Installation Torque Recommende: 550 in-lbs
• Number of Conductors/Ports (Ma: 2
• Physical Attribute - Screw Typ: Slot
• UL Listed: Yes
• Certification - CSA Approved: Yes
• Series: K2A-U
• Voltage Rating: 600 Volt
• Tongue Size: 1.66 Inch Length x 0.88 Inch Width x 0.5 Inch Thickness
• Stud Hole Spacing: 0.63
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• Dimension - D inch: 1.66 in
• Dimension - N inch: 0.88 in
• Dimension - Stud Size inch: 5/8 in
• Conductor - AL Str Size Range: 300-800 kcmil
• Conductor - Copper Str Size Range: 300-800 kcmil
• Connector Type: Parallel Set-Screw
• Physical Attribute - Number of Holes: 1
• Hardware Type: 3/8 UNC Slotted Set Screw
• Dimension - Bolt Size fraction: 5/8
• Dimension - Width fraction: 3-19/100 in
• Dimension - L Length Overall mm: 86 mm
• Item Name: Universal Terminal
• Tongue Style: Straight
• Number of Bolt Holes: 1
