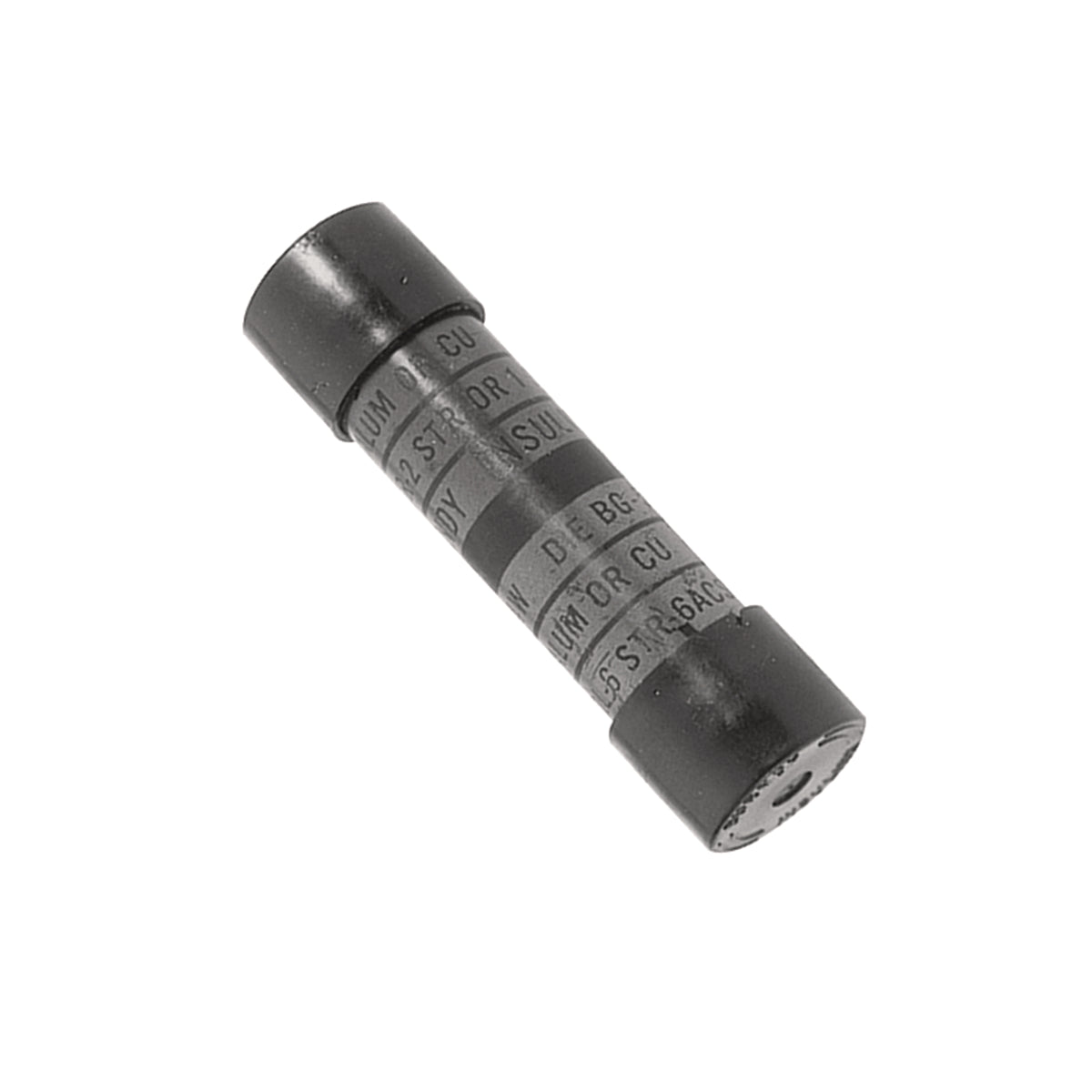

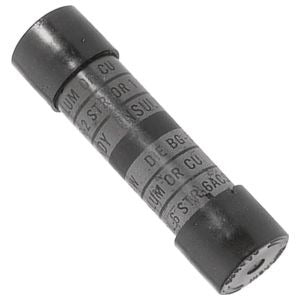

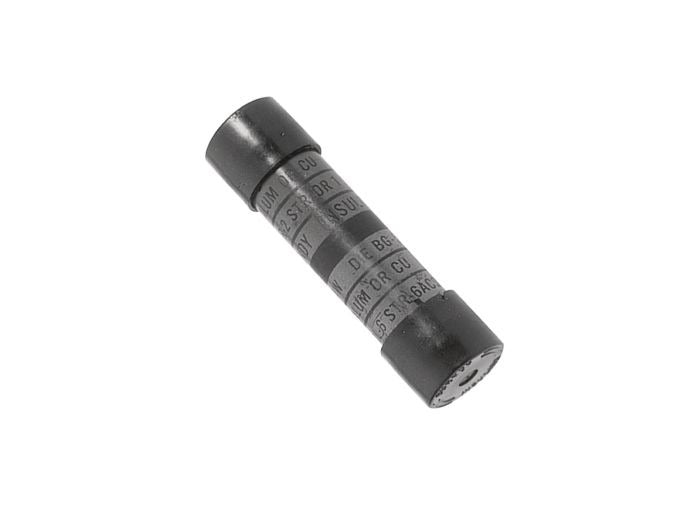

Burndy ES25A25A Insulated AL Service Entrance Compression Sleeve 1/0 AWG

Brand: BURNDY
SKU: ES25A25A
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BURNDY ES25A25A is an insulated aluminum service entrance compression sleeve designed for combinations of insulated copper, aluminum, and ACSR conductors. It is pre-filled with PENETROX joint compound and features a nylon jacket for electrical insulation and weather protection. This sleeve is suitable for overhead distribution applications.

  • Pre-Insulated Service Entrance Compression Connector Installed With OH25, OUR840 And MD6 HYTOOL As Well As Y35 And Y750 HYPRESS Tools
  • Polyethylene Caps Prevent Dirt From Accumulating In Barrel
  • Grip Cable For Easy Two-Hand Installation, And Seal Out Moisture

Product Highlights

Insulated compression sleeve for use with copper, aluminum, and ACSR conductors in overhead distribution. Features include pre-filled joint compound and nylon insulation.

Product Information

Standard Information

  • Brand: BURNDY
  • Manufacturer Part Number: ES25A25A
  • Country of Origin: United States
Technical Specifications
Catalog Number
ES25A25A
Brand
Burndy
Manufacturer
Burndy
CSA
No
GTiN
00781810013939
Size
2-3/4 IN Length X 3/4 IN Outer-Diameter X 5/8 IN Outer-Diameter (Without Cap)
Type
Insulated Service Entrance Connectors
Width
0.752 in
Height
3/4 Inch
Length
2-3/4 Inch
Plated
Yes
Material
Aluminum
Sub Brand
Insulink™
Used With
Al/Stranded-Cables
Insulated
Yes
Product UPC
78181001393
12-Digit UPC
781810013939
Applications
Insulated Combinations Of Copper, Aluminum, ACSR Compressed Conductors and in Overhead Distribution
Plating Type
Unplated
Conductor Size
1/0 AWG
Overall Length
2.75 in
Insulation Type
Nylon
Country of Origin
USA
Buy American Compliant
Y
Made in USA
Yes
Application
For Insulated Combinations Of Copper, Aluminum, ACSR Compressed Conductors And In Overhead Distribution
Die Index
BG or 5/8
EU RoHS Indicator
Yes
Prefilled Oxide Inhibitor
Y
Trade Name
INSULINK™
UPC
781810013939
Dimension - L Length Overall mm
70 mm
Dimension - Length Overall inch
2.75 in
Dimension - Outside Diameter inch
.75 in
Conductor - AL Str Size A
1/0 AWG
Conductor - AL Str Size A Range
1/0 AWG
Conductor - AL Str Size B
1/0 AWG
Conductor - AL Str Size B Range
1/0 AWG
Conductor - Copper Str Size A
1/0
Conductor - Copper Str Size A Range
1/0
Conductor - Copper Str Size B
1/0
Conductor - Copper Str Size B Range
1/0
UL Listed
No
ECCN
EAR99
UNSPSC
39121449
Terminal Type
Butt Connector
Wire Size Range
Side A 1/0 AWG, Side B 1/0 AWG
