Burndy BITO-2/0 Bur Bito2/0 2/0-14, 2 Side, Unitap

Product Description

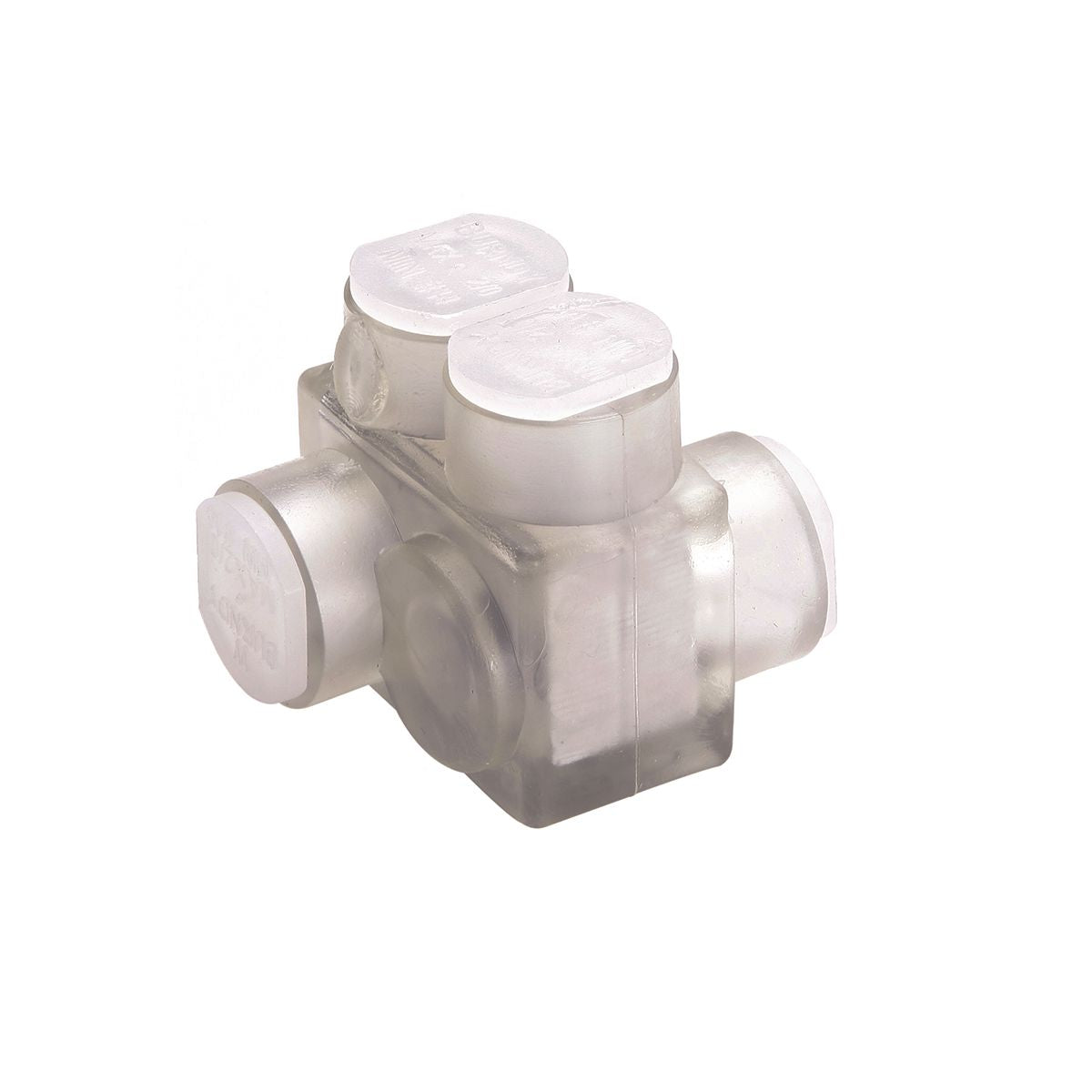

The BURNDY BITO-2/0 Bur Bito2/0 is a multiple tap connector with a voltage rating of 600 V. It features 2 ports and a 2-side entry cable configuration. Constructed from clear plastisol coated 6061-T6 aluminum, it accommodates conductor sizes from 8 AWG (Aluminum) to 2/0 AWG (Aluminum) and 14 AWG Stranded (Copper) to 2/0 AWG Stranded (Copper).

• Multiple Tap Connector
• Voltage Rating 600 V
• UL 486B, CSA Approval

Product Highlights

This multiple tap connector is suitable for use with aluminum or copper conductors and is UL 486B and CSA approved.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: BITO-2/0
• Country of Origin: USA

Technical Specifications

• Voltage Rating: 600 VAC
• Number of Ports: 2
• Cable Entry: 2 Side Entry
• Conductor Material: Aluminum/Copper
• Minimum Conductor Size: 8 AWG (Aluminum), 14 AWG Stranded (Copper)
• Maximum Conductor Size: 2/0 AWG (Aluminum), 2/0 AWG Stranded (Copper)
• Body Material: Clear Plastisol Coated 6061-T6 Aluminum
• Approval: UL 486B, CSA
• RoHS Compliant: True
• Temperature Rating: 135°C
• Hex Key Size: 3/16 Inch
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Catalog Number: BITO2/0
• Connector Type: Multi Tap
• EU RoHS Indicator: Yes
• Insulation: Y
• Insulation Type: Plastisol
• Material: Aluminum
• Material - Hardware: Aluminum
• Physical Attribute - Number of Screws: 2
• Physical Attribute - Screw Type: Allen
• Plated: Y
• Plating Type: Tin Plated
• Sub Brand: UNITAP
• Trade Name: UNITAP™
• Type: BIT
• UPC: 781810133552
• UPC 14 Digit GTIN: 00781810133552
• Operating Voltage: 600 V
• Voltage - Maximum: 600 V
• Conductor - AL Str Size Range: 14 AWG - 2/0 AWG
• Conductor - Copper Str Size Range: 14 AWG - 2/0 AWG
• Conductor Size: 14-2/0 AWG
• Conductor Type: AL C Str-Size CU C Str-Size CU C Flex-Size
• Certification - CSA Approved: Yes
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Direct Burial?: No
• Number of Screws: 2
• Port Number: 2
• Stud Size: 3/16 in
• Voltage: 600 Volt
• Brand: Burndy
• Series: BITO
• Standard: UL 486A-486B
• UNSPSC: 39121427
• Manufacturer: BURNDY®
• Color Code: Black
