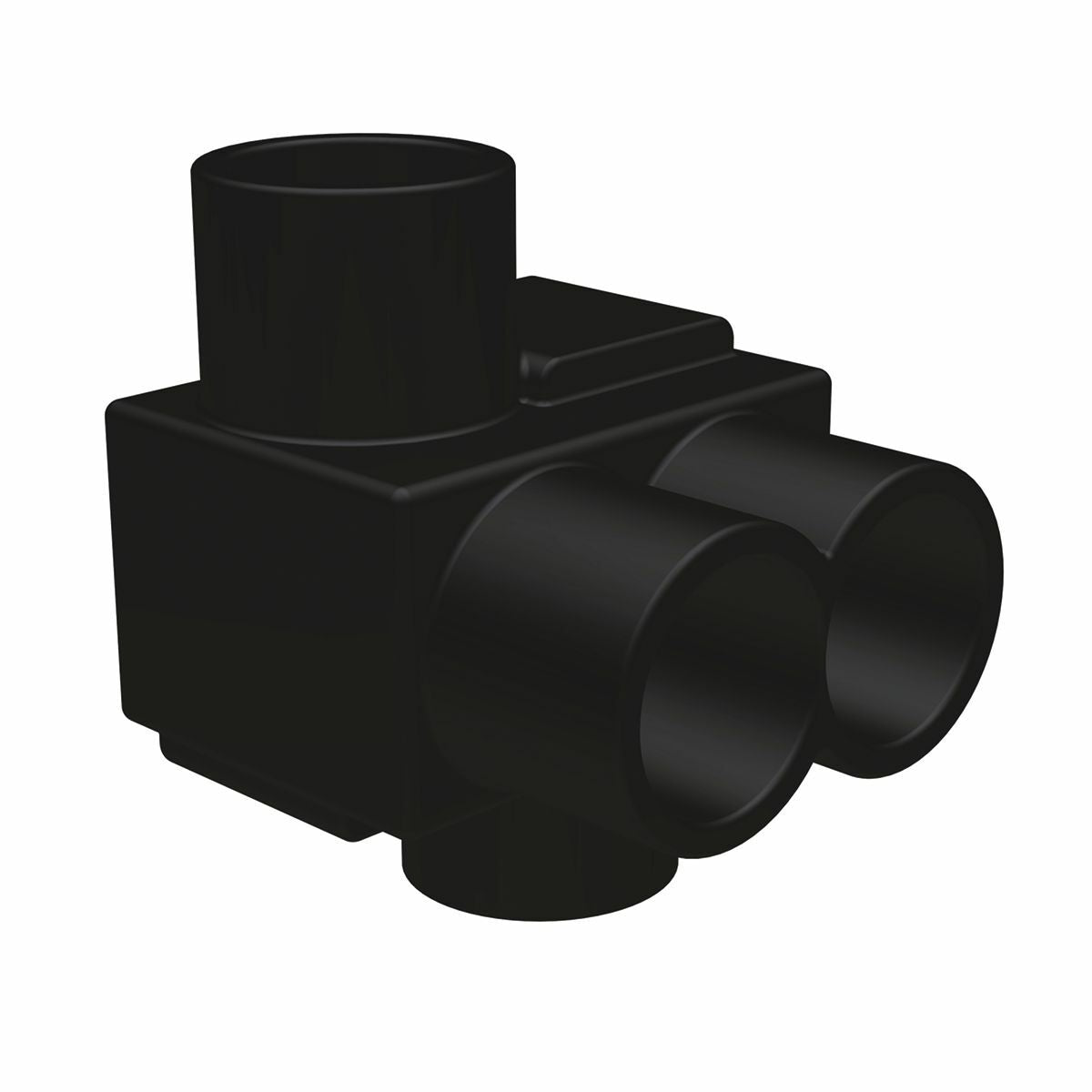

Burndy 1PLO2/02 Al Distribution Tap Connectors UV Black Plastisol Covered 2 Ports Replacement MPN

Product Description

The Burndy 1PLO2/02 Al Distribution Tap Connector is designed for securing connections in electrical work. Its UV black plastisol cover protects against weather damage, making it suitable for both indoor and outdoor applications. This connector features two ports and an offset entry design, facilitating various installation requirements in low-voltage settings. The rated voltage capacity is six hundred volts, and it offers a torque strength of one hundred twenty inch-pounds.

• Type: Al Distribution Tap Connector
• Voltage: 600 V
• Connector Size Range: 14 - 2/0 AWG

Product Highlights

This connector provides reliable connections with the added benefit of moisture inhibition due to its oxide inhibitor. The design enhances operational efficiency by eliminating the need for additional taping.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: 1PLO2/02
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Material: Aluminum
• Made in USA: Yes
• Special Features: UV Rated Plastisol Cover, Oxide Inhibitor Installed, UL486B Listed, Torque: 120 IN-LB, Number Of Ports: 2
• Country of Origin: United States
• Temperature Rating: 194 Deg F
• Cross Reference Products: ITO-1/0
