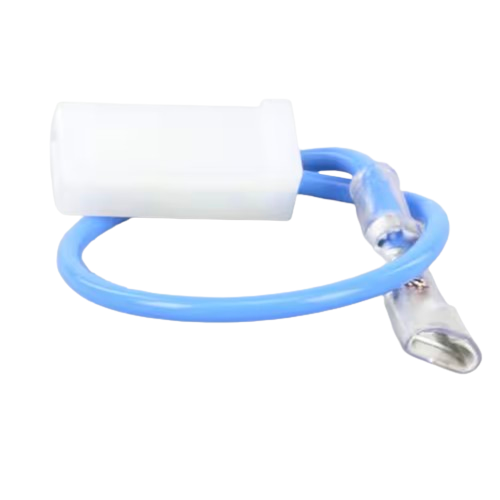

Bunn 23768.0000 Lead Assembly, Electrical Blue, Thermostat to Limit

Product Description

The BUNN 23768.0000 Lead Assembly is a genuine OEM electrical lead designed to connect the thermostat to the limit thermostat in compatible BUNN commercial coffee brewing equipment. This blue electrical lead provides the required connection between the temperature control components within the brewer's tank and heating system.

The 23768.0000 is identified in BUNN parts documentation as "Lead, Electrical BLU (Thermostat to Limit)" and is used as part of the tank and component assembly on compatible BUNN brewers. The lead is supplied as an individual replacement component for equipment requiring this specific BUNN part number.

Product Highlights

• Genuine BUNN OEM replacement component

• Electrical lead for thermostat-to-limit connection

• Blue lead assembly

• Designed for compatible BUNN commercial coffee brewers

• Used within the tank and heating component assembly

• Replacement part for service and maintenance applications

Compatibility

Designed for compatible BUNN commercial coffee brewers that specify part number 23768.0000. BUNN parts documentation identifies this lead for C, CT, CW, CWTF, CWT-CS, and CWTF-CS series equipment, with compatibility varying by specific model and production configuration.

Compatible applications include select CW15, CWTF, and VP17 series brewers. Verify the brewer model, production configuration, and existing part number before ordering to ensure proper fit.

Installation Notes

Installation should be performed by a qualified service technician familiar with commercial coffee brewing equipment and electrical systems. Disconnect and lock out electrical power to the brewer before servicing or replacing the electrical lead. Allow the tank and heating components to cool completely before accessing the thermostat and limit thermostat connections. Replace the lead according to the equipment manufacturer's service instructions and wiring diagram, ensuring all electrical connections are secure before restoring power.

Product Information

Standard Information

• Brand: BUNN

• Manufacturer: BUNN

• MPN: 23768.0000

• Product Type: Lead Assembly

• Component: Electrical Lead

• Color: Blue

• Connection: Thermostat to Limit Thermostat

• Application: Commercial Coffee Brewer

Technical Specifications

Part Number:

23768.0000

Lead Type:

Electrical

Lead Color:

Blue

Connection:

Thermostat to Limit

Assembly Location:

Tank and Components

Component Quantity:

1
