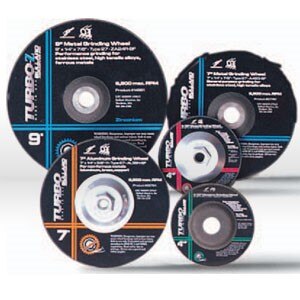

Bullard 20769 Turbo Pipeline Grinding Wheel 7in 8600 Rpm

Product Description

The BULLARD 20769 is a Type 27 depressed center turbo pipeline wheel engineered for combination cutting and light grinding in a single pass. Measuring 7 inches in diameter with a 0.25-inch thickness and a 0.875-inch arbor bore, this wheel operates at a maximum of 8600 RPM. The turbo design delivers smooth material removal and precise control on metal surfaces, reducing the need to swap wheels mid-task. It is suited for licensed welders, pipefitters, and metal fabricators working in pipeline and structural applications where both cutting and grinding are required in sequence.

This wheel is designed for pipeline work where a single wheel must handle both cut-off and light grinding duties without tool changes. The Type 27 depressed center profile allows for flat-surface and bevel grinding at a low angle, which is a common requirement in pipeline fit-up and weld prep. It is appropriate for use on portable angle grinders in field and shop environments on metal workpieces.

Key Features

• Type 27 depressed center profile for low-angle grinding and cutting
• Turbo pipeline design enables combination cutting and light grinding in one wheel
• 7-inch diameter with 0.25-inch thickness and 0.875-inch arbor bore
• Maximum operating speed of 8600 RPM
• Long-life metal grinding formulation for extended wheel service
• Eliminates mid-task wheel changes in pipeline and fabrication applications

Compatibility

Designed as a replacement or consumable Type 27 depressed center wheel for 7-inch angle grinders used in metal pipeline cutting and light grinding applications.

Installation Notes

This wheel is installed and operated by qualified tradespeople including pipefitters, welders, and metal fabricators. Always confirm the angle grinder guard is in place and the tool spindle speed meets or exceeds the wheel's rated RPM before mounting. Inspect the wheel for cracks or chips before each use and discard any damaged wheel immediately. Follow applicable ANSI B7.1 safe-use guidelines for abrasive wheels during mounting and operation.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Diameter: 7 inches
• Thickness: 0.25 inches
• Arbor Bore: 0.875 inches
• Maximum RPM: 8600 RPM
• Application: Metal Long Life Grinding and Cutting
• Weight: 0.85 pounds
• Sold As: Each

Standard Information

• Brand: BULLARD
• Manufacturer Part Number: 20769
