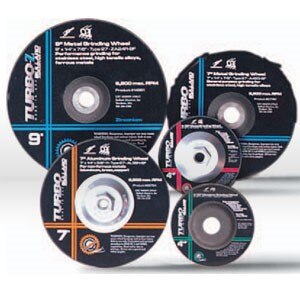

Bullard 14761 Type 27 Turbo Pipeline Wheel 7 Inch

Product Description

The BULLARD 14761 is a Type 27 depressed center turbo pipeline wheel designed for combination cutting and light grinding in a single operation. Built with premium zirconia abrasive, this wheel runs at a maximum of 8500 RPM and measures 7 inches in diameter with a 1/4 inch thickness and a 7/8 inch arbor bore. It is engineered specifically for pipeline applications where switching between cutting and grinding wheels would slow down the job. Metal fabricators, pipefitters, and welders rely on this wheel for demanding field and shop work where consistent material removal and surface control matter.

This wheel is suited for pipeline and structural steel work where both cutting and light grinding tasks occur in the same pass. The turbo design delivers a smooth grind and better control compared to standard flat wheels, making it a practical choice for tight-tolerance pipeline joints and weld prep. It sells in a minimum quantity of 25 per order, making it appropriate for contractors and service companies that use grinding wheels regularly across multiple jobs.

Key Features

• Type 27 depressed center profile allows flush and angled grinding access
• Turbo pipeline design handles combination cutting and light grinding without wheel changes
• Premium zirconia abrasive provides aggressive material removal and extended wheel life
• 8500 RPM maximum operating speed suits standard 7-inch angle grinders
• 7/8 inch arbor bore fits common grinder spindle sizes
• Smooth grind characteristic improves control in demanding pipeline applications

Compatibility

Designed as an OEM-style replacement or direct-use abrasive wheel for standard 7-inch Type 27 angle grinders accepting a 7/8 inch arbor.

Installation Notes

Abrasive wheels must be mounted and operated by qualified personnel following ANSI B7.1 and applicable safety codes. Always inspect the wheel for cracks or damage before mounting, and never exceed the rated maximum RPM. Ensure the grinder guard is in place before operation, and confirm the arbor and flange hardware are clean and properly seated before securing the wheel.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Material: Premium Zirconia
• Wheel Diameter: 7 inches
• Thickness: 1/4 inch
• Arbor Bore: 7/8 inch
• Maximum RPM: 8500 RPM
• Weight: 0.95 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 25

Standard Information

• Brand: BULLARD
• Manufacturer Part Number: 14761
