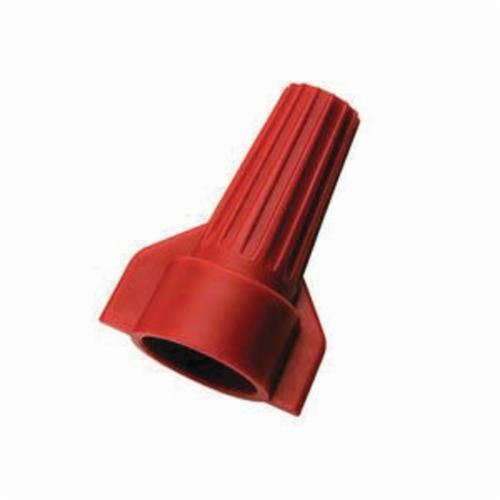

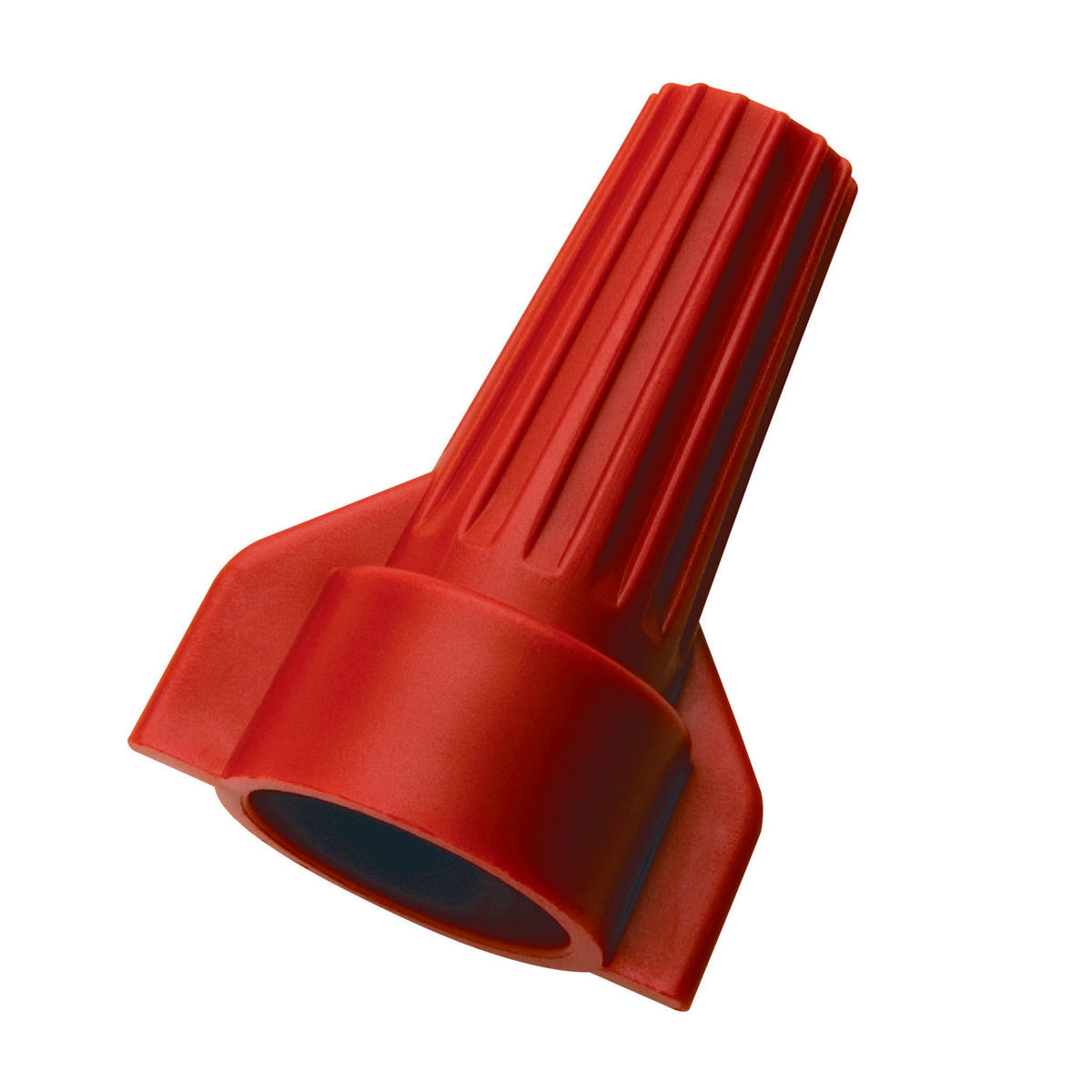

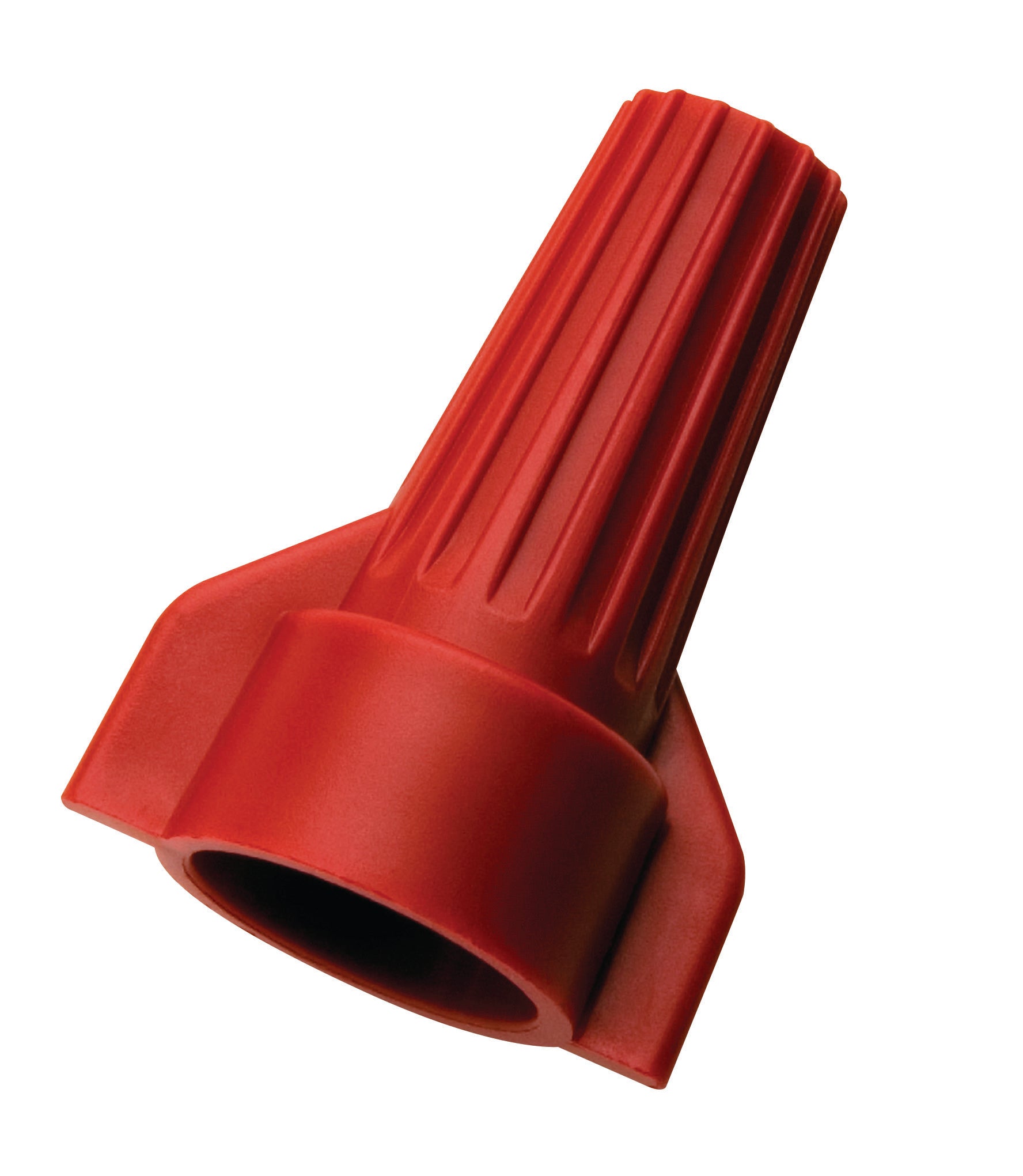

Buchanan WT52-B WingTwist Wire Connector 18 - 10 AWG

Product Description

The Buchanan WT52-B WingTwist Wire Connector offers performance and value for a variety of electrical applications. The contoured wing design provides maximum torque, while the copolymer shell and live-action spring expand for smooth, progressive tightening and dependable connections. It has a tough, flame-retardant shell that withstands environmental extremes.

• Contoured wing design provides maximum torque
• Flame-retardant polypropylene shell
• Fixed, square-wire spring threads itself creating secure pressure grip

Product Highlights

The WingTwist wire connector offers a great combination of performance and value for electrical applications. It features a tough, flame-retardant shell and a long, deep skirt for maximum dielectric protection.

Product Information

Standard Information

• Brand: BUCHANAN
• Manufacturer Part Number: WT52-B
• Country of Origin: Unknown

Technical Specifications

• Catalog Number: WT52-B
• Brand: Buchanan
• Sub Brand: WingTwist
• Application: Insulating or Joining 1 or more conductors
• Conductor Range: 18 - 10 AWG, 2/12 AWG Min, 5/12 AWG MAX
• Material: Flame-retardant Polypropelene
• Number of Conductors: 2 to 6
• Special Features: Features: Five Color-Coded Models Cover Common Construction Wire Ranges; Green Model Designed For Ground Connections; Unique Contoured Wing Design Acts As Built-In Wrench Providing Maximum Torque With Minimum Effort; Fixed, Square-Wire Spring Threads Itself Creating Secure Pressure Grip; Deep, Wide-Throated Skirt Protects Against Flash-Over And Turned-Back Strands For Maximum Dielectric Protection; UL 486C Listed (WGR UL 467 Listed) And CSA C22.2 #188 Certified; 1,000V Maximum In Fixtures And Signs; Model Number: WT52
• Standard: CSA C22.2 #188, UL 486C Listed, RoHS
• Voltage Rating: 600 V
• Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
• Series: WT52
• Temperature Rating: 221 deg F
• Shell Style: Winged
• Spring Type: Fixed/Square Wire
• Wire Size: 18 to 10 AWG
• Wire Type: Solid/Stranded
• Minimum Wire Combination Size: (6) #18
• Maximum Wire Combination Size: (3) #10
• RoHS Compliant: True
• Minimum Conductor: 2/12 AWG
• Maximum Conductor: 5/12 AWG
• Model Number: WT52
• Max. Single Wire Size: 10 AWG
• Min. Single Wire Size: 18 AWG
• Max. Wire Combination: (5) 12 AWG
• Min. Wire Combination: (2) 12 AWG
• For Conductor Material: Copper
• Twist-On Wire Size Ranges: 18 AWG - 10 AWG
• UL 94 Flammability Rating: V-2
• Cable/Wire Type: Solid/Stranded
