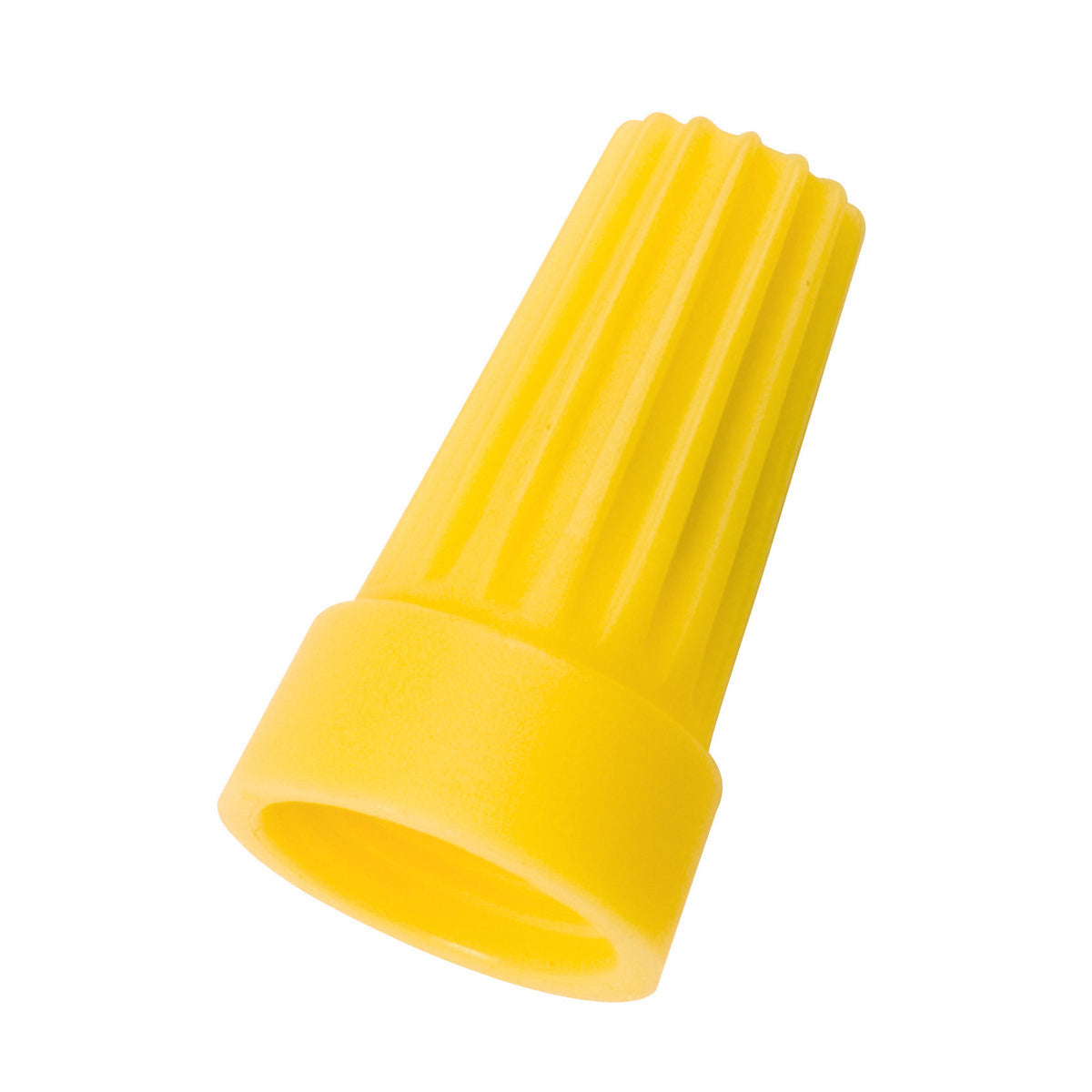

Buchanan WT4-1 Wire Connector WireTwist Conductor Range 18 - 10 AWG

Product Description

The Buchanan WT4-1 WireTwist connector is designed for use in various electrical applications. This product accommodates solid or stranded wire sizes from eighteen to ten AWG. It provides a reliable connection with a color-coded design for easy identification.

• Compatible with conductor sizes from eighteen to ten AWG
• Flame-retardant polypropylene material
• Rated for six hundred volts with a UL 94V-2 shell

Product Highlights

This connector provides superior dielectric protection. The rugged shell withstands harsh environments, making it suitable for indoor and outdoor use.

Product Information

Standard Information

• Catalog Number: WT4-1
• Manufacturer: Ideal Industries

Technical Specifications

• Conductor Range: 18 - 10 AWG, 3/18 AWG Min, 4/14 AWG MAX With 1/18
• Material: Flame-retardant Polypropelene
• Voltage Rating: 600 V
• Number of Conductors: 2 to 5
• Application: Insulating or Joining 1 or more conductors
• Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
• Special Features: Five color-coded models; ribbed cap for grip; deep skirt design for flashover protection
• Country of Origin: United States
