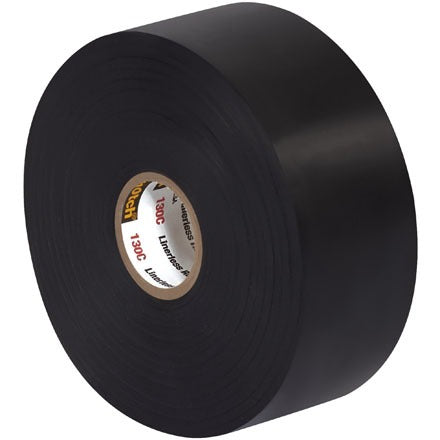

Bsc Preferred T966130C High-voltage Insulating Tape

Product Description

The BSC PREFERRED T966130C is a linerless, highly conformable, high-voltage insulating tape designed for primary electrical insulation in cable splicing applications. Rated for solid dielectric cables up to 69,000 volts, this tape uses an aggressive rubber-resin adhesive bonded to a self-fusing ethylene propylene backing. The result is a moisture-tight seal with void-free buildups around splices. Rated for service from 0 to 194 degrees F, it holds up in demanding field and underground conditions. Licensed electricians and utility linemen working on medium- and high-voltage cable systems rely on this tape as a core component of proper splice insulation.

This tape is suited for splicing solid dielectric power cables in both underground and above-grade installations. It is commonly used in commercial, industrial, and utility electrical work where high-voltage cable integrity is critical. The self-fusing ethylene propylene backing conforms tightly to irregular cable geometries, making it practical in confined conduit bodies and splice kits. The tape is sold in a case of 12 rolls, making it appropriate for stocking service vehicles or job-site supply rooms where medium- and high-voltage splice work is performed regularly.

Key Features

• Rated for primary electrical insulation on solid dielectric cables up to 69,000 volts
• Self-fusing ethylene propylene backing ensures void-free, moisture-tight splice buildups
• Linerless and highly conformable for tight wrap applications on irregular cable profiles
• Aggressive rubber-resin adhesive maintains bond in wet and underground environments
• Operational temperature range from 0 to 194 degrees F
• Sold in a case of 12 rolls for job-site and fleet inventory use

Compatibility

Designed for primary electrical insulation and splicing of all solid dielectric cables rated up to 69,000 volts. This product is equivalent to part number S-18656.

Installation Notes

Installation should be performed by a licensed electrician qualified for the voltage class being worked on. De-energize, lock out, and tag out all circuits before beginning any splice or insulation work in accordance with NFPA 70E and applicable NEC requirements. Apply tape with consistent tension and overlap to eliminate voids and air pockets in the splice buildup. Do not stretch the tape beyond its conformable limits, as uneven buildup can compromise insulation integrity at rated voltage.
