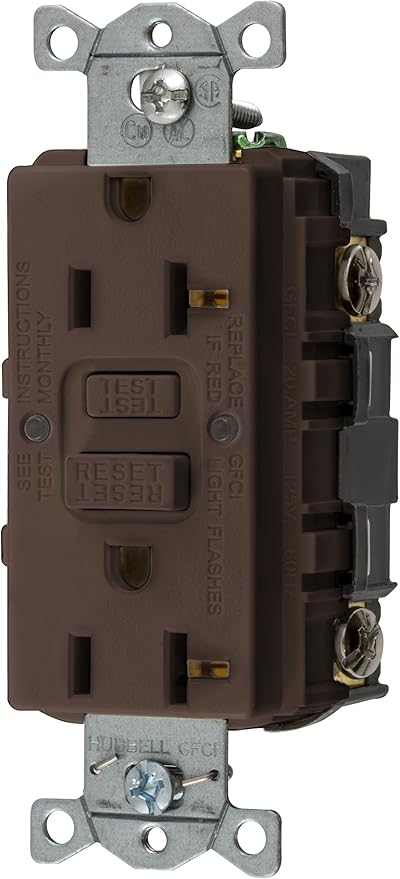

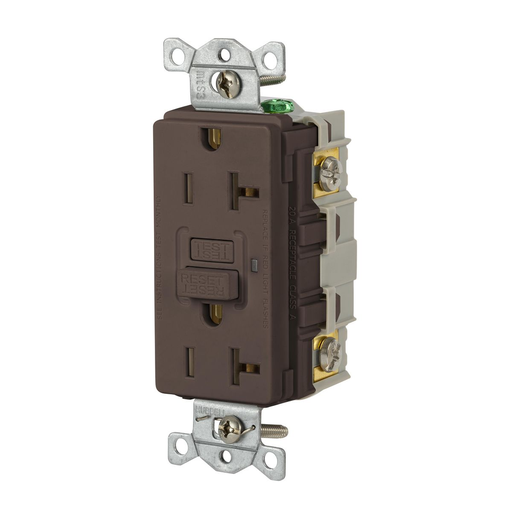

Bryant GFR20 GFCI Receptacle Self Test 20A 125Vac 5-20R

Product Description

The BRYANT GFR20 is a GFCI receptacle with self-test functionality, designed for power protection. Rated at 20A and 125Vac, it is a commercial-grade, 2-pole, 3-wire grounding receptacle with a 5-20R configuration. It features patented AUTOGUARD® self-test technology and an internal back wiring clamp for secure termination.

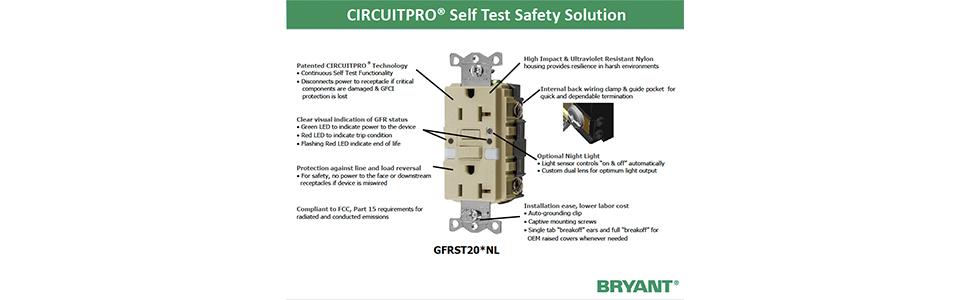

• Patented AUTOGUARD® self test technology

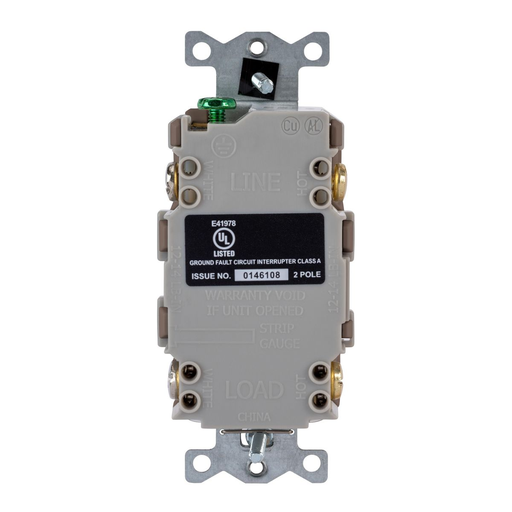

• Internal back wiring clamp and guide for quick and secure termination
• Single LED status indicator - green indicates power, red indicates a trip, flashing red indicates end of life

Product Highlights

This GFCI receptacle provides reliable ground fault protection with continuous self-testing and easy installation.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: GFR20

Technical Specifications

• Product Name: Bryant Power Protection Devices GFCI Receptacle Self Test 20A 125Vac Commercial Grade 2-Pole 3-Wire Grounding 5-20R Brown (GFR20)
• Brand: Bryant
• Mfr. Part Number: GFR20
• UPC Code: #883778999086
• Width: 3.100 in
• Style: Standard
• Base Unit of Measure: EA
• Current / Amperage Rating: 20 A
• Industry Standard(s): Meets All NEC Requirements
• Voltage Rating Description: 125 V
• Nema Rating: 5-20R
• Type: Standard
• Series: Heavy Duty
• Voltage: 125 Volts
• Amperage: 20 Amps
• Connector Type: Plug-In
• Total Power Outlets: 2
