Bryant DRS15I Straight Blade Receptacle 15A 125V

Product Description

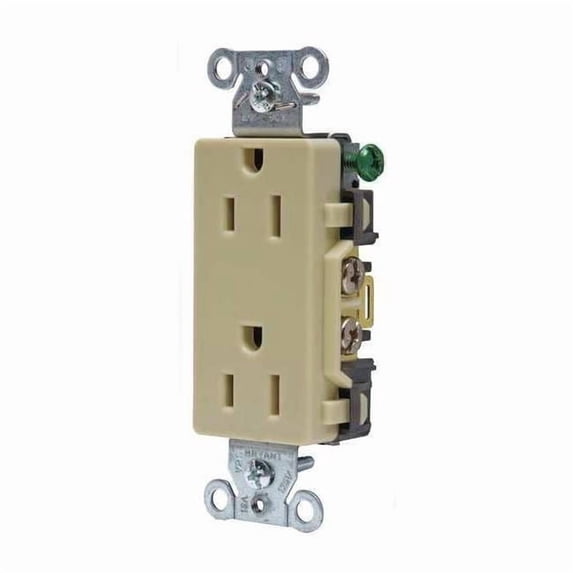

The Bryant DRS15I straight blade receptacle is a 15A 125V duplex decorator receptacle. It is commercial/industrial grade and features 2-pole 3-wire grounding. Designed for standard installations where electrical performance and durability are required.

• Duplex
• Decorator
• Commercial/Industrial Grade

Product Highlights

The Bryant straight blade receptacle provides basic, non-locking power connections without added protection or monitoring features.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DRS15I
• Country of Origin: China

Technical Specifications

• Catalog Number: DRS15I
• Application: Commercial Grade
• EU RoHS Indicator: Yes
• Item Type: Decorator Duplex
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Decorator
• Type: Duplex Receptacle
• UPC: 781786410480
• Display Size: Standard Sized Product
• Height: 1.07 in
• Length: 3.28 in
• Width: 1.38 in
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired Terminal Screws
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V AC
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Electrical outlet type: 15A, 120 V Outlet
• Amps: 15 Amps
• Features: Impact-Resistant
• Count per pack: 1
• Connection Orientation: Straight
• Cover Type: No Cover
• Grounding: Grounded
• Housing Material: Composite
• Mount Type: Flush
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Polarized: Yes
• Receptacle Type: Decorator Duplex
• Resistance Properties: Impact Resistant
• Standards: CSA Certified, Federal Specification, UL Listed
• Wire Connection Type: Screw Terminals
• Minimum Wire Size: 14 AWG
• Maximum Wire Size: 12 AWG
• Face Plate Height: 2.7 in
• Overall Depth: 1.1 in
• Mount Hole Center-to-Center Height: 4.1 in
• Item: Straight Blade Receptacle
• Housing Color: Ivory
• Flange Type: Non-Flanged
• Power Indicator: No
• Corrosion Resistant: Yes
• NEMA Configuration: 5-15
• Mounting Type - Plugs and Receptacles: Flush
• NEMA Receptacle Configuration - Plugs and Receptacles: 5-15R
• Voltage: 125VAC
• Application Environment: Commercial
• Outlet Type - Plugs and Receptacles: Decorator Duplex
• Weather Resistant - Plugs and Receptacles: No
• Sub-Category: Decorator Receptacles
• Tamper Resistant: No
• Outlet Type: Decorator
• Surge Suppression: No
• HP: 1/2 hp
• Weather Resistant: No
• Wiring Method - Plugs and Receptacles: Back and Side
• Wiring Method: Back/Side
• Special Features: Corrosion resistant
• Horsepower Rating: 1/2 hp
• GFCI: No
• Includes Mounting Hardware: Yes
• Market: Commercial, Industrial
• AFCI: No
• Contact Material: Brass
• Grade: Federal Specification
• Includes: Mounting Hardware
• For Location: Indoor
• Surge Protection: No
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Number of Outlets: 2
• Terminals: Screw
