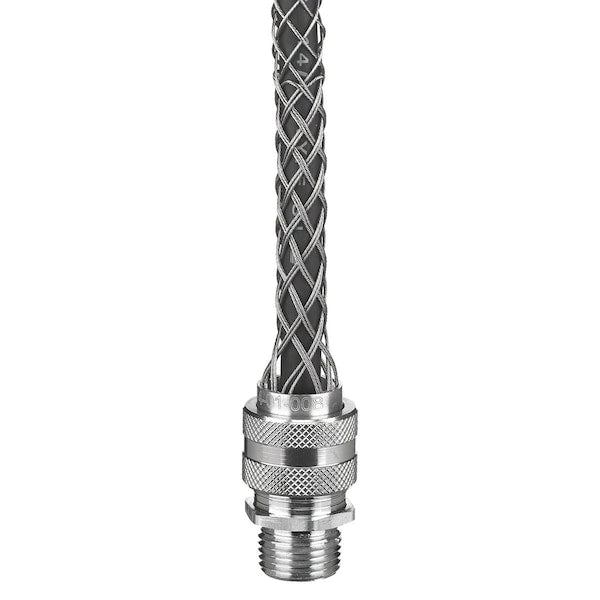

Bryant DC5034 Cord Grip W/Connector

Product Description

The Bryant DC5034 cord grip with connector is a deluxe cord grip with a straight male end and a .500-.625" diameter, featuring a 3/4" mesh. It is designed for insulated cables and includes aluminum fitting with stainless steel mesh.

• Straight male application
• Aluminum fitting with stainless steel mesh material
• Temperature rating: Minimum -30 Deg F to 225 Deg F

Product Highlights

The Bryant DC5034 cord grip ensures secure cable connections in various industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: DC5034
• Country of Origin: United States

Technical Specifications

• Application: Straight Male
• Catalog Number: DC5034
• EU RoHS Indicator: Yes
• Material: Aluminum Fitting, Stainless Steel Mesh
• Material - Mounting Hardware: Locknut or Tapped Opening
• OEM Brand Name: Hubbell Bryant
• Series: Deluxe Cord Grips
• Style: For Insulated Cables
• Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
• Thread Size: 3/4 NPT
• Type: Straight Male Thread
• UPC: 781786242708
• Cable Diameter Range: 0.500 in-0.625 in
• Number of Conductors: Jacketed UL Listed Cable Only
