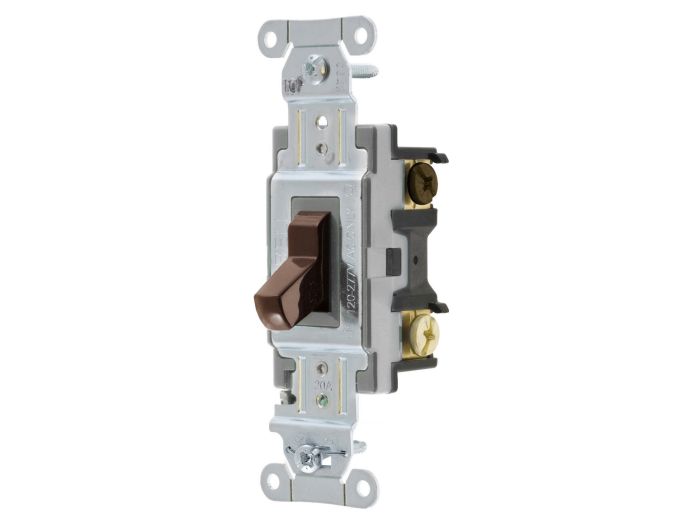

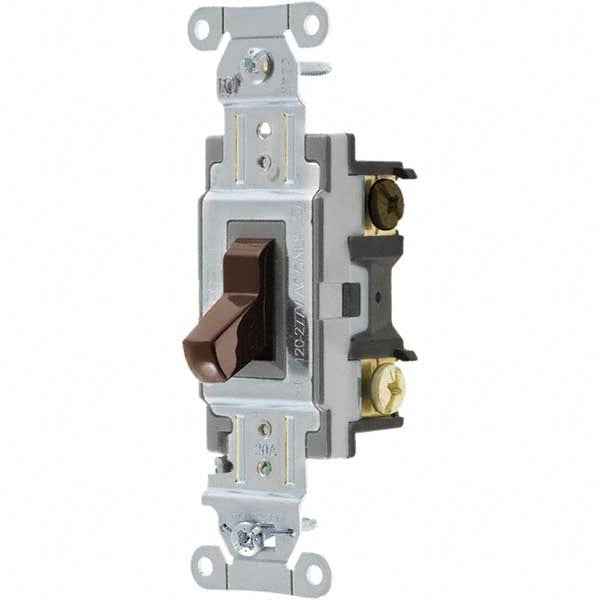

Bryant CSB320B wall switch 3-way locking no toggle

Product Description

The BRYANT CSB320B is a wall switch with a 3-way locking toggle. This commercial-grade toggle switch is designed for general-purpose AC use. It is rated for 20A and 120/277V AC, and features back and side wiring.

• Toggle switch
• General Purpose AC
• Three Way
• 20A 120/277V AC
• Back and Side Wired

Product Highlights

Commercial grade toggle switch for controlling electrical circuits in various applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CSB320B
• Country of Origin: China

Technical Specifications

• Catalog Number: CSB320B
• Series: General Purpose
• Style: Three Way
• Type: Toggle
• Amperage Rating: 20 A
• Current / Amperage Rating: 20 A
• Voltage Rating: 120/277 VAC
• Voltage Rating Description: 120/277 VAC
• Manufacturer Part Number: CSB320B
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Switches
• Grade: Commercial
• Switch Configuration: Three Way
• Voltage: 120 VAC, 277 VAC
• Current Rating: 20 A
• Operator Color: Brown
• Illuminated: No
• Locking: No
• Wiring: Back and Side Wired
• Approvals: CSA, UL
• Comments: Self-Grounding
• Brand: BRYANT
• Horsepower Rating: 2 hp
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: No
• Standards: NEMA WD-1; UL20
• Switch Function: Maintained
• Switch Style: Toggle
• Switch Type: 3-Way
• Wire Connection Type: Screw
• Terminals: Screw
• Wiring Method: Back/Side
• Maximum Amperage: 20 A
• Number Of Poles: 1
• Includes: Terminal Screws
• Standards Met: UL Listed; CSA Certified
