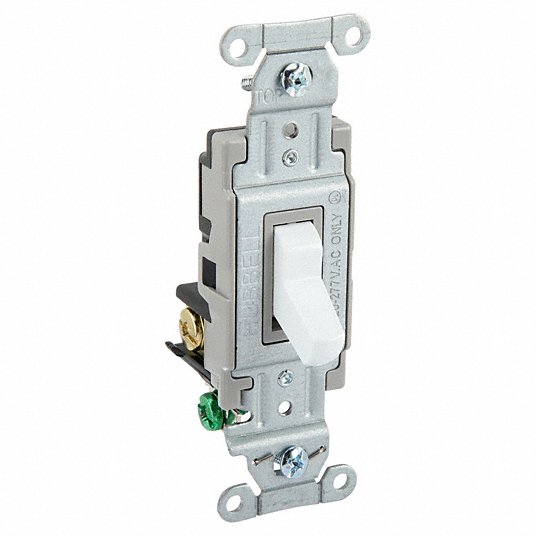

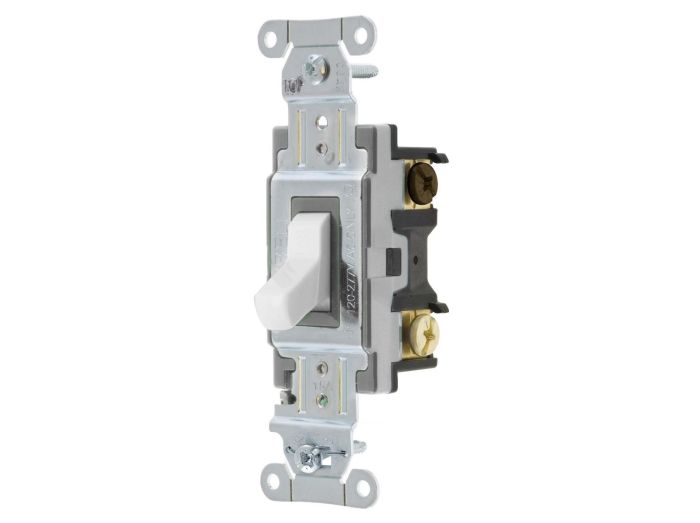

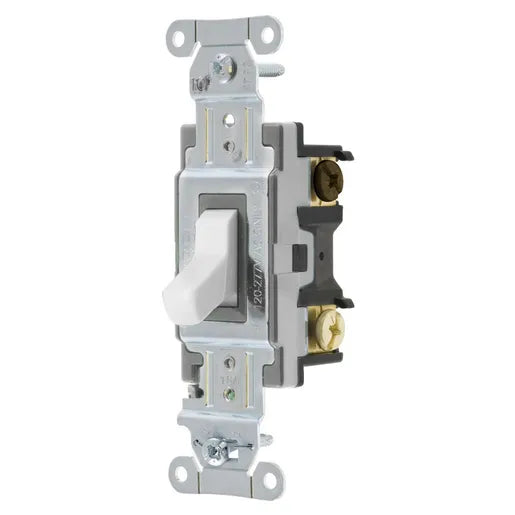

Bryant CSB315BW General Purpose AC Toggle Switch 15A 120/277V

Product Description

The BRYANT CSB315BW is a commercial-grade, general-purpose AC toggle switch. This three-way switch is rated for 15A at 120/277V AC and features back and side wiring. It provides power control for electric devices and equipment such as ceiling fans, lights, outlets, and appliances.

• Commercial Grade
• General Purpose AC
• Back and Side Wired

Product Highlights

This BRYANT toggle switch is ideal for commercial applications requiring a durable and reliable three-way switching solution.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CSB315BW
• Country of Origin: China

Technical Specifications

• Brand: Bryant
• Catalog ID: CSB315BW
• Toggle: Toggle
• General Purpose AC: General Purpose AC
• Three Way: Three Way
• Amperage Rating: 15 A
• Voltage Rating: 120/277 VAC
• Series: General Purpose
• Style: Three Way
• Type: Toggle
• Current Rating: 15 A
• Horsepower Rating: 2 hp
• Illuminated: No
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: No
• Standards: CSA Certified
• Switch Function: Maintained
• Switch Style: Toggle
• Switch Type: 3-Way
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121507
• MPN: CSB315BW
• UPC: Does not apply
• Country of Origin: United States
• Condition: New
• Model: CSB315BW
• Manufacturer Part Number: CSB315BW
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Switches
• Grade: Commercial
• Switch Configuration: Three Way
• Voltage: 120 VAC, 277 VAC
• Operator Color: White
• Locking: No
• Wiring: Back and Side Wired
• Approvals: CSA, UL
• Comments: Self-Grounding
