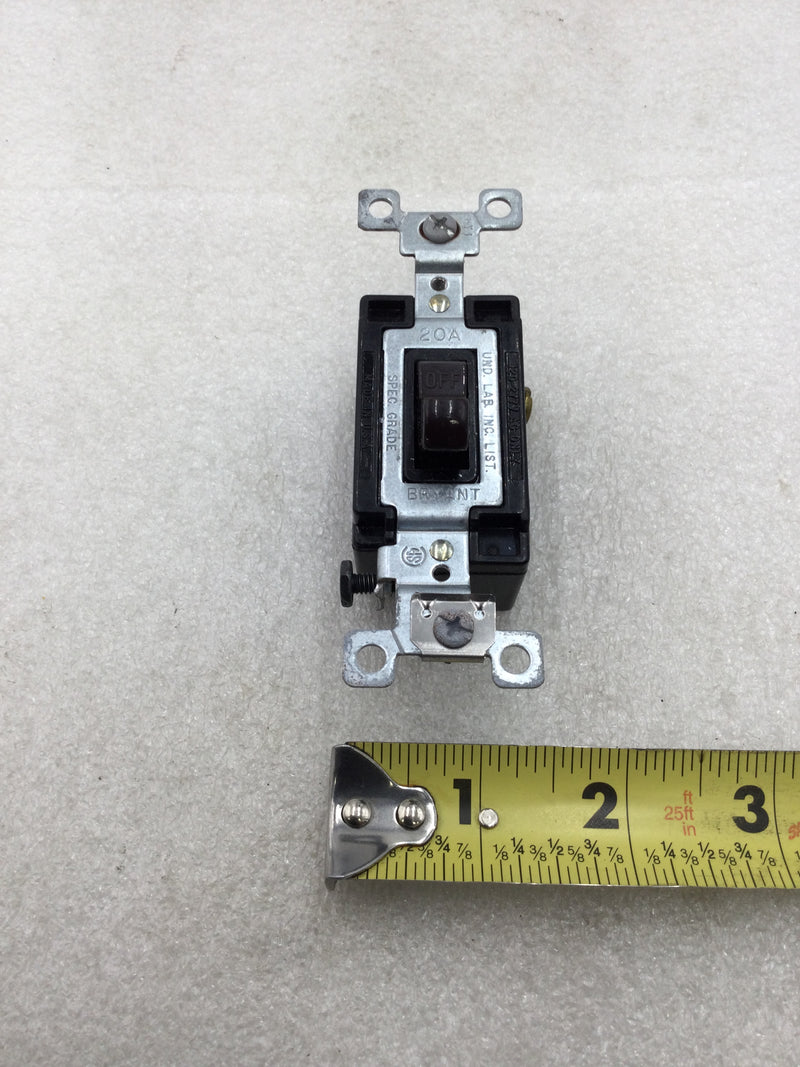

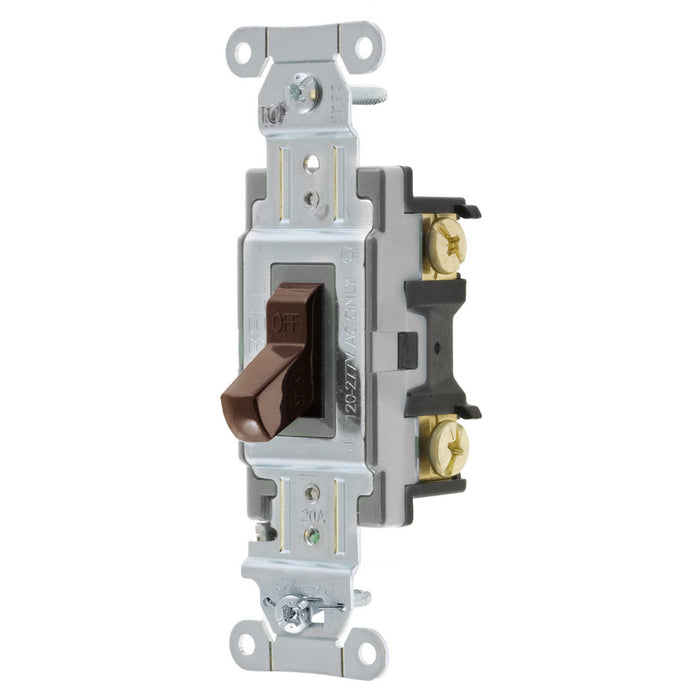

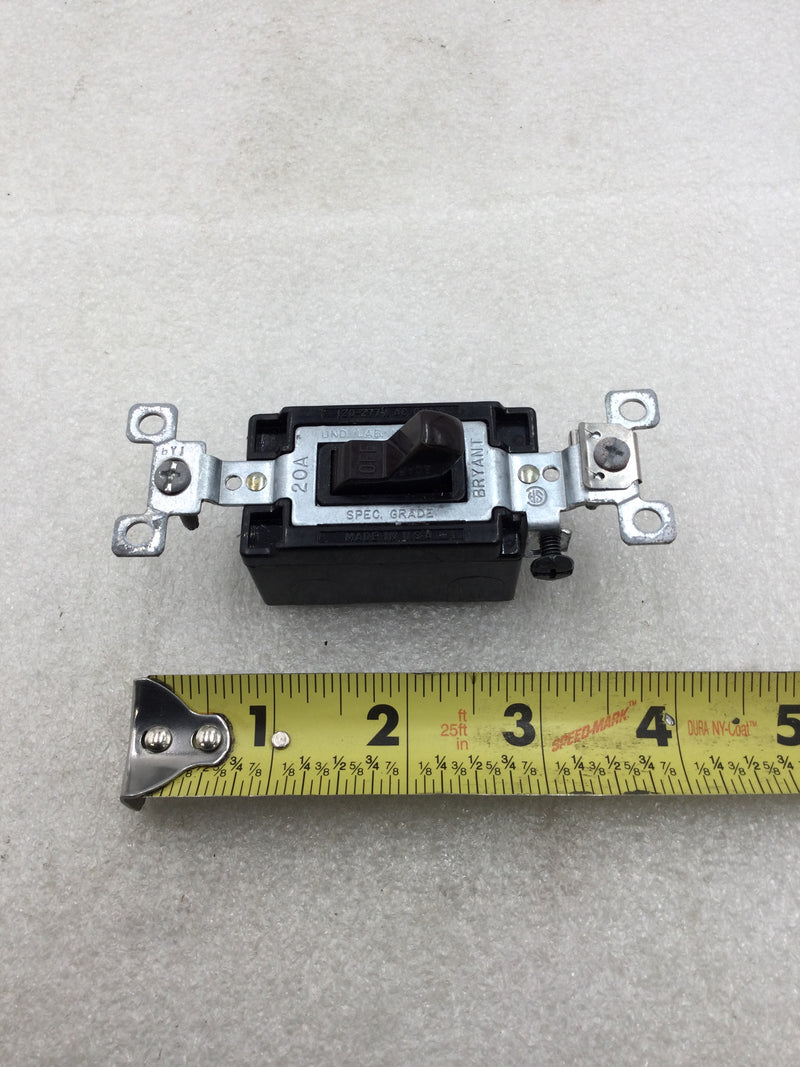

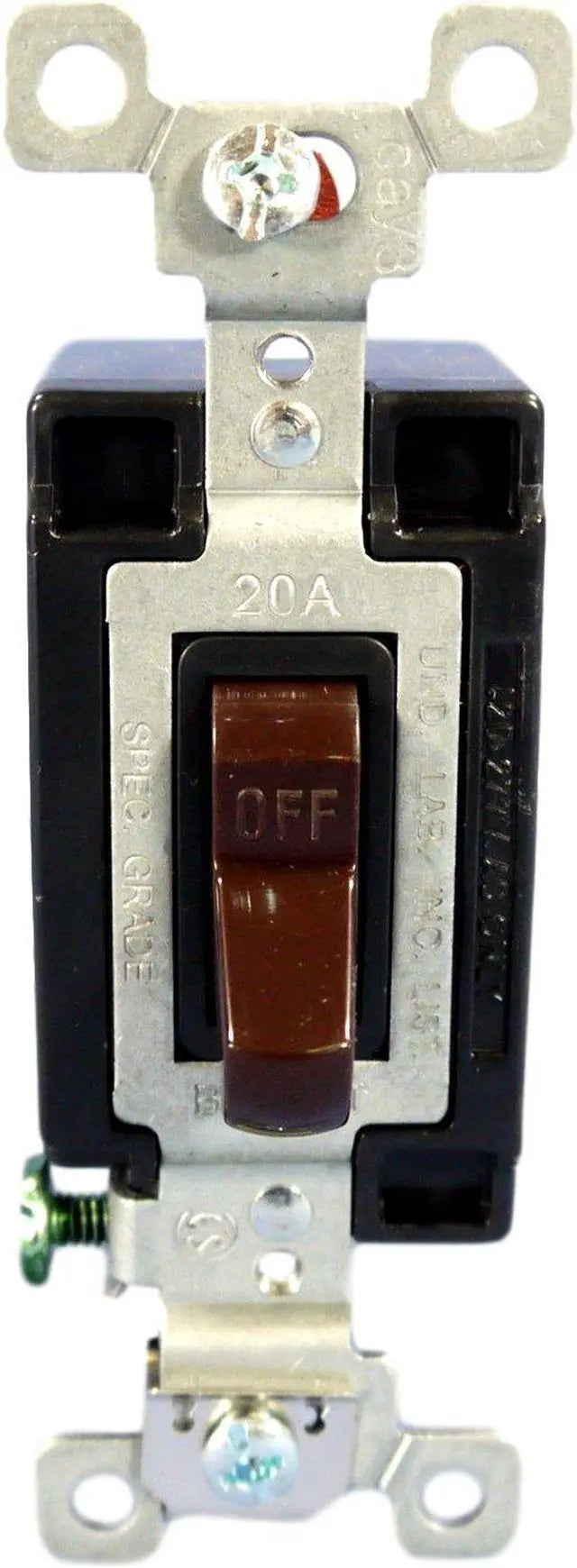

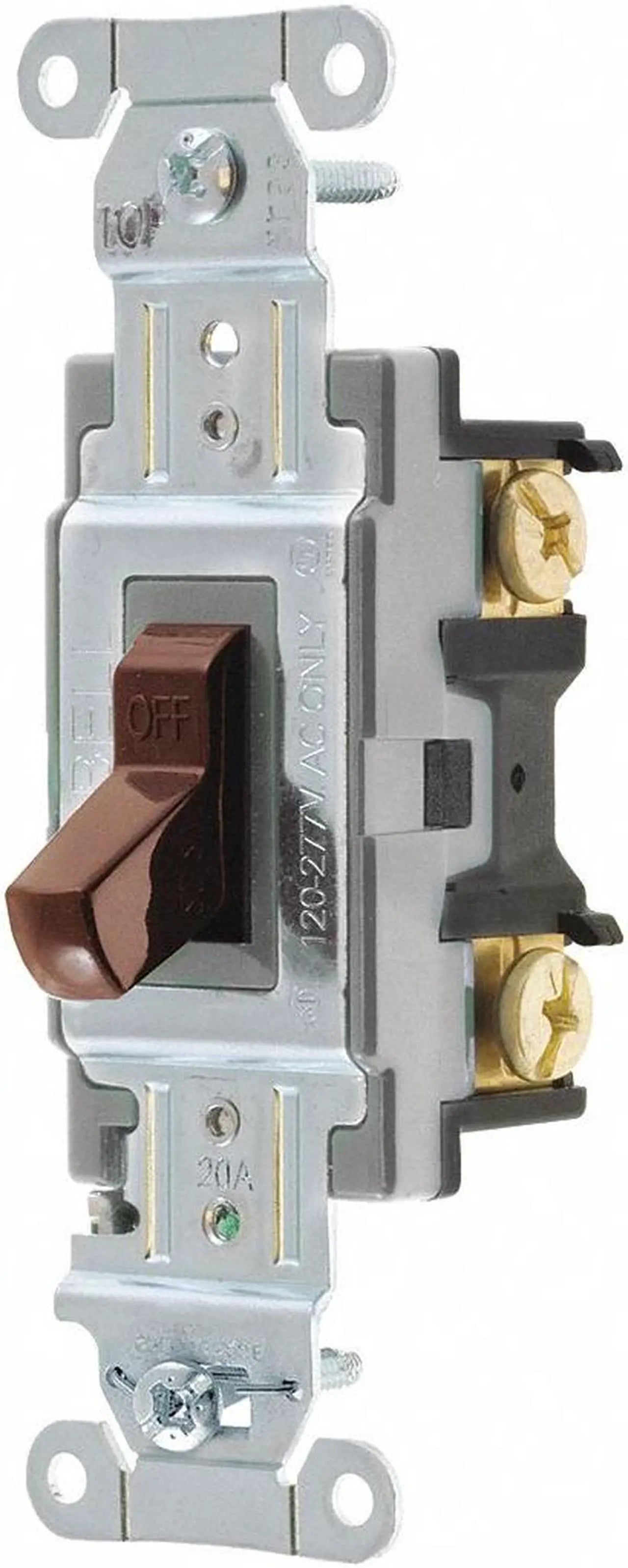

Bryant CSB120B Switch Single Pole 20A 120/277V

Product Description

The BRYANT CSB120B is a single-pole toggle switch rated for 20 amps and compatible with voltages from 120 to 277 volts. Designed with back and side wiring options, offering versatile installation flexibility. Provides dependable control for lighting and other devices. Ideal for electricians seeking a robust and adaptable switch solution.

• Single Pole Toggle Switch
• 20 Amp
• 120-277 VAC

Product Highlights

Single pole, 20A, 120/277V AC, back and side wired switch for lighting and device control.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CSB120B

Technical Specifications

• Catalog Number: CSB120B
• Series: General Purpose
• Style: Single Pole
• Type: Toggle
• UPC: 781786736405
• Amperage Rating: 20 A
• Voltage Rating: 120/277 VAC
• Brand: Bryant Electric
• MPN: CSB120B
• Amperage: 20 Amp
• Voltage: 120-277 VAC
• Switch Function: Maintained
• Switch Type: Single Pole
• Wiring Method: Back, Side
• Horsepower Rating: 2 hp
• Locking Style: Not Applicable
• Number of Switches: 1
• Standards: NEMA WD-1, UL20
• Switch Style: Toggle
• Wire Connection Type: Screw Terminals
• Market: Commercial
• Overall Height: 1.7 in
