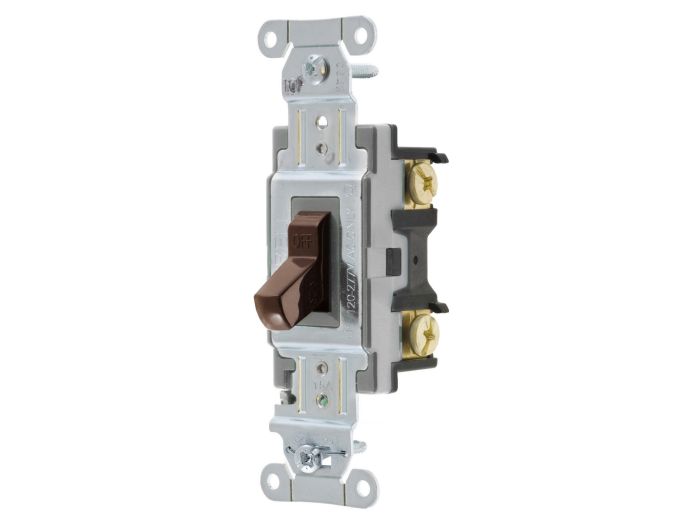

Bryant CSB115B Wall Switch 1-Pole Locking No Toggle

Product Description

The BRYANT CSB115B is a wall switch with a 1-pole locking toggle design. This commercial-grade toggle switch is designed for general-purpose AC applications. It supports 15A at 120/277V AC and features back and side wiring. It provides power control for electric devices and equipment such as ceiling fans, lights, outlets, and appliances.

• Single Pole switch
• 15A 120/277V AC
• Back and Side Wired

Product Highlights

The BRYANT CSB115B wall switch is ideal for commercial applications requiring a durable and reliable single-pole toggle switch.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CSB115B
• Country of Origin: CN

Technical Specifications

• Catalog Number: CSB115B
• Color: Brown
• Series: General Purpose
• Style: Single Pole
• Type: Toggle
• UPC: 781786736009
• Amperage Rating: 15 A
• Voltage Rating: 120/277 VAC
• Carton Quantity: 10
• Brand: BRYANT
• MPN: CSB115B
• Model: CSB115B
• Condition: New
• Features: Wall Switch, Color Brown, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Standards NEMA WD-1, UL20, Switch Style Toggle, Wire Connection Type Screw Terminals, Market Commercial, Overall Height 1.7 in
• Item Height: 1.700
• Item Width: 1.900
• Item Length: 4.400
• Country of Origin: CN
• California Prop 65 Warning: N
• Length: 4.400
• Width: 1.900
• Depth: 1.900
• Horsepower Rating: 2 hp
• Illuminated: No
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: No
• Standards: NEMA WD-1; UL20
• Switch Function: Maintained
• Switch Style: Toggle
• Switch Type: Single Pole
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121507
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Switches
• Grade: Commercial
• Switch Configuration: Single Pole
• Voltage: 120 VAC, 277 VAC
• Current Rating: 15 A
• Operator Color: Brown
• Locking: No
• Wiring: Back and Side Wired
• Approvals: CSA, UL
• Comments: Self-Grounding
