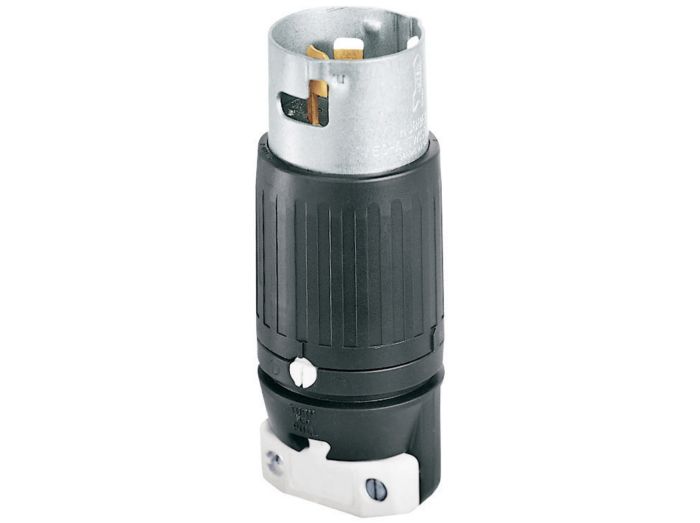

Bryant CS8465 Male Plug 50A 480V AC

Product Description

The BRYANT CS8465 is an industrial male plug designed for heavy-duty applications. This plug supports 50A at 480V AC, featuring a 2-pole, 3-wire grounding configuration and screw terminals. Its super tough nylon housing offers enhanced impact resistance and a stainless steel shroud protects contacts.

• Super tough nylon housing offers better impact qualities
• Stainless steel shroud protects contacts and prevents mismating
• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands

Product Highlights

Heavy-duty male plug with nylon housing, stainless steel shroud, and thermoplastic polyester interior for heat resistance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CS8465

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: CS8465
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 50A Heavy Duty Male Plug
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Extra Heavy Duty
• Type: Plugs
• UPC: 781786538207
• Amperage Rating: 50 A
• Connectivity: Screw Terminals
• Current Amperage Description: 50 Amp
• Current Rating: 50 A
• Phase: Single Phase
• Voltage Rating: 480 VAC
• Voltage Rating Description: 480 VAC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Cord Type: All Listed Portables
• Manufacturer Part Number: CS8465
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Plug Type: Locking, California Style
• Rating - Amps: 50A
• Rating - Volts: 480V
• Ground: Grounding
• NEMA: Non-NEMA
• Cord Diameter: 0.750 - 1.150
