Bryant CS8369L Receptacle 50A 3-Phase Delta 250V AC

Product Description

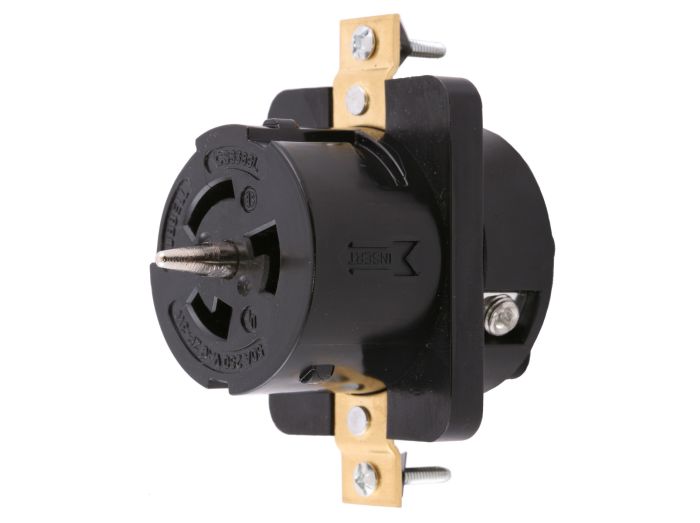

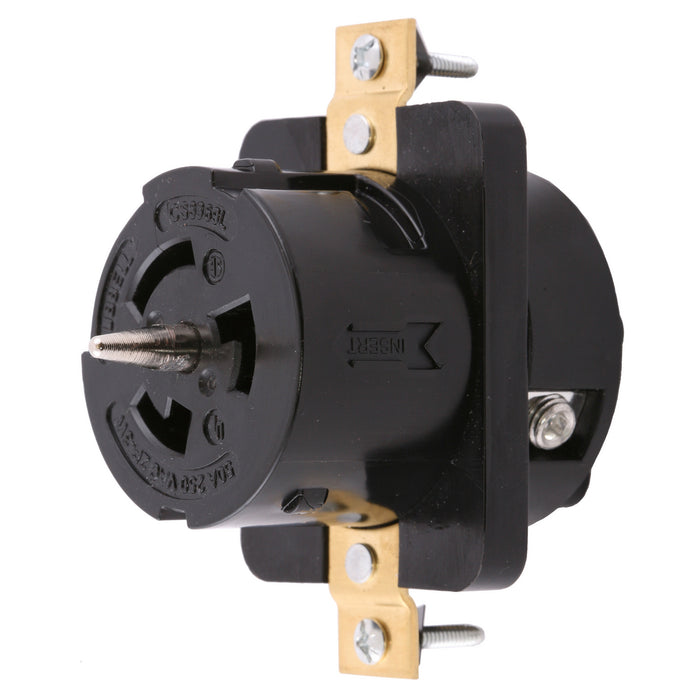

The BRYANT CS8369L is an economy receptacle designed for heavy-duty industrial applications. Rated at 50A 3-Phase Delta 250V AC, this 3-Pole 4-Wire grounding receptacle features screw terminals and is constructed from composite material. It is suitable for indoor dry environments unless protected by additional means.

• Heavy Duty Industrial
• Composite Material
• Screw Terminals

Product Highlights

Durable and reliable, the BRYANT CS8369L receptacle is ideal for industrial settings requiring a robust power connection solution.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CS8369L

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: CS8369L
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 50A Single Armored Heavy Duty Receptacle
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• Style: Heavy Duty
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
• Type: Receptacle
• UPC: 783585320755
• Amperage Rating: 50 A
• Connectivity: Screw Terminals
• Current Amperage Description: 50 Amp
• Current Rating: 50 A
• Voltage Rating: 3 Phase 250 VAC
• Voltage Rating Description: 3 Phase 250V AC
• Conductor Range: #6 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #10 AWG to #4 AWG
• Industry Standard(s): WR Rating
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Phase: 3
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
