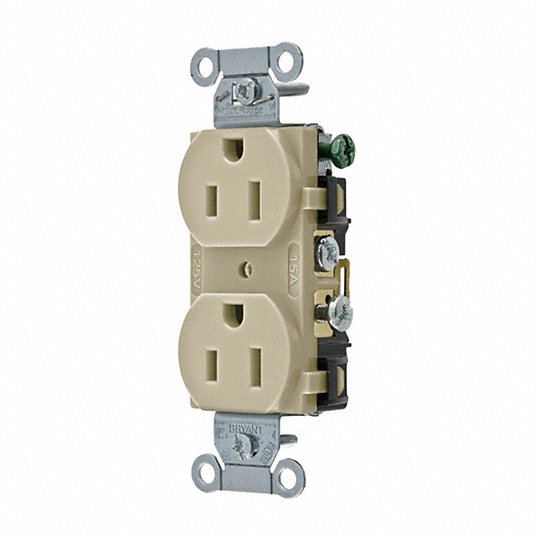

Bryant CRS15I Duplex Receptacle 15A 125V 5-15R

Product Description

The BRYANT CRS15I is a commercial grade duplex receptacle designed for standard installations requiring electrical performance and durability. Rated at 15A and 125V, this 2-pole, 3-wire grounding receptacle provides basic, non-locking power connections. It is suitable for indoor dry environments unless protected by additional means.

• Commercial Specification Grade
• Designed for standard installations
• Electrical performance and durability

Product Highlights

This receptacle is ideal for commercial applications requiring a reliable and durable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CRS15I
• Country of Origin: China

Technical Specifications

• Application: Commercial Specification Grade
• Catalog Number: CRS15I
• Color: Ivory
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: 1-Phase Duplex Self-Grounding Standard Traditional
• UPC: 781786161023
• Amperage Rating: 15 A
• Connectivity: Side Wired Only
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V AC
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Brand: BRYANT
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• Cover: No
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Commercial/Specification
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Ivory
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance: Impact Resistant
• Standards: CSA Certified; Federal Specification; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Side
• UNSPSC: 39121406
• Frequency Rating: 60 Hz
• Horsepower: 1/2 hp
• Manufacturer Name: Hubbell
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Side Wire
• Country of Origin: CN
