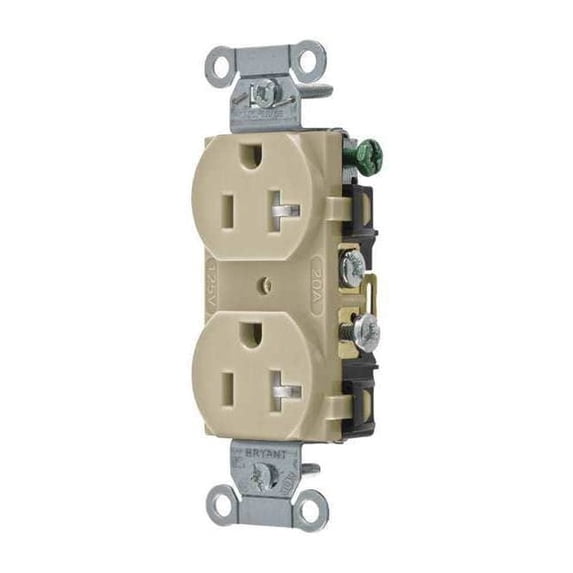

Bryant CBRS20ITR Duplex Receptacles 20A 125V Single Pack

Product Description

The BRYANT CBRS20ITR is a duplex, tamper-resistant commercial grade receptacle. Rated for 20A and 125V, it features 2-pole, 3-wire grounding and a 5-20R NEMA rating. Designed for standard installations requiring electrical performance and durability without specialized features.

• Duplex
• Tamper-Resistant Commercial Grade
• 20A 125V
• 2- Pole 3-Wire Grounding

Product Highlights

This receptacle provides basic, non-locking power connections for commercial applications. It is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: CBRS20ITR
• Country of Origin: China

Technical Specifications

• Application: Commercial Specification Grade
• Catalog Number: CBRS20ITR
• Color: Ivory
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex Smooth Face
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Duplex Receptacle
• UPC: 781786410718
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Brand: BRYANT
• Manufacturer Part Number: CBRS20ITR
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No Cover
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Ivory
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance: Tamper Resistant
• Standards: CSA Certified; Federal Specification; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Voltage: 125 VAC
• Amps: 20 Amps
• Volts: 125 VAC
• Corrosion Resistant: Yes
• Horsepower: 1 HP
• Item: Receptacle
• Number of Poles: 2
• Number of Wires: 3
• Package Quantity: 1
• Power Indicator: No
• Product Type: Duplex Receptacles
• Tamper Resistant: Yes
• Weather Resistant: No
• Model: CBRS20ITR
• Country of Origin: CN
• California Prop 65 Warning: N
• Length: 5.000
• Width: 1.600
• Depth: 1.600
• Power Source: N/A
• Number of Batteries: N/A
• Battery Size: N/A
• Battery Included: No
• Motor Type: N/A
• Battery Capacity: N/A
• Battery Life: N/A
• Cable Length: N/A
