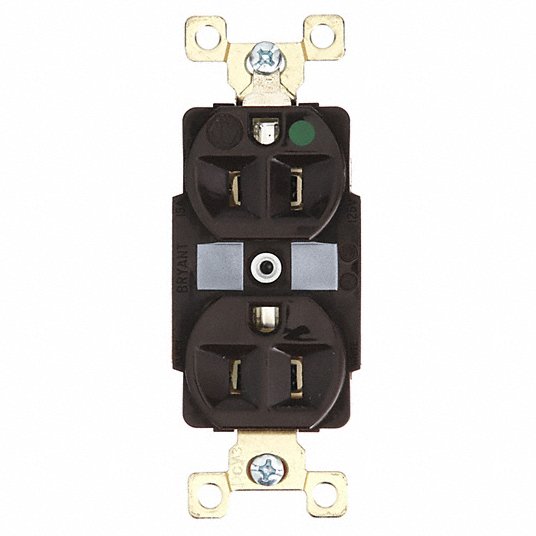

Bryant BRY8200 Receptacle Hospital Grade 15A 125V 5-15R

Product Description

The Bryant BRY8200 is a 15A 125V hospital-grade receptacle. Designed for standard installations, it provides a non-locking power connection. This duplex receptacle ensures electrical performance and durability. It is a 2-pole, 3-wire grounding receptacle with a 5-15R NEMA configuration.

• Duplex
• Hospital Grade
• 15A 125V

Product Highlights

This receptacle is ideal for hospital settings, ensuring reliable power connections where safety and durability are essential.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY8200
• Country of Origin: China

Technical Specifications

• Application: Hospital Grade
• Catalog Number: BRY8200
• Color: Brown
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Hospital Grade
• Style: Finder Groove Face
• Type: Duplex Receptacle
• UPC: 781786005549
• Dimensions: 3.28 in x 1.54 in x 1.16 in
• Display Size: Standard Sized Product
• Height: 1.16 in
• Length: 3.28 in
• Weight: 0.2 lb
• Width: 1.54 in
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V AC
• Wattage: 1875
• Number Of Poles: 2
• Number Of Wires: 3
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Carton Quantity: 10
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Copper
• Cover: No
• Cover Type: No Cover
• Country of Origin: China (subject to change)
• Face Plate Height: 1.3 in
• For Location: Indoor
• GFCI: No
• Grade: Hospital Grade Fed. Spec.
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Material: Composite
• Includes: Grounding Screw/Clip; Mounting Hardware
• Includes Mounting Hardware: Yes
• IP Rating: IP20
• Market: Industrial
• Maximum Operating Temperature: 140 °F
• Minimum Operating Temperature: -40 °F
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Overall Depth: 1.2 in
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance Properties: Heat Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• UL 94 Flammability Rating: V-2
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Item: Receptacle
• Amps: 15A
• Resistance Property: General Purpose
• Wire Connection Location: Back, Side
• Wire Connection Types: Screw Terminals
