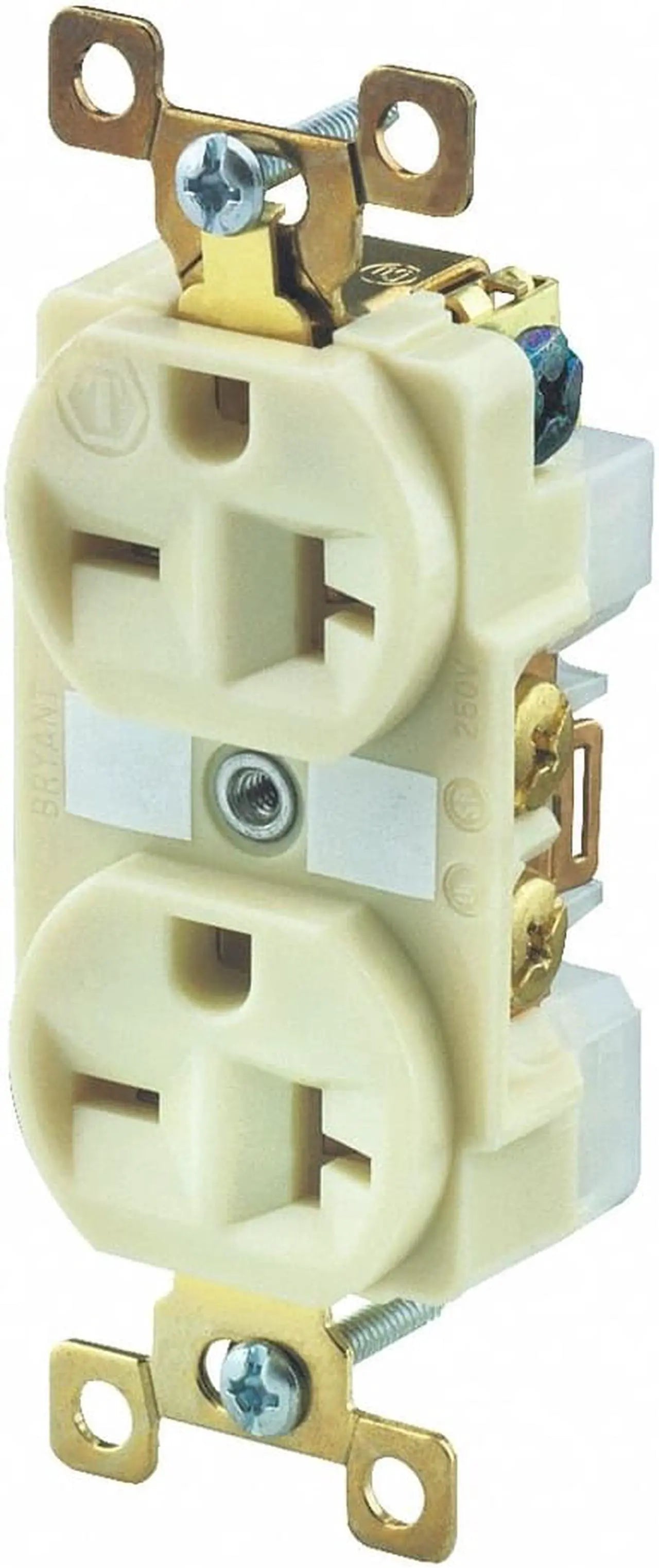

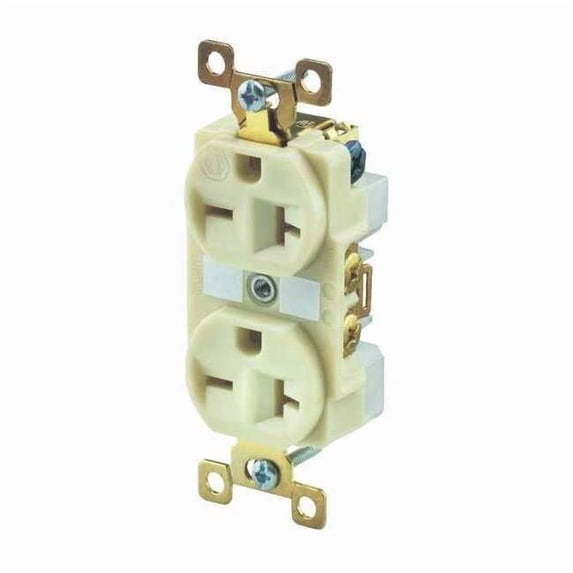

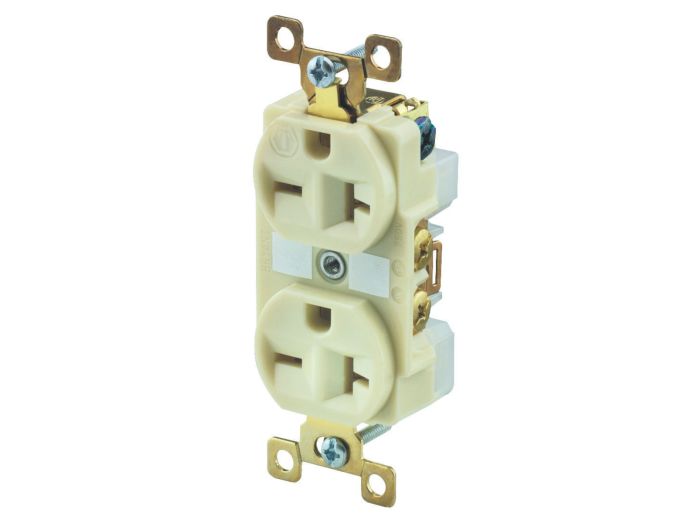

Bryant BRY5462I Receptacle 20A 250V

Product Description

The Bryant BRY5462I is a 20A 250V receptacle. Designed for standard installations, it provides basic, non-locking power connections where electrical performance and durability are required without specialized grounding, signaling, or surge suppression. This duplex receptacle is suitable for commercial and industrial use.

• Duplex configuration with 2-pole, 3-wire grounding.
• Corrosion-resistant nylon housing for durability.
• Flush mounting style for easy installation.

Product Highlights

The Bryant BRY5462I receptacle provides a reliable power connection for commercial and industrial applications. It features a durable construction and is suitable for indoor use.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5462I
• Country of Origin: China

Technical Specifications

• Brand: Bryant
• MPN: BRY5462I
• GTIN: 0781786005389
• UPC: 0781786005389
• Model: BRY5462I
• Outlet Configuration: Duplex
• Mounting Style: Flush
• Number of Phases: 1
• Material: Nylon
• Number of Poles: 2
• Resistance Properties: Corrosion Resistant
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• Cover: No
• Current Rating: 20 A
• Face Plate Width: 1.5 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Material: Nylon
• IP Rating: IP20
• Includes: Mounting Hardware
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 6-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wires: 3
• Overall Depth: 1.2 in
• Phase: Single
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance: Corrosion Resistant
• Standards: CSA Certified; Federal Specification W-C-59; NEMA WD-1 and WD-6; UL 498; UL Listed
• Surge Protection: No
• Voltage Rating: 250V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Type: Wiring Devices
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Ivory, Single Pack
• Voltage: 250 VAC
• Connection Type: Duplex Receptacle
• NEMA Configuration: 6-20R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
• Electrical outlet type: 20A, 250 V Outlet
• Amps: 20 Amps
• Features: Heavy Duty
• Count per pack: 1
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
