Bryant BRY5366NPCR Straight Blade Plug 20A 125V 5-20P

Product Description

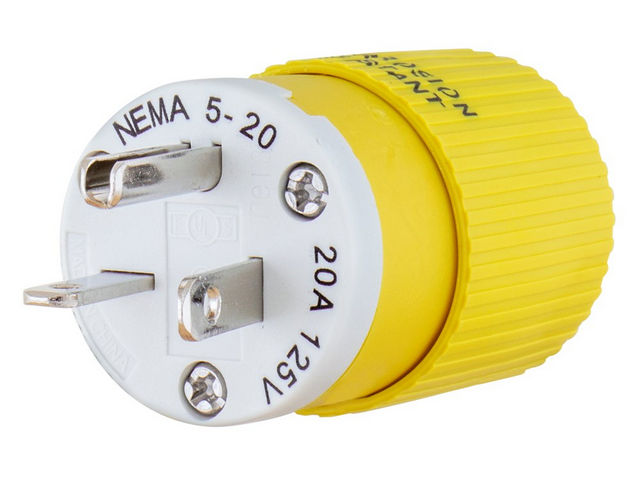

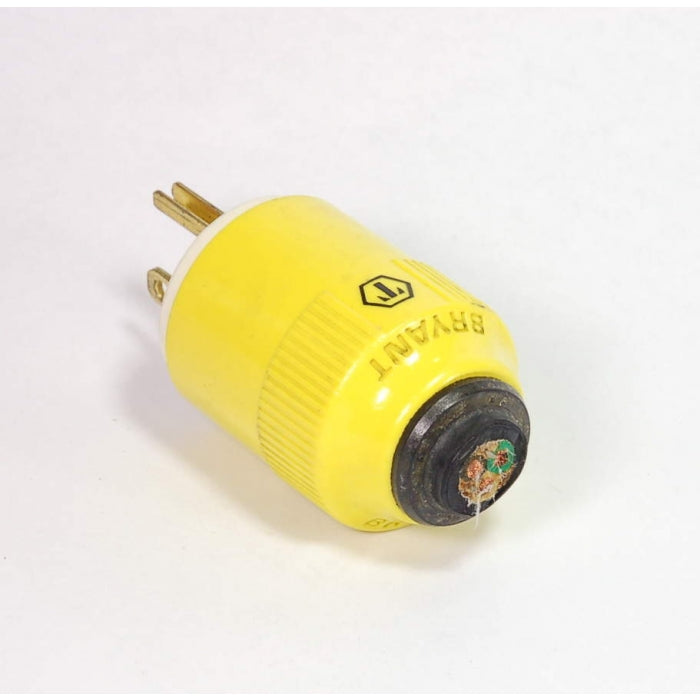

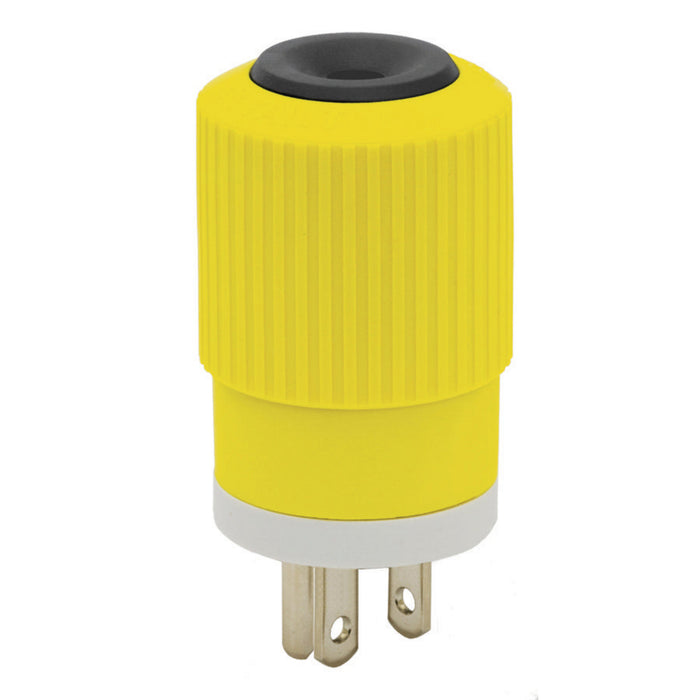

The BRYANT BRY5366NPCR is a straight blade, corrosion-resistant, industrial/commercial grade male plug. Rated for 20A and 125V, this 2-pole, 3-wire grounding plug features a 5-20P NEMA configuration. It is designed with tough, impact- and chemical-resistant nylon housing and an internal Triple Gripper cord clamp that automatically centers the cord and secures it.

• Corrosion Resistant
• Industrial/Commercial Grade
• Straight
• Tough, impact- and chemical-resistant nylon housing
• Internal Triple Gripper cord clamp

Product Highlights

This Bryant straight blade plug is ideal for industrial and commercial applications requiring a durable and corrosion-resistant connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5366NPCR
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Grade
• Catalog Number: BRY5366NPCR
• Cord Range: 0.245"-0.655"
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Tech-Spec Triple Gripper
• Material: Material Nylon/Polymer
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Type: Plug
• UPC: 781786134126
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Rating: 20 Amps
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Portable
• Brand: Bryant
• Grade: Industrial
• Connector Angle: No Angle
• Grounding Style: Self-Grounded
• Resistance Features: Corrosion-Resistant
• Number Of Phases: 1
• Body Material: Nylon
• Standards: UL Listed; CSA Certified
• UNSPSC Code: 39121400
• Product Service Code: 5935
• Country of Origin: United States
• Model: BRY5366NPCR
• Connector Type: Plug
• Voltage: 125V
• Cord Size: 0.245" to 0.655"
• Corrosion Resistant: Yes
