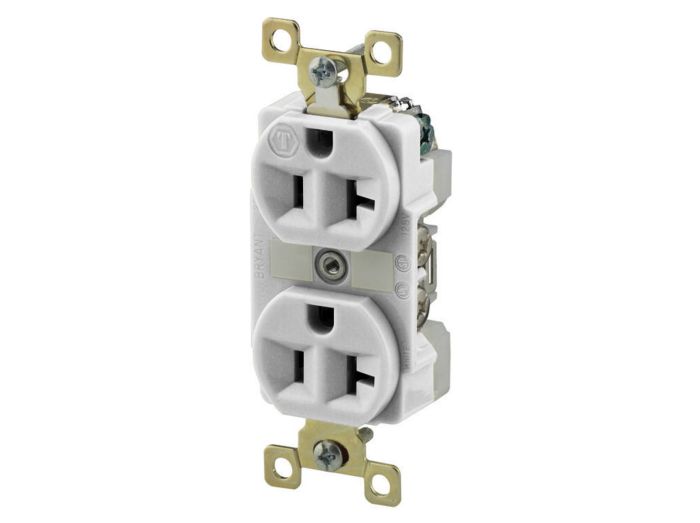

Bryant BRY5362W Duplex Receptacle 20A 125V 5-20R

Product Description

The BRYANT BRY5362W is a duplex receptacle designed for commercial and industrial use. Rated at 20A and 125V, this 2-pole, 3-wire grounding receptacle features a 5-20R NEMA configuration. It is suitable for indoor dry environments unless protected by additional means.

• One-piece ground system provides reliable continuity.
• Triple-Wipe brass line contacts deliver excellent conductivity.
• Nylon wraparound design ensures secure assembly.

Product Highlights

This heavy-duty duplex receptacle is ideal for industrial applications requiring a dependable and durable electrical connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY5362W
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: BRY5362W
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Extra Heavy Duty
• Style: Finder Groove Face
• Type: Duplex Receptacle
• UPC: 781786005266
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Compatible Devices: All
• Voltage: 125
• Amperage: 20
• Connector Type: Plug-In
• Total Power Outlets: 2
• Specification Met: NEMA
• Manufacturer Part Number: BRY5362W
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White, Single Pack
• Connection Type: Duplex Receptacle
• NEMA Configuration: 5-20R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
