Product Description

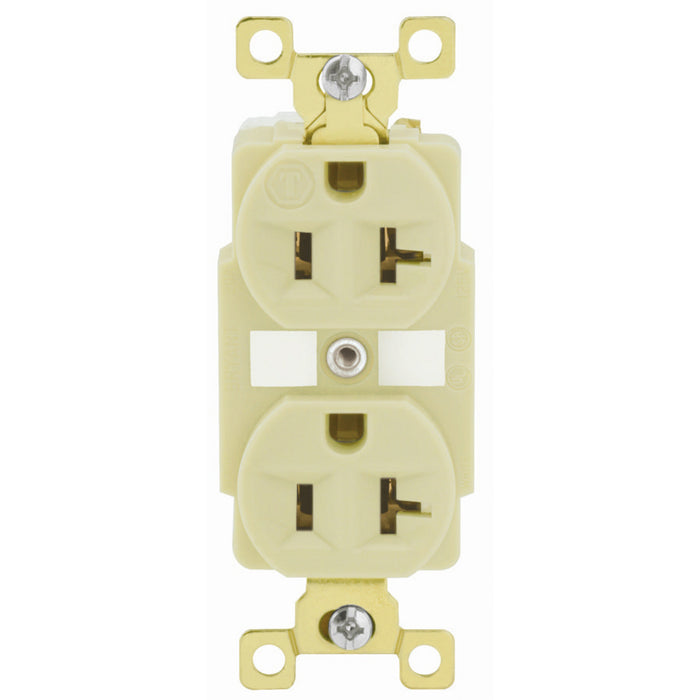

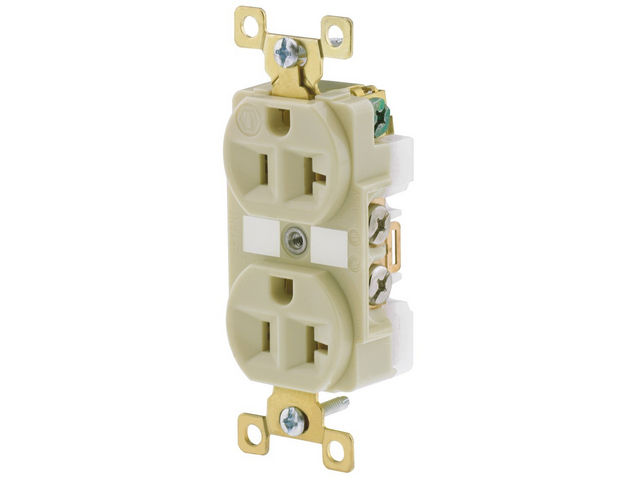

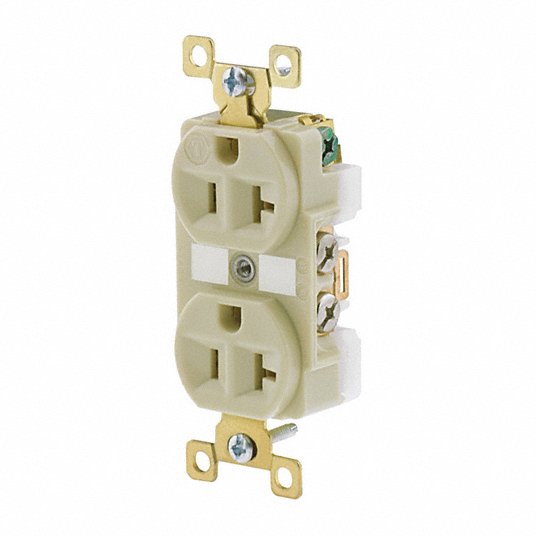

The BRYANT BRY5362I is a duplex receptacle designed for commercial and industrial use. Rated at 20A and 125V, this 2-pole, 3-wire grounding receptacle features a 5-20R configuration. It is suitable for standard installations where electrical performance and durability are required.
- Commercial/Industrial Grade

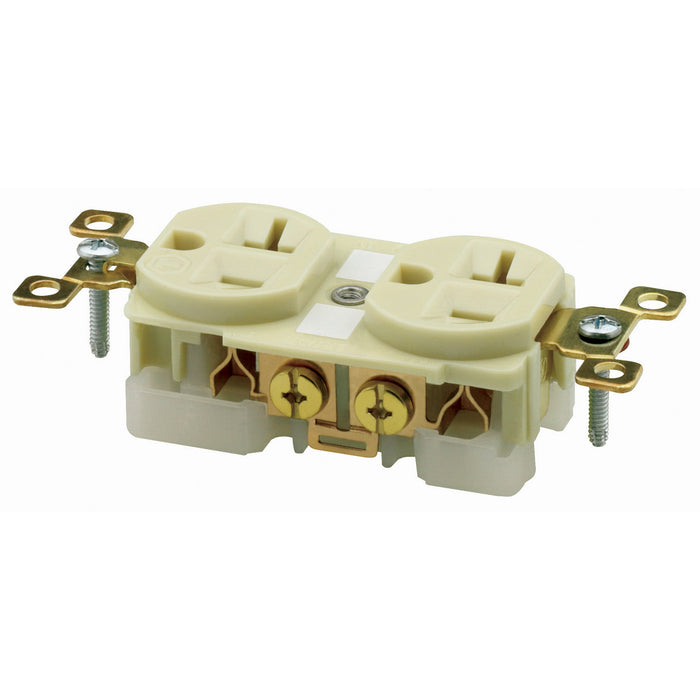

- Back and Side Wired connectivity
- Corrosion and Impact Resistant
Product Highlights
This receptacle provides basic, non-locking power connections and is ideal for environments needing a durable and reliable power solution.
Product Information
Standard Information
-
Brand: BRYANT
-
Manufacturer Part Number: BRY5362I
-
Country of Origin: China
Technical Specifications
-
Application: Extra Heavy Duty Industrial Specification Grade
-
Catalog Number: BRY5362I
-
Color: Ivory
-
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
-
EU RoHS Indicator: Yes
-
Item Type: Traditional Duplex
-
Material - Mounting Hardware: Screw Mounting
-
OEM Brand Name: Hubbell Bryant
-
Series: Extra Heavy Duty
-
Style: Finder Groove Face
-
Type: Duplex Receptacle
-
UPC: 781786005235
-
Amperage Rating: 20 A
-

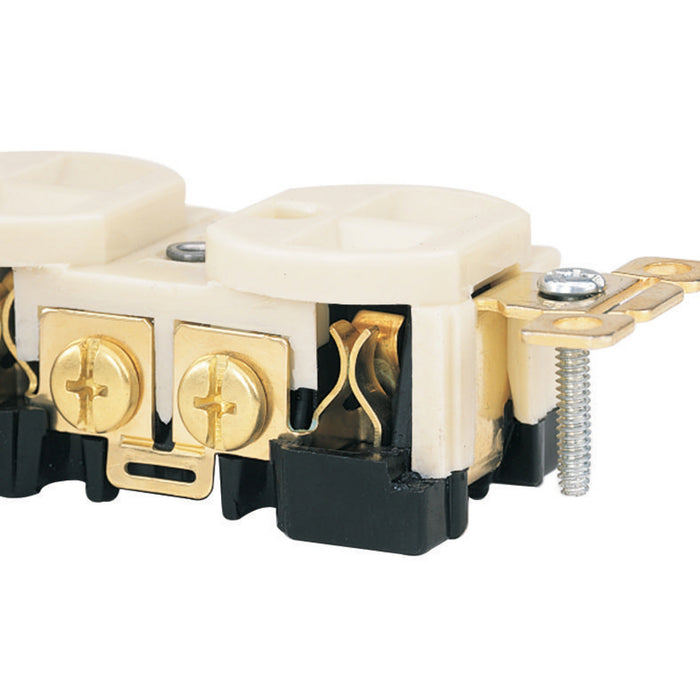

Connectivity: Back and Side Wired
-
Current Rating: 20 A
-
Phase: Single Phase
-
Voltage Rating: 125 V
-
Voltage Rating Description: 125 V
-
Wattage: 2500
-
Number Of Poles: 2-Pole
-
Number Of Wires: 3-Wire
-
Wire Size: #14 AWG to #12 AWG
-
Nema Rating: 5-20R
-
AFCI: No
-
Connection Orientation: Straight
-
Contact Material: Brass
-
Cover Type: No
-
For Location: Indoor
-
GFCI: No
-
Grade: Federal Specification
-
Grounding: Grounded
-
Horsepower Rating: 1 hp
-
Housing Color: Ivory
-
Housing Material: Nylon
-
IP Rating: IP20
-
Includes: Mounting Hardware
-
Includes Mounting Hardware: Yes
-
Market: Commercial; Industrial
-
Maximum Wire Size: 12 AWG
-
Minimum Wire Size: 14 AWG
-
Mount Hole Center-to-Center Height: 3.3 in
-
Mount Type: Flush
-
Mounting Location: Outlet Box
-
NEMA Receptacle Configuration: 5-20R
-
Number of Gangs: 1
-
Number of Outlets: 2
-
Number of Wall Plates Included: 0
-
Overall Depth: 1.2 in
-
Polarized: Yes
-
Receptacle Type: Duplex
-
Special Resistance: Corrosion Resistant
-
Standards: CSA Certified; Federal Specification W-C-59; NEMA WD-1 and WD-6; UL 498; UL Listed
-
Surge Protection: No
-
Wire Connection Type: Screw Terminals
-
Wiring Method: Back/Side
-
UNSPSC: 39121406
-
Material: MOLDED CHEMICAL RESISTANT HIGH IMPACT NYLON BRASS NICKEL PLATED STEEL YOKE MATERIAL
-
Configuration: 5-20R
-
Approval: UL 498 CSA NOM
-
Pole(s): 2
-
Features: CHEMICAL RESISTANT CORROSION RESISTANT IMPACT RESISTANT
-
Wiring: BACK SIDE WIRING
-
Brand: BRYANT
-
Pack Size: 1/ea
-
UOM: ea
-
Description: DUP RCPT, IND GRD, 20A 125V, 5-20R, IV
-
de Part Number: BRY53621
-
Manufacturer Catalog Number: BRY5362I
-
Mfr. Part Number: BRY5362I
