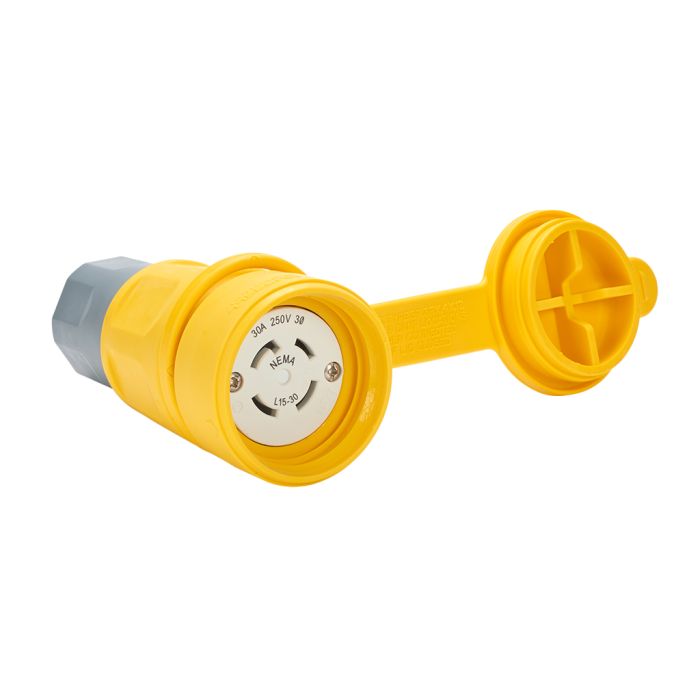

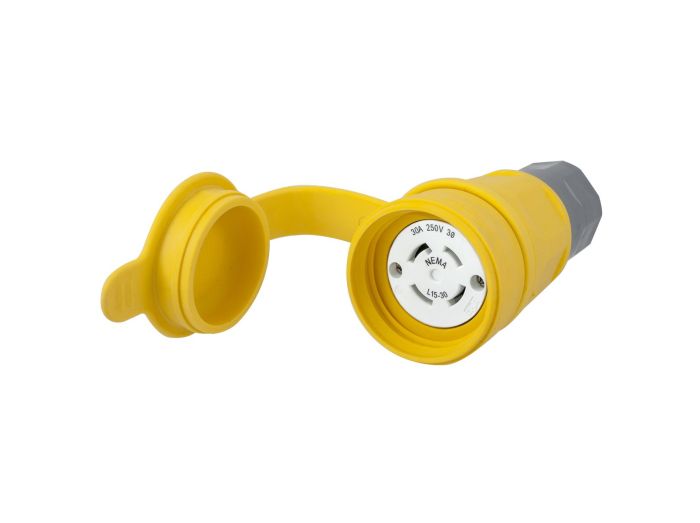

Bryant BRY29W75 Watertight Locking Connector 30A 250 VAC

Product Description

The BRYANT BRY29W75 is a watertight locking connector with cap, designed for 30A and 250 VAC applications. This female connector body features a water/dust-tight housing. It is suitable for various industrial and commercial applications requiring secure and environmentally protected electrical connections.

• Smooth body design minimizes collection points simplifying the wash down process
• Free-floating cap allows unwanted material to wash away during sanitation
• Unique cone seal prevents dirt and debris from collecting at the cable entrance

Product Highlights

Watertight locking connector with cap, 30A, 250 VAC, ideal for industrial and commercial use.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: BRY29W75
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: BRY29W75
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: L15-30R
• Color: Yellow
• Watertight: Yes
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Wire Size: Min. cords: #12/3 SJ, #16/3 S, #14/4 SJ, #18/4 S, #18/5 S;Max. cord: #8/3 S, #8/4 S, #10/5 S
• For Maximum Cable Diameter: 1.05 in
• For Minimum Cable Diameter: 0.385 in
• Item: Watertight Locking Connector
• NEMA Receptacle Configuration: L15-30R
• Voltage Rating: 250V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Connection Orientation: Straight
• Shrouded: Yes
• Grounding: Grounded
• Housing Color: Yellow
• Cap Type: Floating Cap
• Standards: ANSI C73, CSA C22.2 No. 42, UL 498
• Resistance Properties: Watertight
• Amps: 30 A
• IP Rating: IP69K
• Amperage Rating: 30 A
• Performance: Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300VMoisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12UV resistance:All exposed materials are UV stabilizedFlammability:UL94V2 (plugs, connectors, and interiors)
