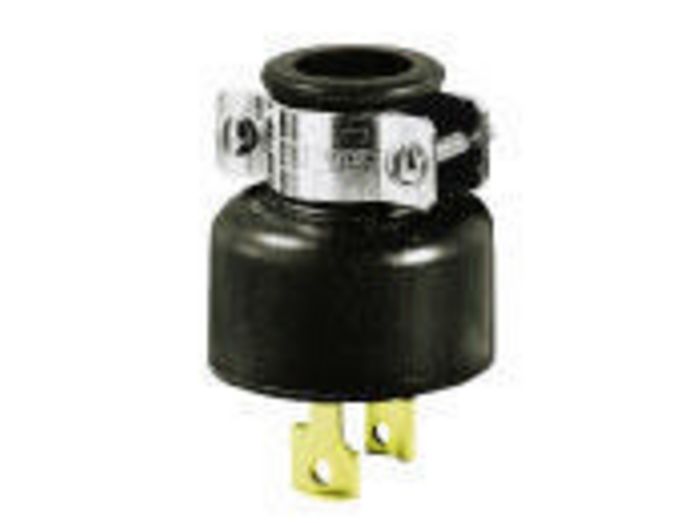

Bryant 7548 Locking Plug Nema L1-15P

Product Description

The BRYANT 7548 locking plug is an industrial male plug with a NEMA L1-15P configuration. Rated at 15A and 125V, this 2-pole, 2-wire non-grounding plug features screw terminals and an internal cord clamp. Ideal for heavy-duty industrial applications and portable equipment.

• 15A 125V
• 2-Pole 2-Wire Non Grounding
• Screw Terminal

Product Highlights

Industrial grade locking plug with screw terminals for secure connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7548

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 7548
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: 15A Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786629257
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 2-Wire
• Wire Size: #14 AWG to #10 AWG
• Nema Rating: L1-15P
• Cord Type: All Listed Portables
• Plug Type: Locking
• Rating - Amps: 15A
• Rating - Volts: 125V
• Ground: Non-Grounding
• NEMA: L1-15P
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Plug
• NEMA Configuration: L1-15P
