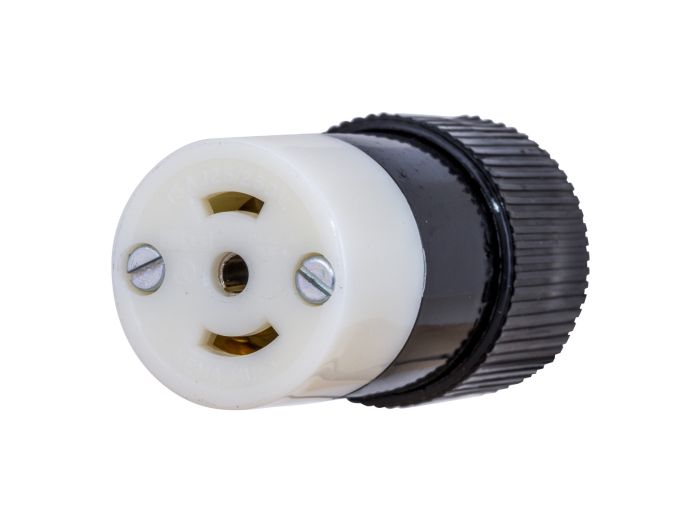

HUBBELL Bryant 7484NC Industrial Grade Midget Locking Connector 15 Amp 125/250V NEMA ML-3R
HUBBELL Bryant 7484NC Industrial Grade Midget Locking Connector 15 Amp 125/250V NEMA ML-3R

Bryant 7484NC Industrial Grade Midget Locking Connector 15 Amp 125/250V NEMA ML-3R

HUBBELL
Brand: HUBBELL
SKU: 7484NC
Availability: In Stock

Ships same day if ordered by 12 pm
$46.41
$46.41
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BRYANT 7484NC is an industrial-grade midget locking connector. Designed for reliable and safe electrical connections, this connector features impact and chemical-resistant nylon construction. It accommodates cord diameters of 0.281 inch - 0.625 inch and is suitable for heavy-duty industrial applications.

  • Impact/chemical-resistant nylon construction
  • Nonmetallic quad-gripper cord grip
  • Captive Terminal screws are color-coded for easy identification

Product Highlights

Industrial grade midget locking connector with nylon housing for tighter fit applications.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 7484NC
Technical Specifications
Brand
Hubbell
Voltage
250 Volts
Product Dimensions
30"D x 8"W x 6"H
Material
Nylon
Specification Met
CSA, UL
Connector Type
Clamp
Number of Poles
3
Manufacturer Part Number
7484NC
Manufacturer
Bryant Electric
Product Series
MIDGET
Family Series
Bryant Electric Plugs & Receptacles, Midget Series
Description
Locking Devices, Bryant Midget Locking, Industrial, Female Connector Body, 15A 125/250V, 3-Pole 3-Wire Non Grounding, ML-3R, Screw Terminal, Black White
Current Rating
15 A
Number of Wires
3
Body Type
Straight
Connection Type
Connector
NEMA Configuration
ML-3R
Watertight
No
Isolated Ground
No
Net Weight
0.085 lbs
Gross Weight
0.1 lbs
Application
Heavy Duty Industrial
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
Yes
Insulation
Insulated Body
Item Type
15A Midget Female Connector
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Bryant
Style
Non-Grounding
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type
Connector Body
UPC
781786669352
Dimensions
1.25 in x 1.25 in x 2.15 in
Display Size
Midget NEMA Locking
Height
2.15 in
Length
1.25 in
Width
1.25 in
Amperage Rating
15 A
Connectivity
Screw Terminals
Current Amperage Description
15 Amp
Voltage Rating
125/250 V
Voltage Rating Description
125/250 V
Conductor Range
#14 AWG
Number of Conductors
3-Wire Non-Grounding
Number Of Poles
3-Pole
Number Of Wires
3-Wire
Wire Size
#18 AWG to #12 AWG
Nema Rating
ML-3R
Model
7484NC
Condition
New
