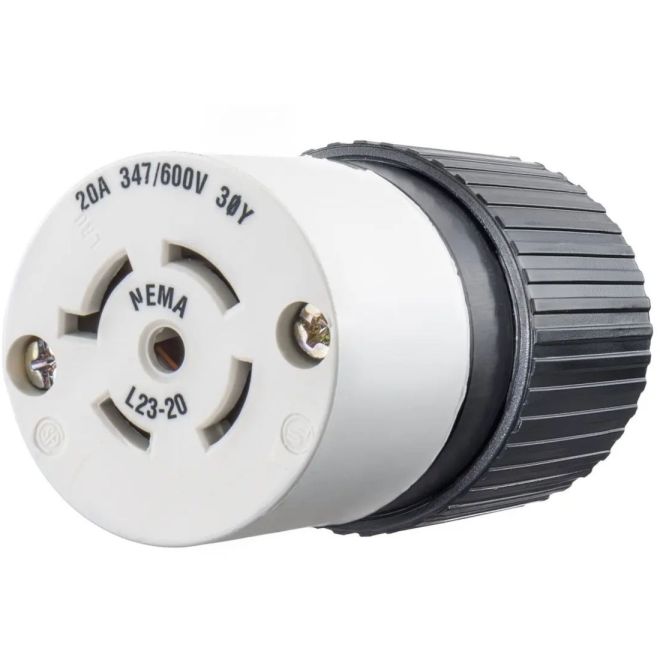

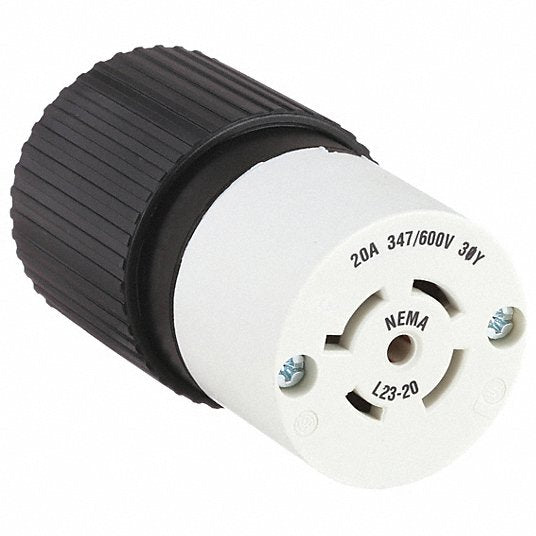

Bryant 72320nc Locking Connector 347/600vac

Product Description

The BRYANT 72320NC is a locking connector designed for inline connections to supply equipment with power. These Tech-Spec® plugs and connectors feature a non-slip, wide-ribbed handgrip and a heavy-duty double wall housing. Constructed from tough, impact/chemical resistant nylon, it is easy to assemble and automatically centers and secures the cord. An elastomeric dust seal prevents dust, moisture and contaminants.

• Non-slip, wide-ribbed handgrip
• Heavy-duty double wall housing
• Impact/chemical resistant nylon construction

Product Highlights

The BRYANT 72320NC locking connector is durable and easy to assemble, making it suitable for industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72320NC
• Country of Origin: United States

Technical Specifications

• Brand: BRYANT
• Type: Locking Connectors
• MPN: 72320NC
• UPC: 781786702691
• Country of Origin: United States
• Connector Type: Locking
• Rating - Amps: 20A
• Rating - Volts: 347/600V 3 PhaseY
• Number of Poles: 4P
• Number of Wires: 5
• Ground: Grounding
• NEMA: L23-20R
• Cord Diameter: 0.465 - 1.150
• Material: Nylon
• Cap Type: No Cap or Cover
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Current Rating: 20 A
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Horsepower Rating: 1 hp
• Housing Color: Black; White
• Housing Material: Nylon
• IP Rating: IP20
• Maximum Operating Temperature: 75 °C
• Maximum Wire Size: 12 AWG
• Midget Locking: No
• Minimum Operating Temperature: -40 °F
• Minimum Wire Size: 18 AWG
• NEMA Configuration: L23-20
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: L23-20R
• Overall Length: 2.13 in
• Phase: Three
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: CSA Certified; UL Listed
• Voltage Rating: 347/600V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
• Manufacturer Alternate Number: 72320-NC
• UL Rating Type: NEMA L23-20R
• Rated Current: 20A
• Power Phase: 3-Phase
• Number of Pins/Wires: 5
• Height (mm): 54.1mm
• Width (mm): 54.1mm
• Depth (Length) (mm): 99.1mm
• Weight (lbs): 0.35
• UOM: ea
