Bryant 72320fr flush receptacle nma l23-20r

Product Description

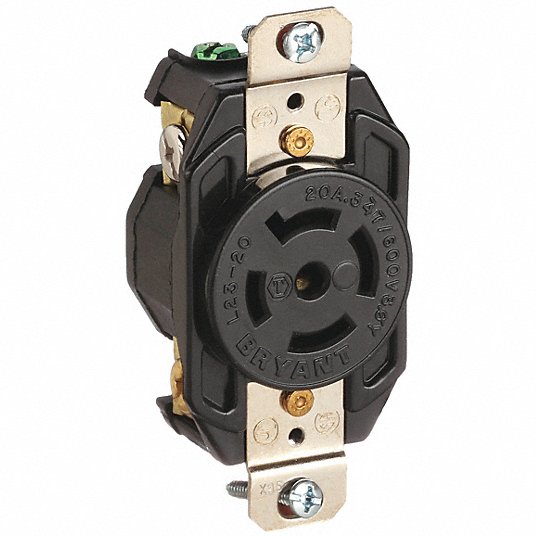

The BRYANT 72320FR is a flush receptacle designed for general-purpose use, supporting a single electrical plug, often used for dedicated circuits for appliances or equipment. It features terminations with screws that tighten down on conductors to secure them. This locking receptacle is corrosion resistant and suitable for indoor and dry locations.

• Features screw terminals for secure wire connections.
• Constructed with a nylon housing material for durability.
• Includes mounting hardware for easy installation.

Product Highlights

The BRYANT 72320FR is a durable and reliable locking receptacle suitable for industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 72320FR
• Country of Origin: USA

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 72320FR
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Contact Material: Copper Alloy
• Current Rating: 20 A
• Flange Material: Composite
• Flange Type: Non-Flanged
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Black
• Housing Material: Nylon
• Hub Type: Dead End
• IP Rating: Not Rated
• Includes: Mounting Hardware
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.28 in
• Mount Type: Flush
• NEMA Configuration: L23-20
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: L23-20R
• Number of Gangs: 1
• Number of Outlets: 1
• Number of Poles: 4
• Number of Wires: 5
• Phase: Three
• Polarized: Yes
• Resistance Properties: Corrosion Resistant
• Shrouded: No
• Standards: UL 498
• Voltage Rating: 347/600V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121406
• Grade: Industrial
• Application: Extra Heavy Duty Industrial Specification Grade
• Amps: 20
• Material - Mounting Hardware: Screw Mounting
• Catalog Number: 72320FR
• Type: SINGLE LOCKING
• Material: NYLON FACE, MOLDED REINFORCED THERMOPLASTIC POLYESTER BASE
• MOUNTING: FLUSH
• APPROVAL: UL 498, CSA, CE, NOM
• GROUND TYPE: GROUNDING
• CONSTRUCTIONAL FEATURE: IMPACT RESISTANT, CHEMICAL RESISTANT
• CONFIGURATION: L23-20R
• Wiring: BACK, SIDE
• Height: 1.24 in
• Length: 3.28 in
• Width: 1.70 in
