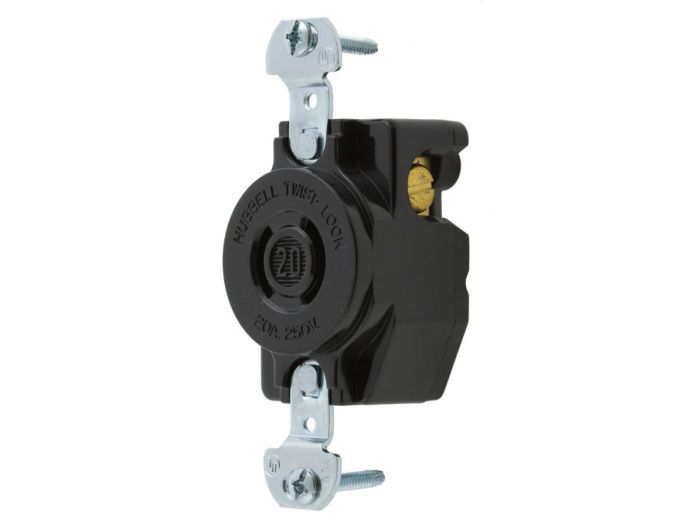

Bryant 7210B flush receptacle 20A 250V L2-20R

Product Description

The BRYANT 7210B is an industrial grade flush receptacle. Rated at 20A and 250V, this 2-pole, 2-wire non-grounding receptacle features a screw terminal and NEMA rating of L2-20R. It is suitable for extra heavy-duty industrial applications.

• Rated for 20A and 250V
• 2-Pole 2-Wire Non-Grounding
• Screw Terminal

Product Highlights

Industrial grade flush receptacle with a NEMA rating of L2-20R.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 7210B
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 7210B
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Item Type: 20A Single Nylon Receptacle
• Material: Composite, Slate, Nylon, Thermoplastic
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Outlets
• Height: 1 in
• Length: 3.28 in
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250V
• Number Of Poles: 2-Pole
• Number Of Wires: 2-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L2-20R
• Manufacturer Part Number: 7210B
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Locking Devices, Industrial, Flush Receptacle, 20A 250V,2-Pole 2-Wire Non-Grounding, L2-20R, Screw Terminal, Black
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Receptacle
• NEMA Configuration: L2-20R
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Plate Design: Single Outlet
• Suitable For: Wall
• Current Type: AC
• Number of Outlets: 1
• Outlet Configuration: Single
• Outlet Style: Single
• Number in Pack: 1
• Mounting Style: Flush, Wall, Screw
• Number of Phases: 1
• Model: Twist Lock
• Resistance Properties: Impact Resistant, Rust Resistant
