Bryant 71930FR Flush Receptacle Nma L19-30R

Product Description

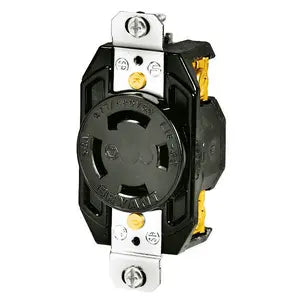

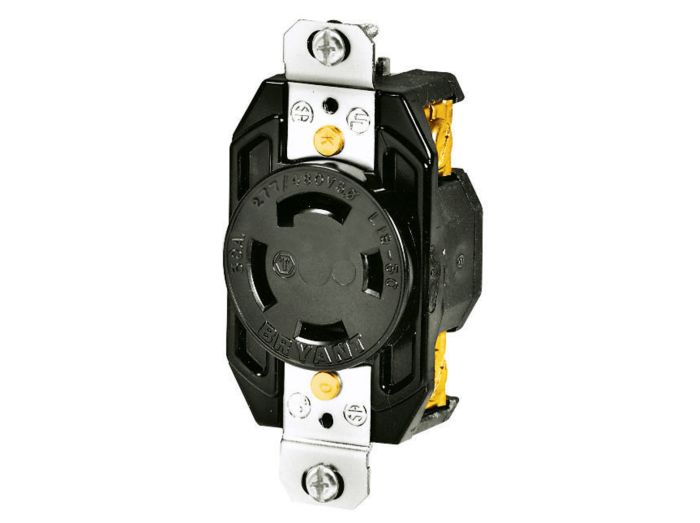

The Bryant 71930FR flush receptacle is a locking device designed for industrial applications. Rated at 30A, 277/480V AC, it features a 4-pole, 4-wire non-grounding configuration and NEMA L19-30R. The receptacle has screw terminals and a black finish.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction and secure blade retention.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71930FR
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 71930FR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 30 A
• Number of Poles: 4
• Number of Wires: 4
• Voltage: 480VAC
• Phase: 3Y
• Body Type: Straight
• Connection Type: Receptacle
• NEMA Configuration: L19-30R
• Watertight: No
• Isolated Ground: No
• Color: Black
• Approvals: CSA, UL
• Application: Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786699434
• Height: 1.24 in
• Length: 3.28 in
• Width: 1.7 in
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Voltage Rating: 3 Phase Y 277/480 VAC
• Voltage Rating Description: 3 Phase Y 277/480V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Plug Type: NEMA L19-30R
• Number of Phases: 3
• Current Type: AC
• Outlet Configuration: Round
