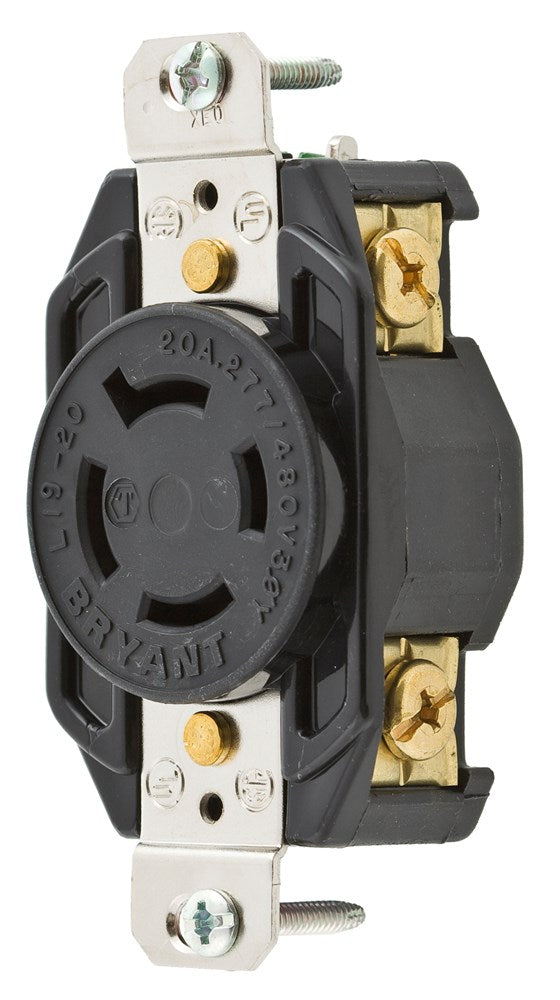

Bryant 71920FR Locking Receptacle 20A 277/480V NEMA L19-20R

Product Description

The BRYANT 71920FR locking receptacle is rated for 20A and 277/480V. This industrial flush nylon receptacle is a 4-pole, 4-wire non-grounding device with screw terminals. It is suitable for indoor dry environments unless protected by additional means.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade locking receptacle with robust construction and easy installation. Ideal for industrial applications requiring a secure and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71920FR
• Country of Origin: Mexico

Technical Specifications

• MPN: 71920FR
• Brand: Bryant
• UPC: 781786698932
• Country of Origin: Mexico
• Category: Business & Industrial
• Type: Receptacle
• Current Rating: 20 A
• Voltage Rating: 277/480V AC
• Number of Poles: 4
• Number of Wires: 4
• Grounding: Non-Grounded
• NEMA Rating: L19-20R
• Mounting: Flush
• Material: Thermoplastic with Nylon Face
• Face OD: 1.56 in
• UNSPSC: 39121406
• Wattage: 14,400 W
• Brand ID: BRYANT
• Catalog Number: 71920FR
• EU RoHS Indicator: Yes
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Item Type: 20A Single Nylon Receptacle
• Material - Mounting Hardware: Screw Mounting
• Phase: 3
• Wire Size: #14 AWG to #8 AWG
• Wire Connection Type: Screw Terminals
• Housing Color: Black
• Cover Type: No Cover
• Standards: CSA Certified, UL Listed
• Resistance Properties: Corrosion Resistant
• Flange Type: Non-Flanged
