Product Description

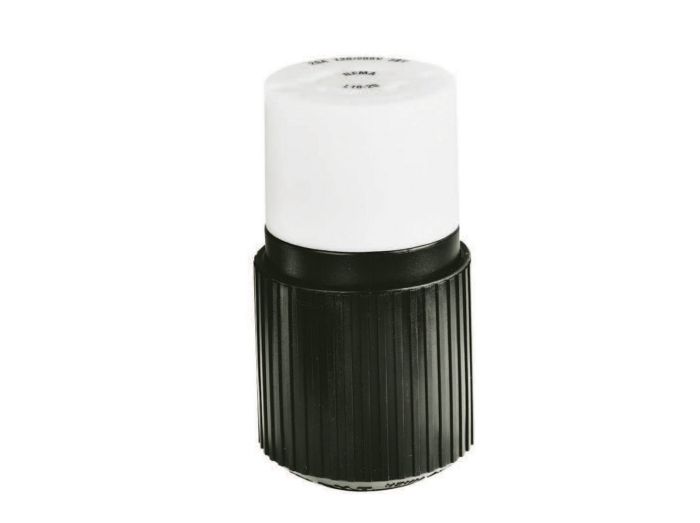

The BRYANT 71820NC is an industrial-grade female nylon connector body. Designed for heavy-duty applications, it supports 20A 3-Phase Wye 120/208V AC, and features a 4-Pole 4-Wire non-grounding configuration. The connector body is constructed from impact and chemical-resistant nylon, ensuring durability and long-lasting performance in demanding environments.
- Resilient dust seal helps prevent moisture and contaminants from entering the wiring chamber.
- Internal self-centering triple gripper cord grip provides secure cord retention and reduces installation time.
- Impact/chemical resistant, toughened nylon construction for extra durability.
Product Highlights
This Bryant connector body ensures reliable and safe electrical connections in industrial settings. Its robust design and user-friendly features make it an ideal choice for various heavy-duty applications.
Product Information
Standard Information
-
Brand: BRYANT
-
Manufacturer Part Number: 71820NC
-
Country of Origin: United States
Technical Specifications
-
Manufacturer: Bryant Electric
-
Part Number: 71820NC
-
Item Weight: 8 ounces
-
Product Dimensions: 3.9 x 1.89 x 2.13 inches
-
Item model number: 71820NC
-
Item Package Quantity: 1
-
Included Components: Electrical Connector Body
-
Batteries Required?: No
-
ASIN: B003A4EDPQ
-
Date First Available: February 26, 2010
-
Application: Heavy Duty Industrial
-
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
-
EU RoHS Indicator: Yes
-
Insulation: Insulated Body
-
Item Type: 20A Triple Gripper Nylon Connector
-
Material: Composite
-
Material - Mounting Hardware: Cord Mounted
-
OEM Brand Name: Hubbell Bryant
-
Style: Internal Cord Clamp
-
Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
-
Type: Connector Body
-
UPC: 781786698192
-
Display Size: Standard Sized Product
-
Height: 3.9 in
-
Length: 2.13 in
-
Amperage Rating: 20 A
-
Connectivity: Screw Terminals
-
Current Amperage Description: 20 Amp
-
Current Rating: 20 A
-
Voltage Rating: 3 Phase Y 120/208 VAC
-
Voltage Rating Description: 3 Phase Y 120/208 VAC
-
Conductor Range: #14 AWG to #12 AWG
-
Number of Conductors: 4-Wire Non-Grounding
-
Number Of Poles: 4-Pole
-
Number Of Wires: 4-Wire
-
Wire Size: #18 AWG to #8 AWG
-

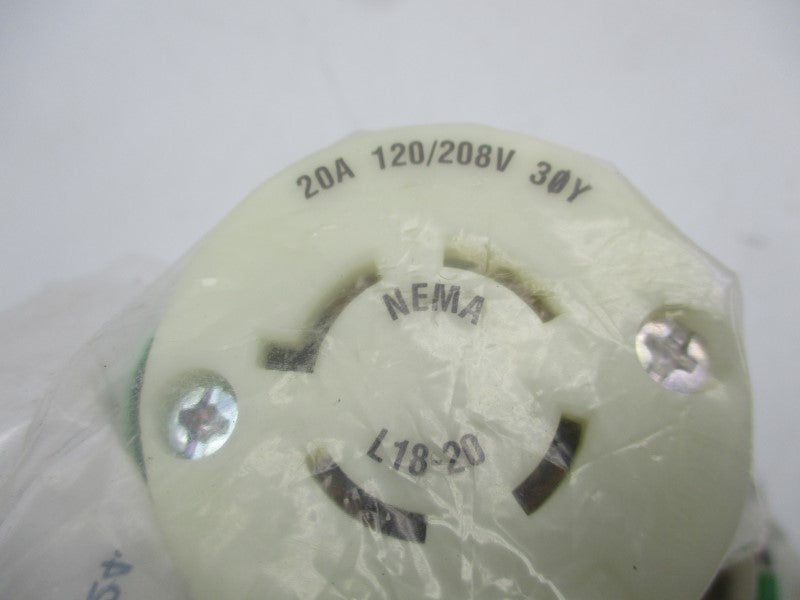

Nema Rating: L18-20R
-
Family Series: Bryant Electric Plugs & Receptacles
-
Voltage: 120 VAC, 208 VAC
-
Phase: 3Y
-
Body Type: Straight
-
Connection Type: Connector
-
Watertight: No
-
Isolated Ground: No
-
Approvals: CSA, UL
-
Net Weight: 0.325 lbs
-
Gross Weight: 0.35 lbs
