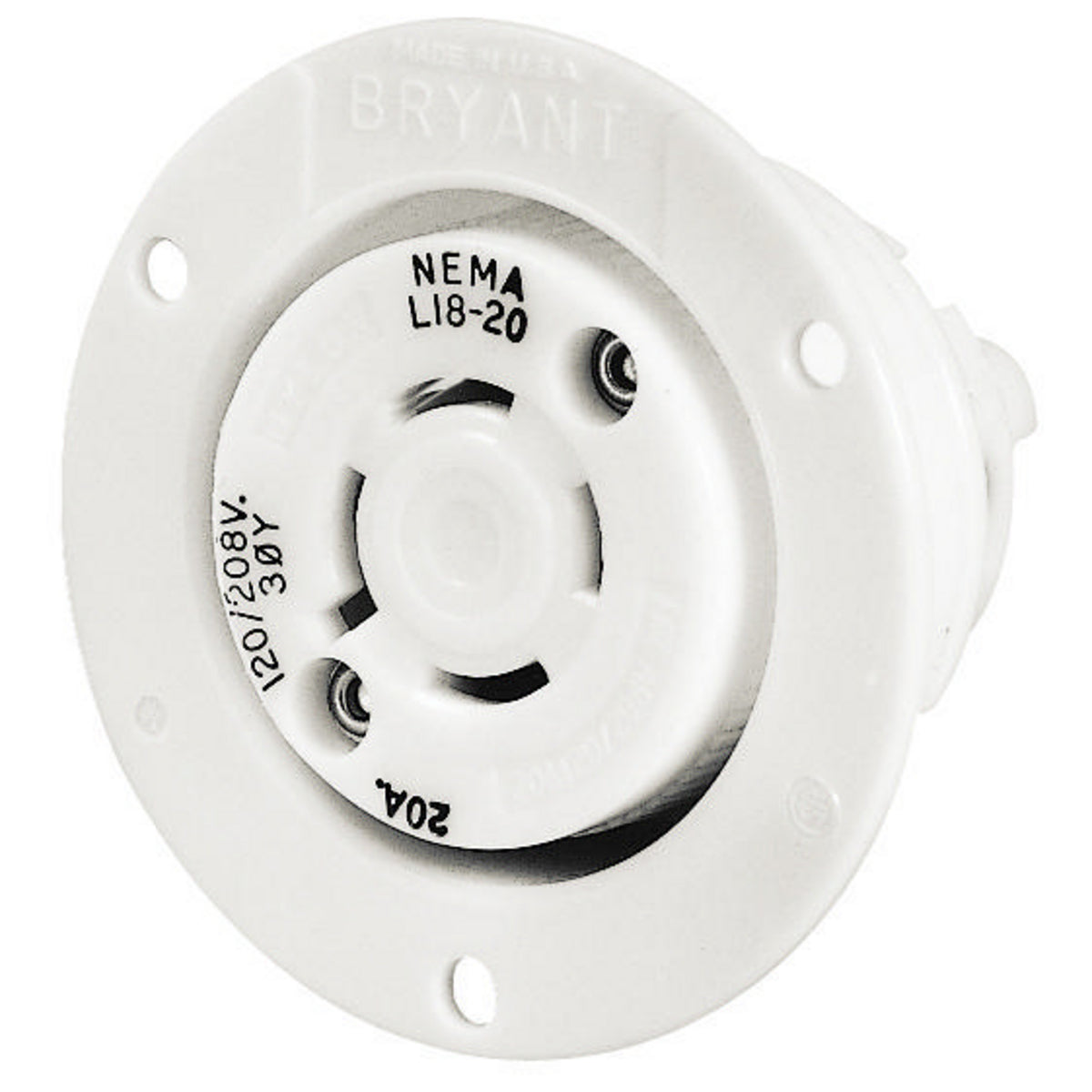

Bryant 71820ER Flanged Receptacle 20A 3-Phase Wye 120/208V AC L18-20R

Product Description

The BRYANT 71820ER is an industrial flanged receptacle, designed for 20A 3-Phase Wye 120/208V AC applications. Constructed with impact-resistant thermoplastic and featuring backwired terminations for easy installation. Suitable for extra heavy-duty industrial use and indoor dry environments. Includes screw terminals and mounting screws.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial grade flanged receptacle with robust construction and easy installation, ideal for industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71820ER
• Country of Origin: US

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 71820ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786698109
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Three Phase
• Voltage Rating: 3 Phase Y 120/208 VAC
• Voltage Rating Description: 3 Phase Y 120/208V AC
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L18-20R
• Voltage: 120 or 208
• Wattage: 4,160 W
