Bryant 71630NC Locking Connector 30A 480V L16-30R

Product Description

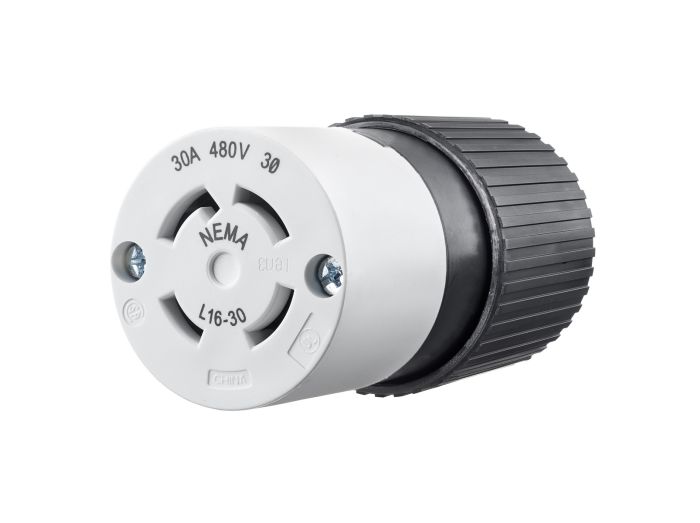

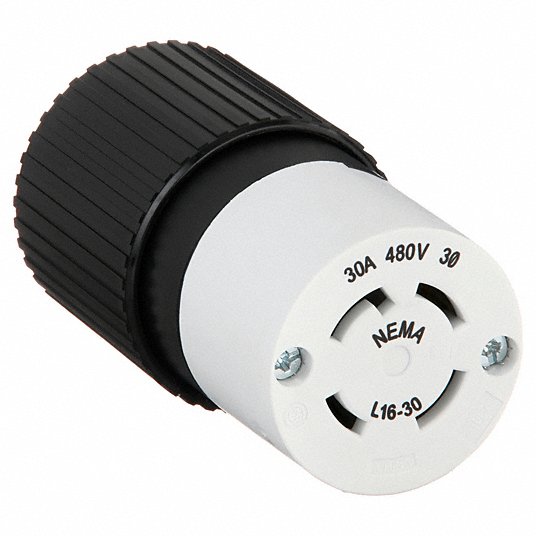

The BRYANT 71630NC is an industrial female connector body. This locking connector is rated at 30A, 3-Phase Delta 480V AC, and features a 3-Pole 4-Wire Grounding configuration. It has screw terminals and is constructed from impact/chemical resistant, toughened nylon.

• Face and body feature alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Industrial grade locking connector with alignment keys and secure cord retention.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71630NC
• Country of Origin: China

Technical Specifications

• Manufacturer: Bryant
• Manufacturer #: 71630NC
• Parts Town #: BYNT71630NC
• Replaced by PT #: CRR71630NC
• Units: Each
• Fits Models: View Models List
• Length: 2.13 in
• Width: 2.13 in
• Height: 3.9 in
• Weight: Not Available
• Application: Heavy Duty Industrial
• Catalog Number: 71630NC
• Color: Black, White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Locking Connector
• UPC: 781786697195
• Display Size: Standard Sized Product
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Voltage Rating: 480 VAC
• Voltage Rating Description: 3 Phase 480 VAC
• Conductor Range: #12 AWG to #8 AWG
• Number of Conductors: 4-Wire Grounding
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L16-30R
• Standards - RoHS Compliance Status: CM
• Carton Quantity: 10
• Pallet Quantity: 1680
• Manufacturer Part Number: 71630NC
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Locking Devices, Industrial, Female Connector Body, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30R, Screw Terminal, Black and White
• Phase: 3
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: L16-30
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Net Weight: 0.33 lbs
• Gross Weight: 0.4 lbs
• Cap Type: No Cap or Cover
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.95 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 10 hp
• Housing Color: Black; White
• Housing Material: Nylon
• IP Rating: IP20
• Maximum Operating Temperature: 75 °C
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Operating Temperature: -40 °F
• Minimum Wire Size: 18 AWG
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: L16-30R
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
• Input Voltage: 480
• Output Voltage: 480 V
• Country of Origin: United States
