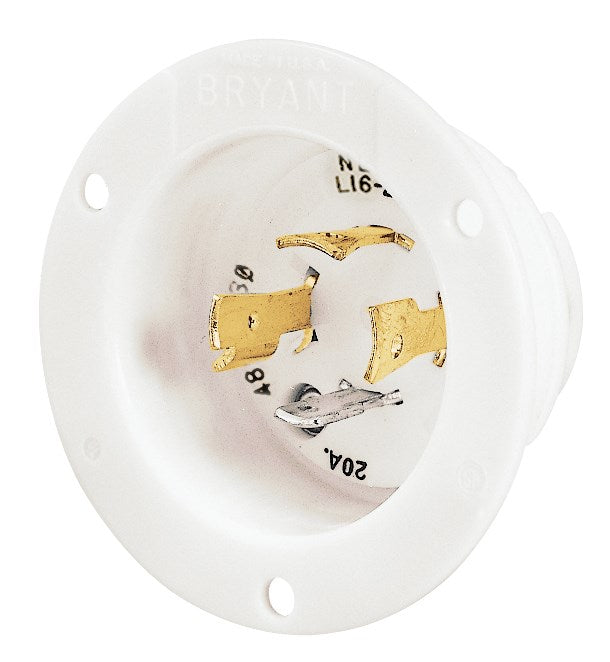

Bryant 71620MB Flanged Inlet-N L16-20P

Product Description

The BRYANT 71620MB is a locking flanged inlet with a NEMA configuration of L16-20P. Constructed from impact-resistant thermoplastic, it features backwired terminations for easy installation. Designed for industrial use, it supports 20A and 480V 3-Phase power systems.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial flanged inlet with robust construction and easy installation.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71620MB
• Country of Origin: UNITED STATES

Technical Specifications

• Type: Flanged Inlet
• Rating - Amps: 20A
• Rating - Volts: 480V 3 Phase
• Number of Poles: 3P
• Number of Wires: 4
• Ground: Grounding
• NEMA: L16-20P
• Material: Composite
• Color: White
• Connector Type: Inlet
• Grade: Industrial
• Grounding Style: Self-Grounding
• Amperage: 20
• Voltage: 480V
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Resistance Features: Impact-Resistant
• Number Of Phases: 3
• Standards: UL Listed; CSA Certified
• UNSPSC Code: 39121400
• Amperage Rating: 20 A
• Brand ID: BRYANT
• Carton Quantity: 10
• Catalog Number: 71620MB
• Current Rating: 20 A
• Dielectric Strength: Withstands 3000V Minimum
• EU RoHS Indicator: Yes
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• FV_Current/Amperage Rating Description: 20 Amp
• FV_Voltage Rating Description: 3 Phase 480V AC
• Insulation: Insulated Body
• Item Type: 20A Flanged Inlet
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Size: 3.06 in x 3.06 in x 2.03 in
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
• UPC: 781786696860
• Voltage Rating: 3 Phase 480 VAC
• Voltage Rating Description: 3 Phase 480V AC
• Wattage: 9,600 W
• Wire Size: #18 AWG to #8 AWG
• Application: Extra Heavy Duty Industrial
• Style: Equipment Base
• Dimensions: 3.06 in x 3.06 in x 2.03 in
• Display Size: Standard Sized Product
• Height: 2.03 in
• Length: 3.06 in
• Width: 3.06 in
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Nema Rating: L16-20P
