Bryant 71530NC Locking Connector 30A

HUBBELL
Brand: HUBBELL
SKU: 71530NC
Availability: In Stock

Ships same day if ordered by 12 pm
$136.63
$136.63
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

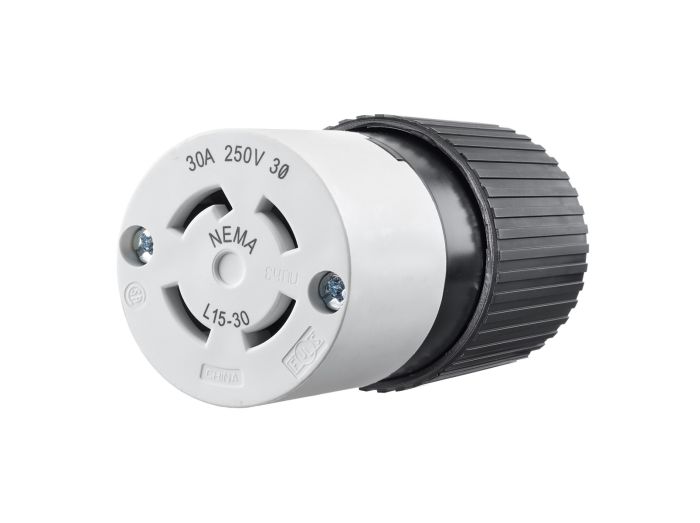

The BRYANT 71530NC locking connector is an industrial female connector body. Rated at 30A 3-Phase Delta 250V AC, it features a 3-pole 4-wire grounding configuration and L15-30R NEMA rating. Constructed from impact/chemical resistant nylon, it ensures durability in demanding environments.

  • Face and body feature alignment keys for easy assembly
  • Amperage, voltage and NEMA configuration imprinted on face for easy identification
  • Impact/chemical resistant, toughened nylon construction

Product Highlights

Ideal for heavy-duty industrial applications, this connector offers secure cord retention and easy assembly.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 71530NC
  • Country of Origin: CN
Technical Specifications
Catalog Number
71530NC
Application
Heavy Duty Industrial
Color
Black, White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
Yes
Insulation
Insulated Body
Item Type
30A Triple Gripper Nylon Connector
Material
Composite
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Bryant
Style
Internal Cord Clamp
Temperature Rating
Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
Type
Connector Body
UPC
781786696198
Dimensions
2.13 in x 2.13 in x 3.90 in
Height
3.9 in
Length
2.13 in
Width
2.13 in
Amperage Rating
30 A
Connectivity
Screw Terminals
Current Amperage Description
30 Amp
Current Rating
30 A
Voltage Rating
3 Phase 250 VAC
Voltage Rating Description
3 Phase 250 VAC
Conductor Range
#12 AWG to #8 AWG
Number of Conductors
4-Wire Grounding
Number Of Poles
3-Pole
Number Of Wires
4-Wire
Wire Size
#18 AWG to #8 AWG
Nema Rating
L15-30R
Standards - RoHS Compliance Status
CM
Manufacturer Part Number
71530NC
Manufacturer
Bryant Electric
Family Series
Bryant Electric Plugs & Receptacles
Voltage
250 VAC
Phase
3
Body Type
Straight
Connection Type
Connector
Watertight
No
Isolated Ground
No
Net Weight
0.33 lbs
Gross Weight
0.35 lbs
Brand
Bryant Electric
Cord Diameter
0.465 to 1.15 in
Country of Origin
CN
Grade
Industrial
Manufacturer Name
Hubbell
Terminal Type
Screw
