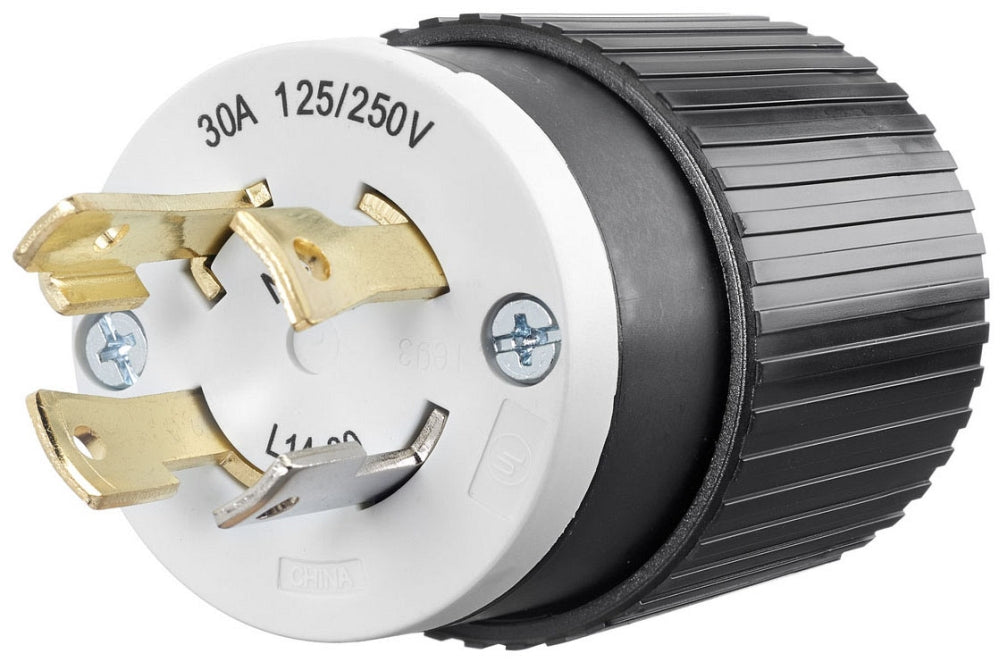

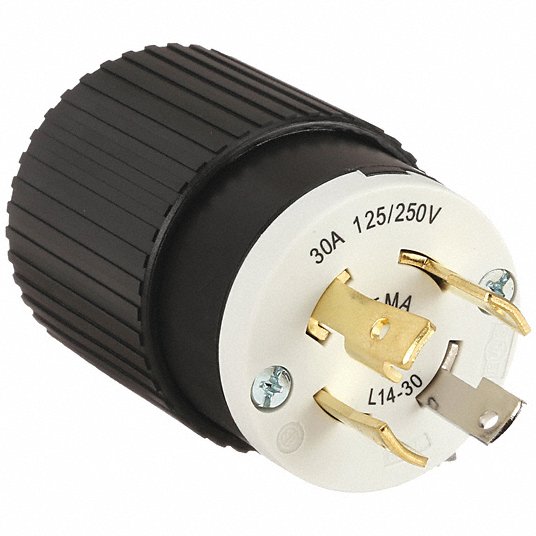

Bryant 71430NP Locking Device Plug 30A 125/250V NEMA L14-30P

Product Description

The BRYANT 71430NP is a locking plug designed for secure cable-to-plug connections in industrial and commercial power applications. It is a 30A 125/250V locking plug with NEMA L14-30P configuration. It is suitable for environments where vibration or movement could disrupt connections.

• Patented Triple-Gripper Cord Clamp Automatically Centers the Cord Internally and Secures it Using a Unique Radius Teeth Design
• Tough, Impact and Chemical Resistant Nylon Housing
• Double-Wall Construction

Product Highlights

This locking plug provides secure connections for industrial and commercial power applications. It features a robust design for durability and reliable performance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71430NP
• Country of Origin: China

Technical Specifications

• Approval: UL, CSA
• Color: Black/White
• Configuration: NEMA L14-30
• Constructional Feature: Impact/Chemical Resistant
• Ground Type: Grounding
• Manufacturer Name: Bryant
• Material: Nylon
• Number Of Poles: 3
• Number Of Wires: 4
• PDW ID: ECL8225
• Product UPC: 781786695429
• Type: Internal Cord Clamp, Triple Gripper, Male, Extra Heavy Duty, Standard
• Application: Extra Heavy Duty Industrial
• Catalog Number: 71430NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Triple Gripper Nylon Plug
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• UPC: 781786695429
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L14-30P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Brand: Bryant Electric
• Amperage: 30 Amps
• Manufacturer: Bryant Electric
• Model: 71430NP
• Grade: Industrial
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Screw
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• For Environment: Dry
• For Maximum Cable Diameter: 1.15 in
• For Minimum Cable Diameter: 0.465 in
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Color: Black; White
• Housing Material: Composite
• IP Rating: IP20
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 18 AWG
• NEMA Configuration: L14-30
• NEMA Plug Configuration: L14-30P
• Number of Blades: 4
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Wiring Style: Standard
• UNSPSC: 39121402
