Bryant 71420MB Flanged Inlet-N L14-20P

HUBBELL
Brand: HUBBELL
SKU: 71420MB
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$59.60
$59.60
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

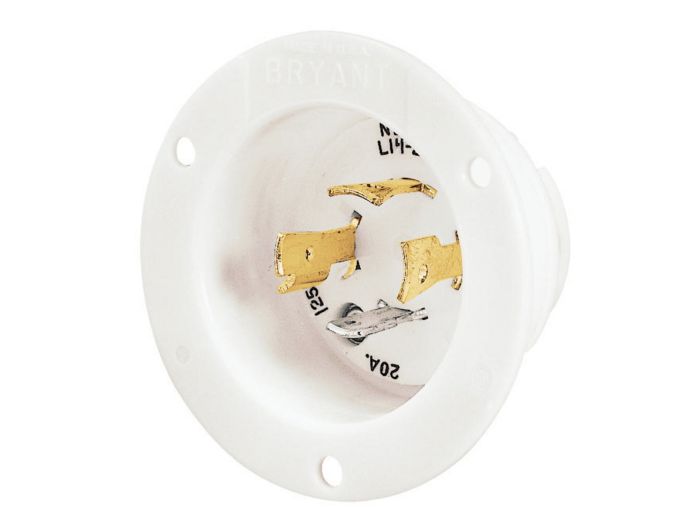

The BRYANT 71420MB flanged inlet is a locking flanged inlet with a NEMA rating of L14-20P. This 20A, 125/250V inlet features impact resistant thermoplastic construction and backwired terminations for ease of installation. It is a 3-pole, 4-wire grounding flanged inlet with screw terminals.

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws

Product Highlights

The BRYANT 71420MB flanged inlet is ideal for industrial applications requiring a durable and reliable power connection.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 71420MB
  • Country of Origin: United States

Technical Specifications

  • Type: Electrical Plug
  • Rating - Amps: 20A
  • Rating - Volts: 125/250V
  • Number of Poles: 3P
  • Number of Wires: 4
  • Ground: Grounding
  • NEMA: L14-20P
  • Material: Nylon
  • Application: Extra Heavy Duty Industrial
  • Catalog Number: 71420MB
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • EU RoHS Indicator: Yes
  • Insulation: Insulated Body
  • Item Type: 20A Flanged Inlet
  • Material - Mounting Hardware: Screw Mounting
  • OEM Brand Name: Hubbell Bryant
  • Style: Equipment Base
  • Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact
  • UPC: 781786695160
  • Amperage Rating: 20 A
  • Connectivity: Screw Terminals
  • Current Amperage Description: 20 Amp
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 3000V Minimum
  • Voltage Rating: 125/250 VAC
  • Voltage Rating Description: 125/250V AC
  • Number Of Poles: 3-Pole
  • Wire Size: #18 AWG to #8 AWG
  • Manufacturer Part Number: 71420MB
  • Manufacturer: Bryant Electric
  • Family Series: Bryant Electric Plugs & Receptacles
  • Voltage: 125 VAC, 250 VAC
  • Body Type: Straight
  • Connection Type: Flanged Inlet
  • NEMA Configuration: L14-20P
  • Watertight: No
  • Isolated Ground: No
  • Approvals: CSA, UL
  • Brand: Hubbell
  • Country of Origin: United States
  • Category: Business & Industrial
