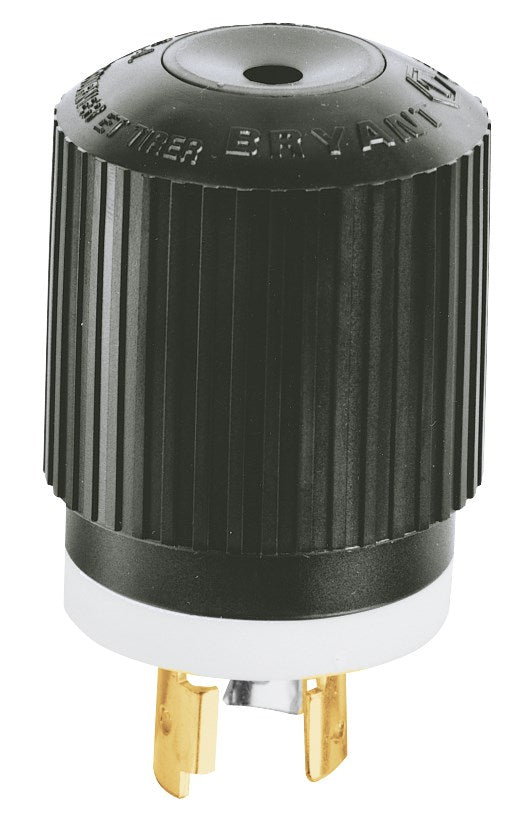

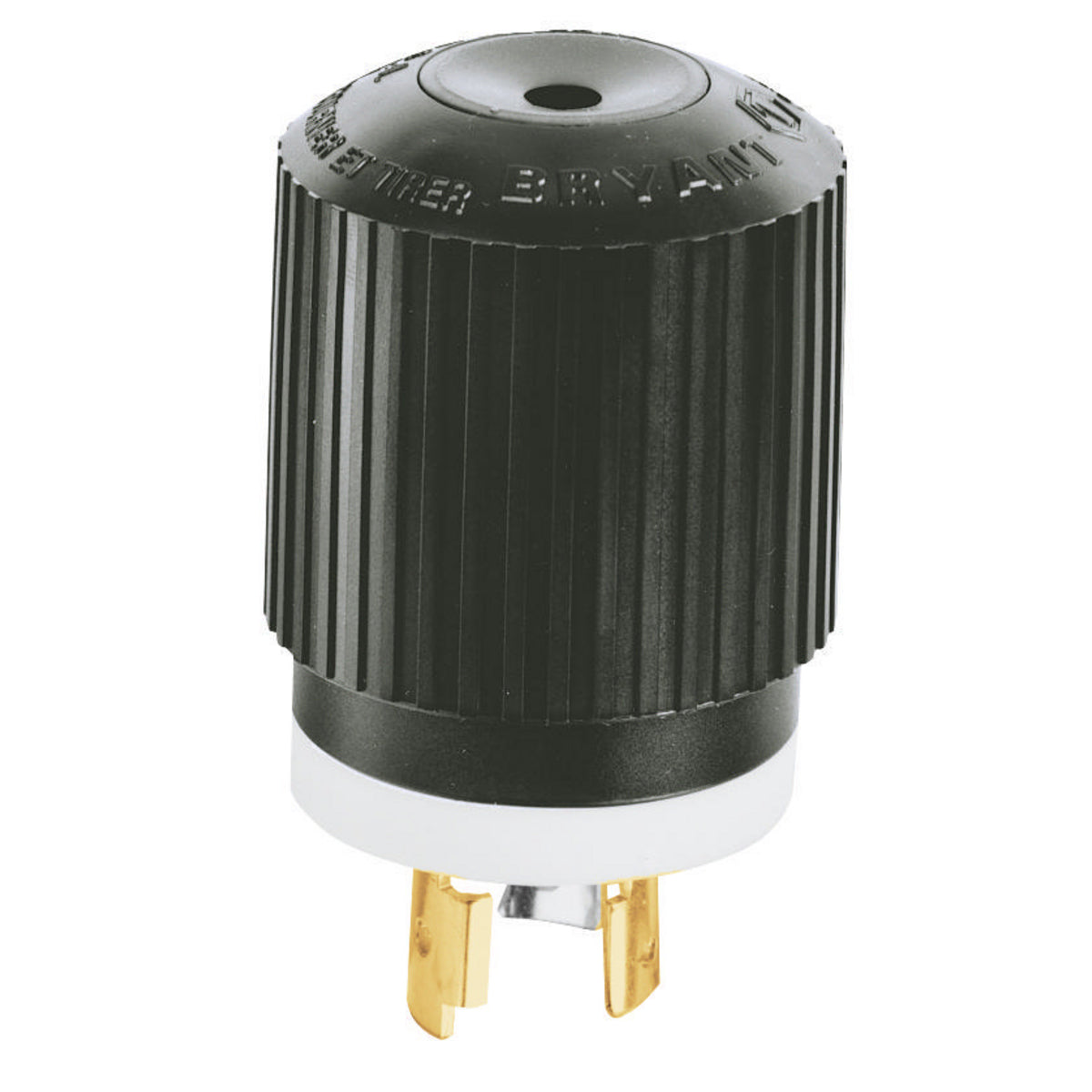

Bryant 71130NP Locking Plug Nm L11-30P

Product Description

The BRYANT 71130NP is an industrial male locking plug. Rated at 30A 3-Phase Delta 250V AC, this 3-pole, 3-wire non-grounding plug features screw terminals and a wide-rib, non-slip hand grip. The configuration-specific plug face prevents contaminant infiltration, and the internal Triple Gripper cord grip ensures secure cord retention.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

Industrial male locking plug with secure cord retention and contaminant protection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71130NP
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 71130NP
• Application: Extra Heavy Duty Industrial
• Color: Black, White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786693821
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Three Phase
• Voltage Rating: 3 Phase 250 VAC
• Voltage Rating Description: 3 Phase 250 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L11-30P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Brand: Bryant
• MPN: 71130NP*
• Country of Origin: Mexico
• Wattage: 7.5 kW
• Cord Diameter: 0.300-0.950 in
