Bryant 71120FR Flush Receptacle Nma L11-20R

Product Description

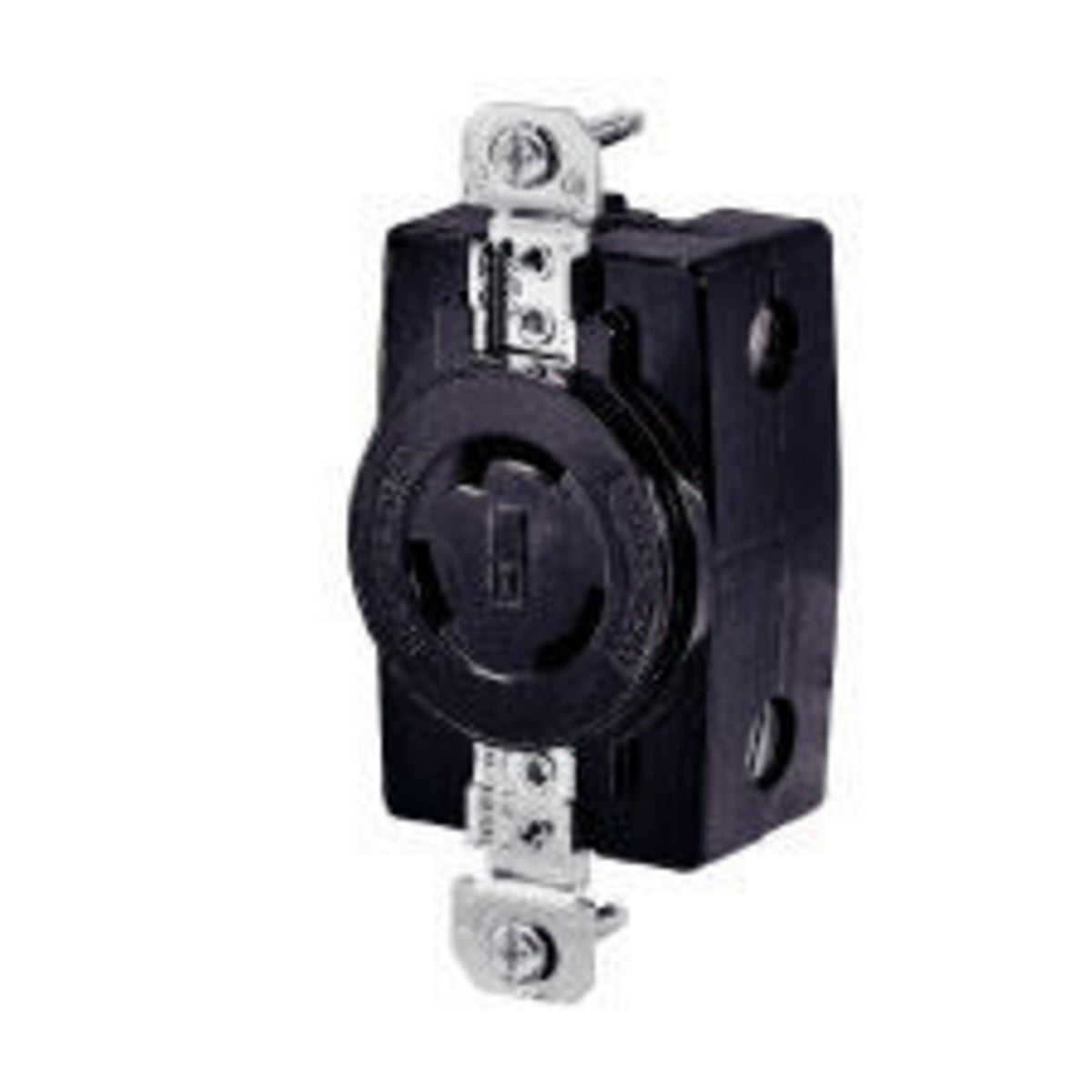

The Bryant 71120FR is a flush receptacle with NEMA rating L11-20R. This industrial grade, flush nylon receptacle operates at 20A 3-Phase Delta 250V AC, and features a 3-pole 3-wire non-grounding configuration with screw terminals. Ideal for heavy-duty industrial applications, it ensures secure and reliable power connections.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction and secure wiring for demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71120FR
• Country of Origin: US

Technical Specifications

• Catalog Number: 71120FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786693333
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 3 Phase 250 VAC
• Voltage Rating Description: 3 Phase 250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L11-20R
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• Application: Extra Heavy Duty Industrial Specification Grade
• Wattage: 5,000 W
• Description - Long: Locking Devices, Industrial, Flush Nylon Receptacle, 20A 3-Phase Delta 250V AC, 3-Pole 3-Wire Non-Grounding, L11-20R, Screw Terminal, Black/White.
• Description - Short: Locking Devices, Industrial, Flush Receptacle, 20A 3-Phase Delta 250V AC, 3-Pole 3-Wire Non-Grounding, L11-20R, Screw Terminal, Black
• FV_Current/Amperage Rating Description: 20 Amp
• FV_Voltage Rating Description: 3 Phase 250V AC
• Product Name: 71120FR
• Mounting Style: Flush
• Number of Phases: 1
• Plate Design: Single Outlet
• Suitable For: Interior, Wall
• Current Type: AC
• Number in Pack: 1
• Model: 71120FR
• Number of Outlets: 1
• Resistance Properties: Impact Resistant
• Country of Origin: China
